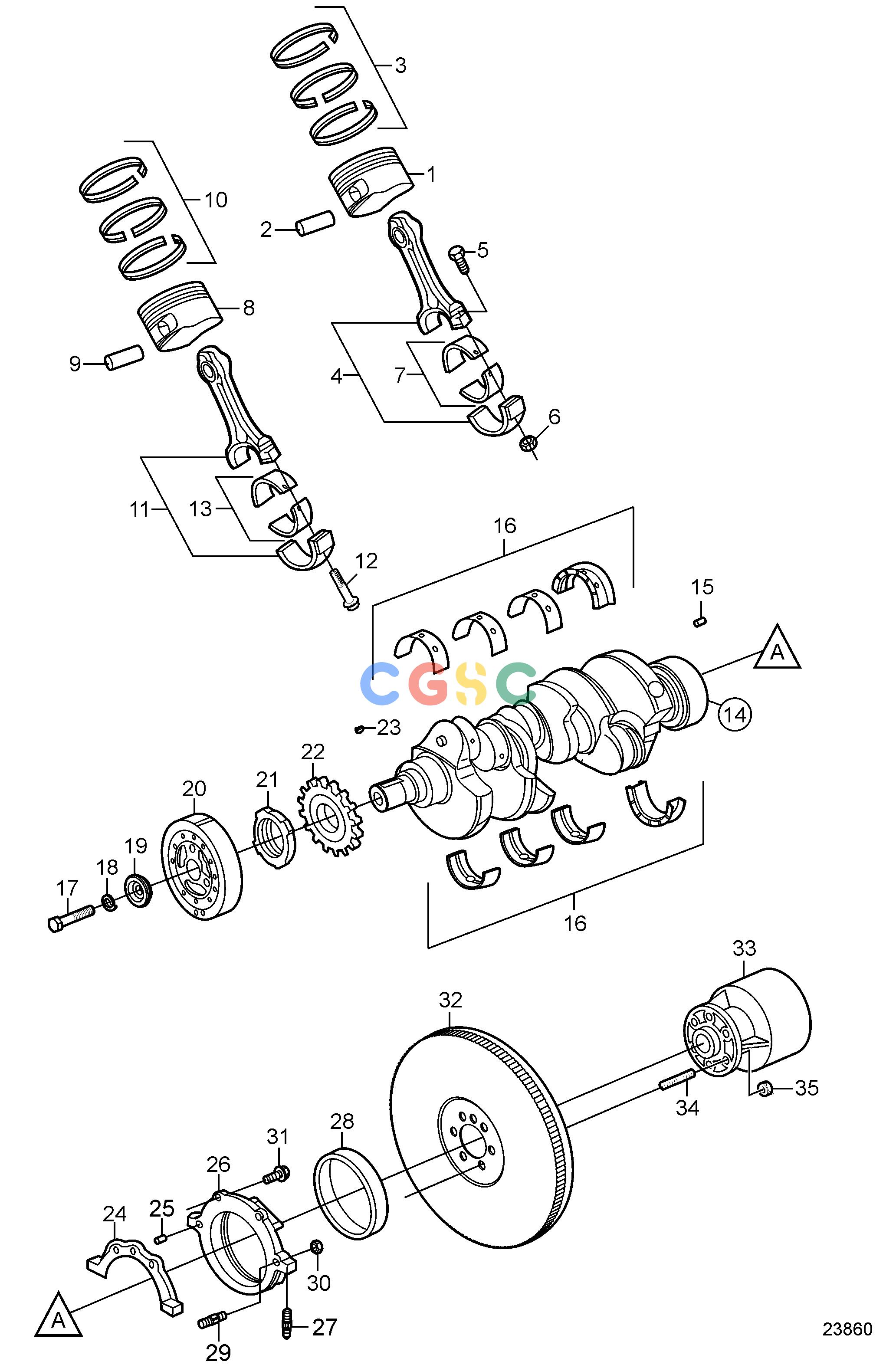

沃尔沃零件查询4.3GXi-F; 4.3GXi-FF; 4.3OSi-F; 4.3OSi-FFEngineCrankshaft and Related PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3855742
|
[6] |
Piston
|
other
|
| 1. |
3855743
|
[6] |
Piston
|
O.S=0,50mm
|
| 2. |
|
|
|
Not sold separately
|
| 3. |
3855740
|
[6] |
Piston ring
|
other
|
| 3. |
3855741
|
[6] |
Piston ring
|
O.S=0,50mm
|
| 4. |
3854173
|
[6] |
Connecting rod
|
Earlier production version.
|
| 5. |
3853179
|
[12] |
Bolt
|
|
| 6. |
3853413
|
[12] |
Nut
|
|
| 7. |
3854955
|
[6] |
Bearing
|
|
| 8. |
21179952
|
[6] |
Piston
|
other
|
| 9. |
|
|
|
Not sold separately
|
| 10. |
21179959
|
[6] |
Piston ring kit
|
other
|
| 11. |
21179974
|
[6] |
Connecting rod
|
|
| 12. |
|
|
|
Part not sold
|
| 13. |
21179992
|
[6] |
Bearing kit
|
|
| 14. |
3858693
|
[1] |
Crankshaft
|
|
| 15. |
3855969
|
[1] |
Pin
|
|
| 16. |
3859025
|
[1] |
Kit
|
other
|
| 17. |
949518
|
[1] |
Hexagon screw
|
|
| 18. |
3852046
|
[1] |
Tab washer
|
|
| 19. |
3858177
|
[1] |
Washer
|
|
| 20. |
3859022
|
[1] |
Vibration damper
|
|
| 21. |
21212915
|
[1] |
Ring
|
|
| 22. |
|
|
|
See ''Camshaft and Valve Train'' section
|
| 23. |
3859024
|
[2] |
Woodruff key
|
|
| 24. |
3852656
|
[1] |
Gasket
|
|
| 25. |
3856140
|
[1] |
Pin
|
|
| 26. |
3858695
|
[1] |
Housing
|
|
| 27. |
3857718
|
[2] |
Stud
|
|
| 28. |
3858698
|
[1] |
Seal
|
|
| 29. |
3859027
|
[1] |
Stud
|
|
| 30. |
3853206
|
[1] |
Nut
|
|
| 31. |
3853203
|
[2] |
Bolt
|
L=.875'' (22,2mm)
|
| 31. |
3853204
|
[1] |
Bolt
|
L=1.75'' (44,5mm)
|
| 32. |
3858694
|
[1] |
Flywheel
|
|
| 32. |
3855970
|
[1] |
Gear
|
|
| 33. |
3858437
|
[1] |
Rubber coupling
|
|
| 34. |
3853274
|
[6] |
Stud
|
|
| 35. |
3853273
|
[6] |
Nut
|
|
