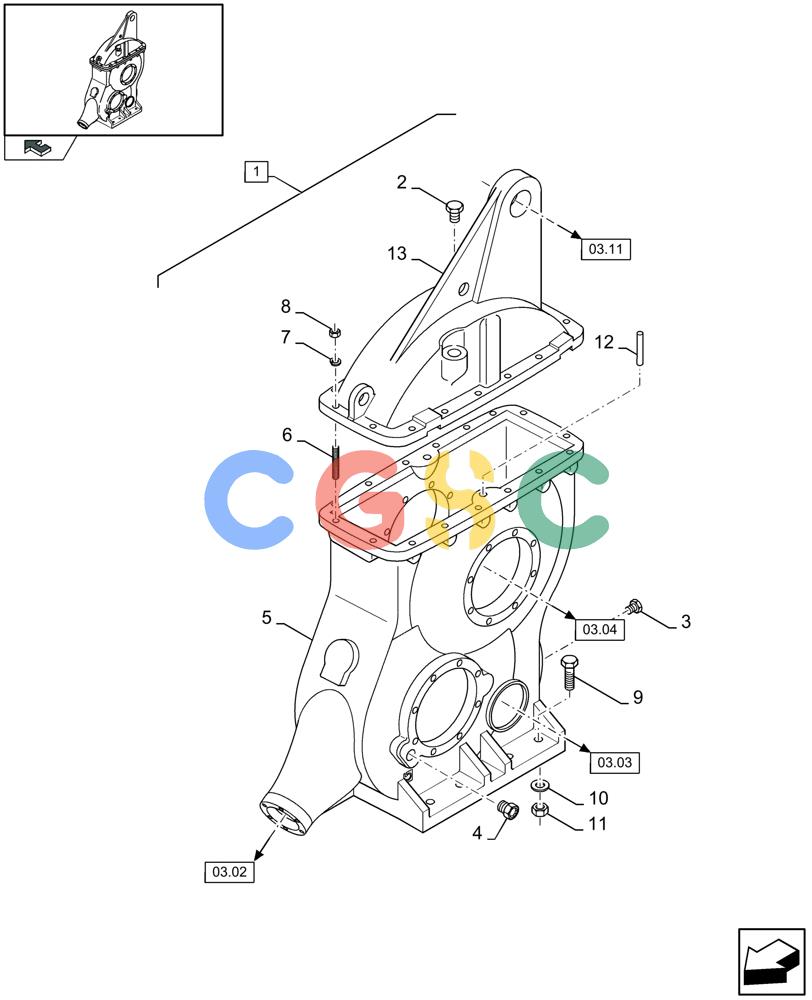

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (03.01[01]) - MAIN GEARBOX, HOUSING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87531435
|
[1] |
GEARBOX
|
ZED
Incl. figs. 03.01 to 03.05
|
| . . |
87531435R
|
[1] |
REMAN-GEARBOX
|
ZED
LB333P, LB333R, LB333S, All Serial Range: 03.01-03.05 (9/08-)
|
| . . |
87531435C
|
[1] |
CORE-GEARBOX
|
ZED
Return Number
|
| 2. |
84074435
|
[1] |
BREATHER
|
ZED
M24 x 2
|
| 3. |
84074433
|
[1] |
PLUG
|
ZED
Incl Washer, M24 x 2
|
| 4. |
84074434
|
[1] |
INDICATOR
|
ZED
M24 x 2
|
| 5. |
87718404
|
[1] |
HOUSING
|
ZED
|
| 6. |
84074461
|
[17] |
STUD,M14 x 68mm, Cl 12.9
|
ZED
|
| 7. |
140030
|
[17] |
LOCK WASHER,M14
|
ZED
Superseded by part number: 80140047
|
| 8. |
10719411
|
[17] |
NUT,M14 x 2, Cl 8
|
ZED
|
| 9. |
89837787
|
[8] |
SCREW
|
ZED
M24 x 200 Superseded by part number: 9837787
|
| 10. |
89818872
|
[8] |
LOCK WASHER
|
ZED
25 MM Superseded by part number: 9818872
|
| 11. |
89837788
|
[8] |
NUT
|
ZED
M24 Superseded by part number: 9837788
|
| 12. |
84000778
|
[2] |
SPINDLE
|
ZED
Superseded by part number: 944004907
|
| 13. |
84074444
|
[1] |
HOUSING
|
ZED
|
