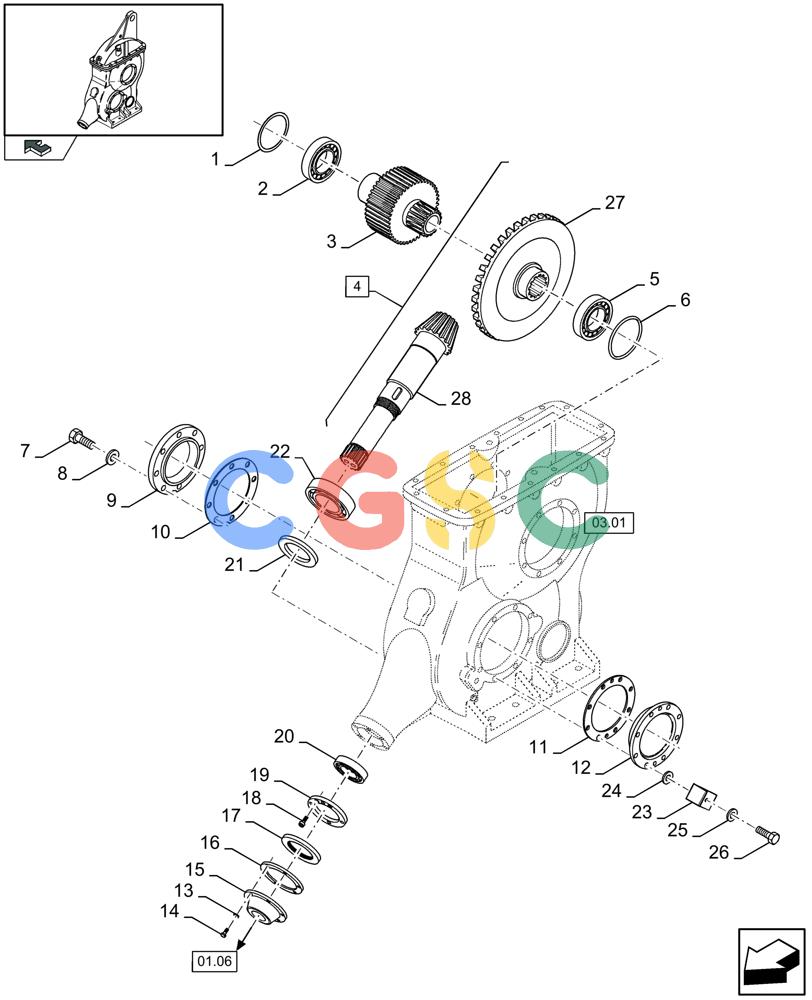

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (03.02[01]) - MAIN GEARBOX, SHAFT TO FLYWHEEL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
190 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84074471
|
[1] |
SET OF RINGS
|
ZED
|
| 2. |
84000818
|
[1] |
ROLLER BEARING
|
ZED
Superseded by part number: 26800090
|
| 3. |
84074446
|
[1] |
GEAR
|
ZED
|
| 4. |
84074483
|
[1] |
BEVEL GEAR
|
ZED
KIT
|
| 5. |
84000813
|
[1] |
ROLLER BEARING
|
ZED
Superseded by part number: 24903750
|
| 6. |
84074480
|
[1] |
O-RING
|
ZED
|
| 7. |
300389
|
[8] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 8. |
412123
|
[8] |
LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk
|
NH
|
| 9. |
84074441
|
[1] |
COVER
|
ZED
|
| 10. |
84074455
|
[1] |
GASKET
|
ZED
|
| 11. |
84074467
|
[1] |
SHIM KIT
|
ZED
|
| 12. |
84074459
|
[1] |
COVER
|
ZED
|
| 13. |
80681
|
[6] |
LOCK NUT,5/16"
|
NH
8 MM Superseded by part number: 83990583
|
| 14. |
43127
|
[6] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 15. |
84074442
|
[1] |
COVER
|
ZED
|
| 16. |
84074453
|
[1] |
GASKET,0.2mm Thk
|
ZED
|
| 17. |
536079
|
[1] |
OIL SEAL
|
ZED
|
| 18. |
84074460
|
[2] |
SCREW
|
ZED
M8 x 16
|
| 19. |
84074464
|
[1] |
RING NUT
|
ZED
M70
|
| 20. |
26800020
|
[1] |
TAPERED BEARING,70mm ID x 125mm OD x 26.25mm W
|
ZED
|
| 21. |
84074469
|
[1] |
SHIM KIT
|
ZED
|
| 22. |
9839403
|
[1] |
TAPERED BEARING,75mm ID x 160mm OD x 58mm W
|
ZED
|
| 23. |
84320570
|
[1] |
INDICATOR
|
ZED
, Serial Range: -C719
|
| 23. |
84149323
|
[1] |
MARKER
|
ZED
, Start Serial: D720
|
| 24. |
394630
|
[2] |
WASHER,13mm ID x 28mm OD x 4mm Thk
|
NH
Superseded by part number: 86625256
|
| 25. |
84074465
|
[8] |
WASHER
|
ZED
|
| 26. |
84021936
|
[6] |
HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 10.9
|
ZED
M12 x 30 Superseded by part number: 86512142
|
| 27. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
|
