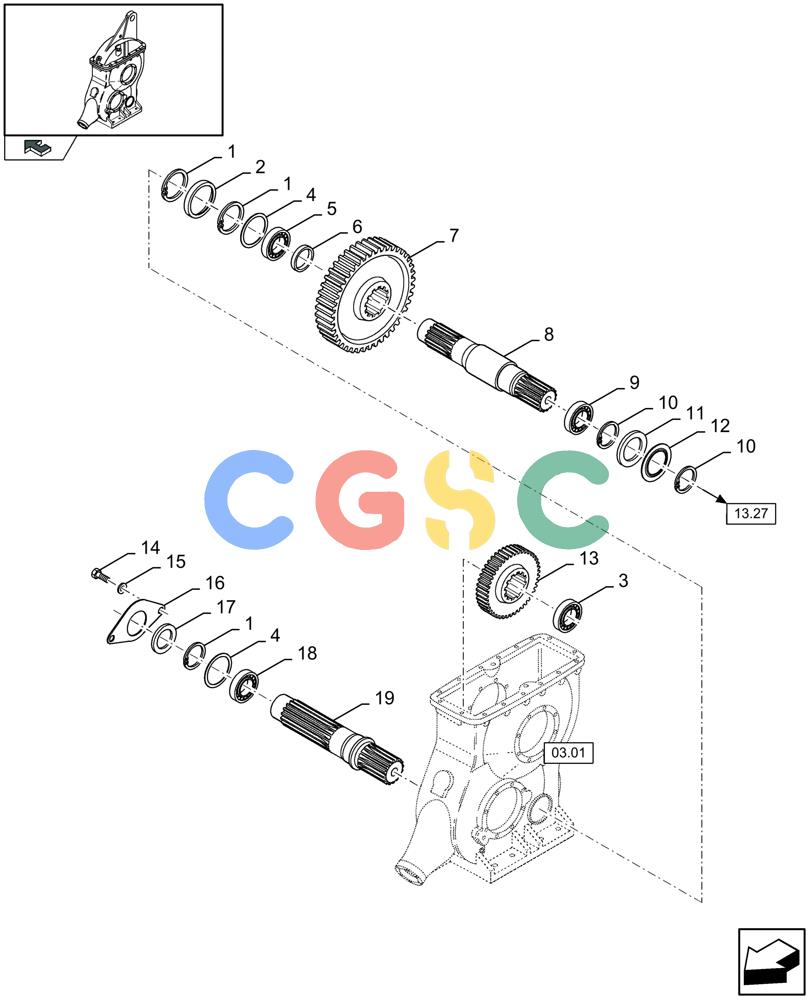

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (03.03[01]) - MAIN GEARBOX, SHAFT SHUTTLE FEEDER GEARBOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
758 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
370021
|
[3] |
SNAP RING,M85 x 3mm Thk, Internal
|
NH
|
| 2. |
84074481
|
[1] |
COVER
|
ZED
|
| 3. |
84074473
|
[1] |
BALL BEARING
|
ZED
|
| 4. |
84074468
|
[1] |
SET OF RINGS
|
ZED
|
| 5. |
37198
|
[1] |
BALL BEARING,1.7717" ID x 3.3465" OD x 0.7487"
|
NH
Superseded by part number: ST202
|
| 6. |
84074456
|
[1] |
SPACER
|
ZED
|
| 7. |
84074447
|
[1] |
GEAR
|
ZED
|
| 8. |
84074450
|
[1] |
SHAFT
|
ZED
|
| 9. |
9825886
|
[1] |
BALL BEARING,55 mm ID x 90 mm OD x 18 mm
|
MOD
Superseded by part number: 87591494
|
| 10. |
370013
|
[2] |
SNAP RING,M90 x 3mm Thk, Internal
|
NH
|
| 11. |
9839405
|
[1] |
SEAL
|
ZED
Superseded by part number: 920018133
|
| 12. |
84074476
|
[1] |
PLATE
|
ZED
|
| 13. |
84074445
|
[1] |
GEAR
|
ZED
|
| 14. |
43151
|
[2] |
BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 15. |
412123
|
[1] |
LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk
|
NH
|
| 16. |
84074477
|
[1] |
COVER
|
ZED
|
| 17. |
84074478
|
[1] |
SEALING RING
|
ZED
SEALRING
|
| 18. |
84074474
|
[1] |
BALL BEARING
|
ZED
|
| 19. |
84320871
|
[1] |
SHAFT
|
ZED
|
