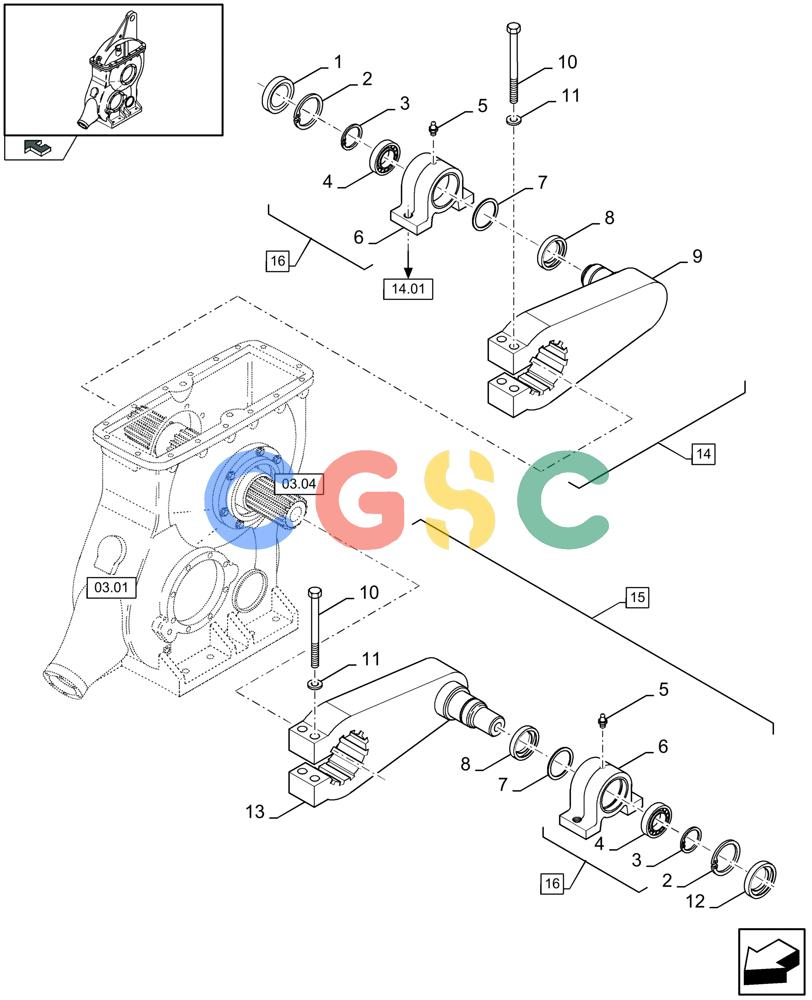

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (03.05[01]) - MAIN GEARBOX, ARM TO PLUNGER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
631 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84074482
|
[1] |
CAP
|
ZED
|
| 2. |
80370026
|
[2] |
CIRCLIP
|
ZED
Superseded by part number: S301572
|
| 3. |
84074466
|
[2] |
CIRCLIP
|
ZED
|
| 4. |
89516384
|
[2] |
BEARING ASSY
|
ZED
Superseded by part number: 9516384
|
| 5. |
80300919
|
[2] |
LUBE NIPPLE,M8 x 1
|
ZED
Superseded by part number: 84447449
|
| 6. |
NSS
|
[2] |
NOT SOLD SEPARAT
|
CON
|
| 7. |
84074472
|
[2] |
SHIM,85.3mm ID x 99.8mm OD x 1mm Thk
|
ZED
|
| 8. |
84817177
|
[2] |
RING
|
ZED
|
| 9. |
84800771
|
[1] |
ARM
|
ZED
RH
|
| 10. |
84800770
|
[4] |
BOLT,Hex, M27 x 2 x 190mm, Cl 12.9
|
ZED
M27 x 190
|
| 11. |
84819390
|
[4] |
WASHER
|
ZED
27 MM
|
| 12. |
84074479
|
[1] |
SEALING RING
|
ZED
SEALRING
|
| 13. |
84800772
|
[1] |
ARM
|
ZED
LH
|
| 14. |
84800773
|
[1] |
ARM
|
ZED
RH (1 to 11)
|
| 15. |
84800774
|
[1] |
ARM
|
ZED
LH (2 to 8, 10 to 13)
|
| 16. |
84587348
|
[2] |
HUB
|
ZED
(3,4,6) Superseded by part number: 84074452
|
