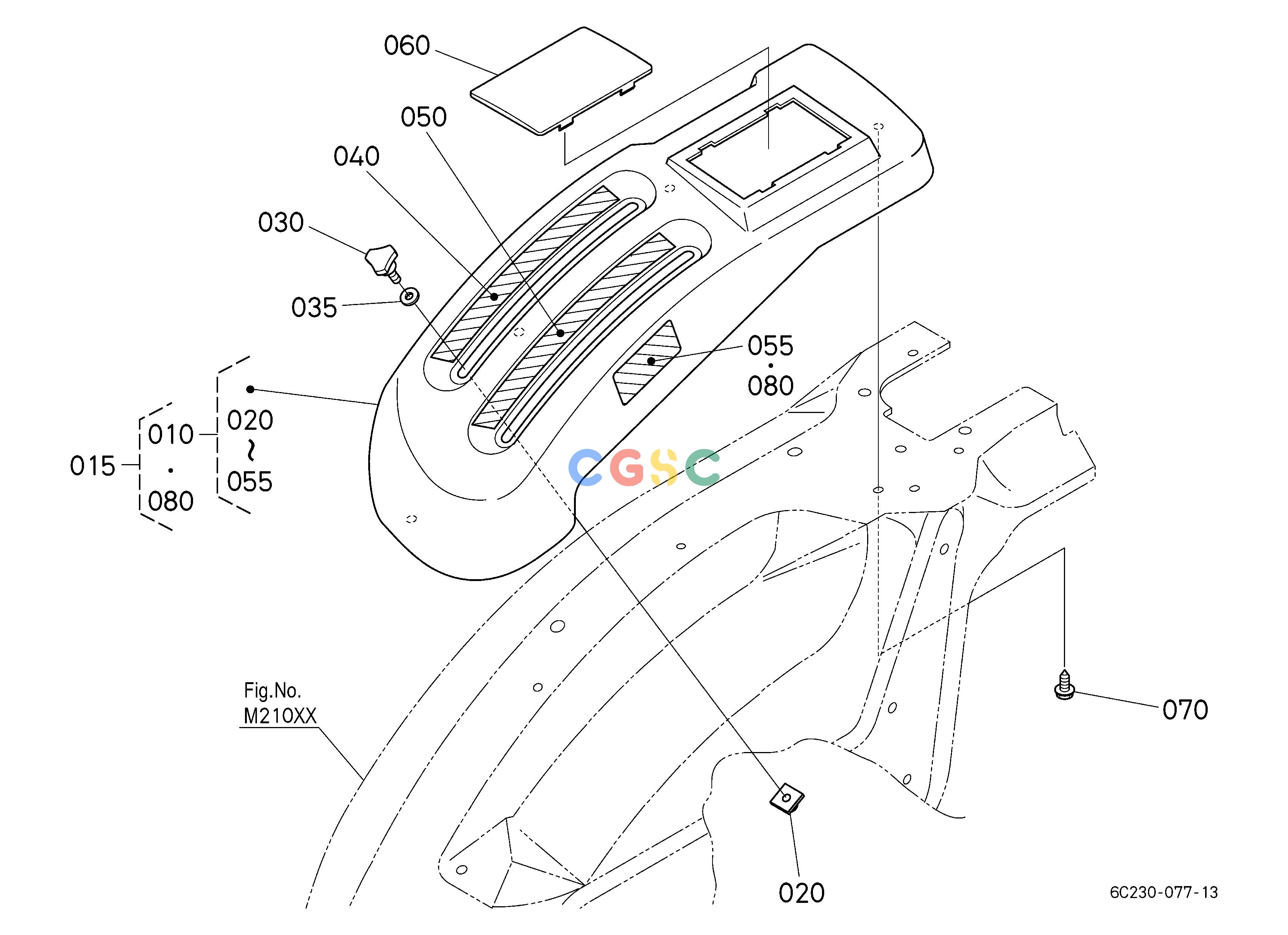

久保田零件查询M20902 LEVER GUIDE RH HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
312 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20099750
|
[1] |
KIT GUIDE,LEVER RH
|
1.2100(lbs); 0.550
|
| 015. |
6C20099700
|
[1] |
KIT GUIDE,LEVER RH
|
1.4036(lbs); 0.638
|
| 020. |
3741052380
|
[1] |
STOPPER
|
0.0220(lbs); 0.010
|
| 030. |
3741052610
|
[1] |
SCREW(KNOB)
|
0.0330(lbs); 0.015
|
| 035. |
3135118860
|
[1] |
WASHER
|
0.0044(lbs); 0.002
|
| 040. |
6C20047340
|
[1] |
LABEL,CRUISE CONTROL
|
0.0066(lbs); 0.003
|
| 050. |
6C20047350
|
[1] |
LABEL,POSITION
|
0.0066(lbs); 0.003
|
| 055. |
6C20047510
|
[1] |
LABEL,SAFETY START
|
0.0022(lbs); 0.001
|
| 060. |
6C20052132
|
[1] |
COVER,CONTROLLER
|
0.0660(lbs); 0.030
|
| 070. |
6A54054140
|
[4] |
SCREW,TAPPING
|
0.0110(lbs); 0.005
|
| 080. |
6C20147512
|
[1] |
LABEL,SAFETY START
|
0.0044(lbs); 0.002
|
