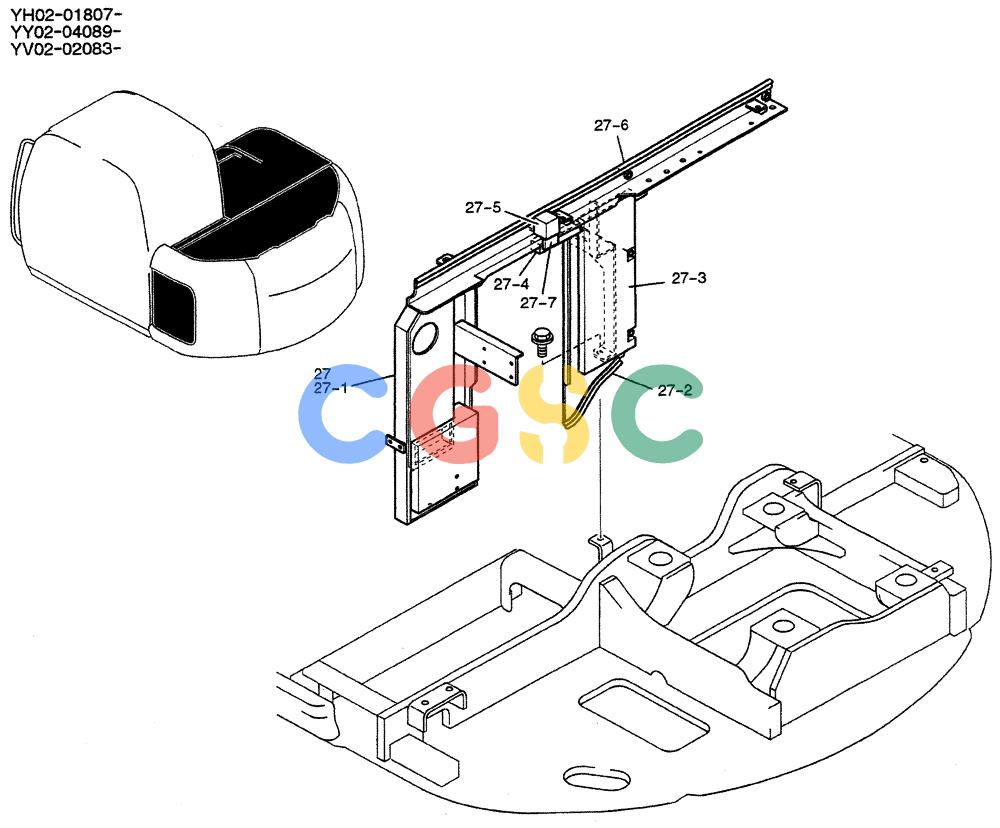

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-044) - GUARD INSTAL, P/N YY21C00010F9 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
857 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY21C00010F9 | [1] | GUARD ASSY. | KOB |
| 27. | YY21C01149F1 | [1] | BRACKET | KOBASSY |
| 27-1. | YY21C01148P1 | [1] | BRACKET | KOB |
| 27-2. | YT21C01163DC | [1] | WEATHERSTRIP | KOB |
| 27-3. | YY21C01143P1 | [1] | INDICATOR | KOB |
| 27-4. | YY21C01152D1 | [1] | RUBBER | KOB |
| 27-5. | YY21C01153D1 | [1] | RUBBER | KOB |
| 27-6. | YT21C01164D8 | [1] | WEATHERSTRIP | KOB |
| 27-7. | YY21C01154D1 | [1] | RUBBER | KOB |
