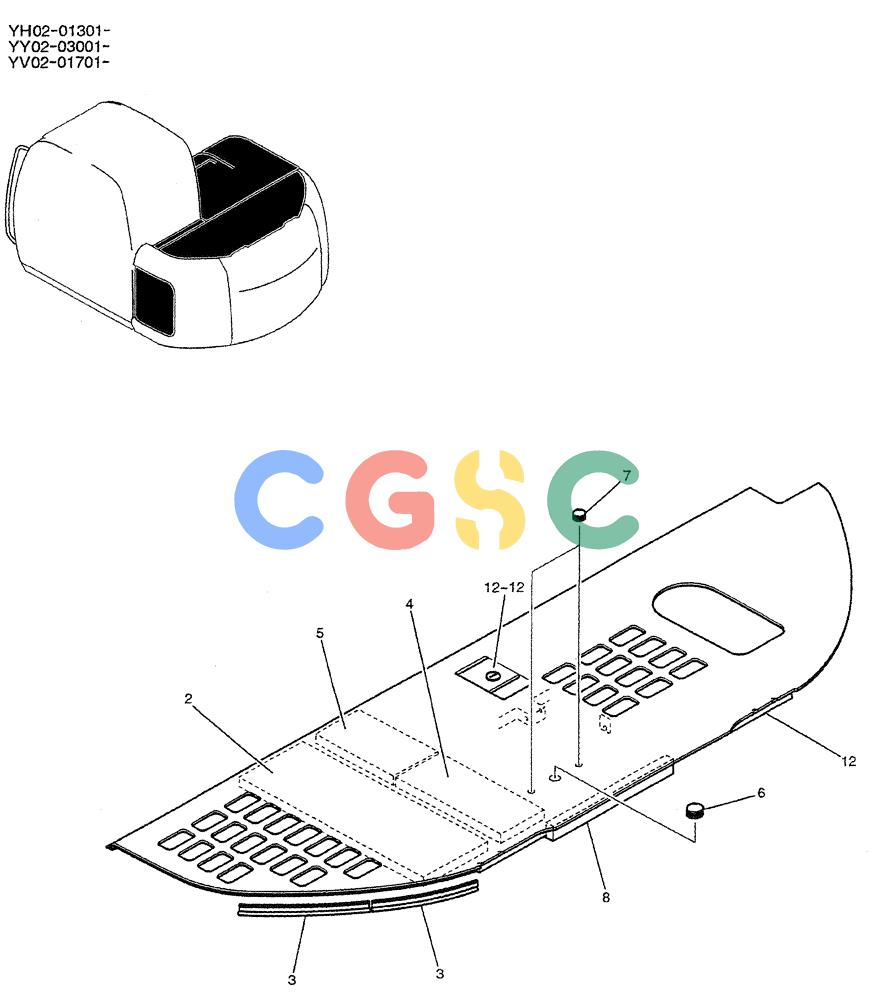

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-047) - BONNET ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
832 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY22C00004F5 | [1] | COVER ASSY | KOB |
| 2. | YY22C01006P1 | [1] | INDICATOR | KOB |
| 3. | YT21C01163DD | [2] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 4. | YY22C01007P1 | [1] | INDICATOR | KOB |
| 5. | YY22C01008P1 | [1] | INDICATOR | KOB |
| 6. | 2420R603D4 | [1] | RUBBER | KOB |
| 7. | 2420Z1386 | [2] | GROMMET | KOB |
| 8. | YX22C01011D1 | [1] | RUBBER | KOB |
| 12. | YY22C01025P1 | [1] | COVER | KOBASSY, Serial Range: YH02-01301-YH02-02096 Superseded by part number: YY22C01025P2 |
| 12. | YY22C01025P2 | [1] | COVER | KOBASSY, Start Serial: YH03-02097- |
| 12-12. | 2427R703F1 | [1] | LOCK | KOB, Serial Range: YH02-01301-YH02-02096 Superseded by part number: 2421R175F2 |
| 12-12. | YN21C02224P1 | [1] | LOCK | KOB, Start Serial: YH03-02097- Superseded by part number: YN21C02225P1 |
