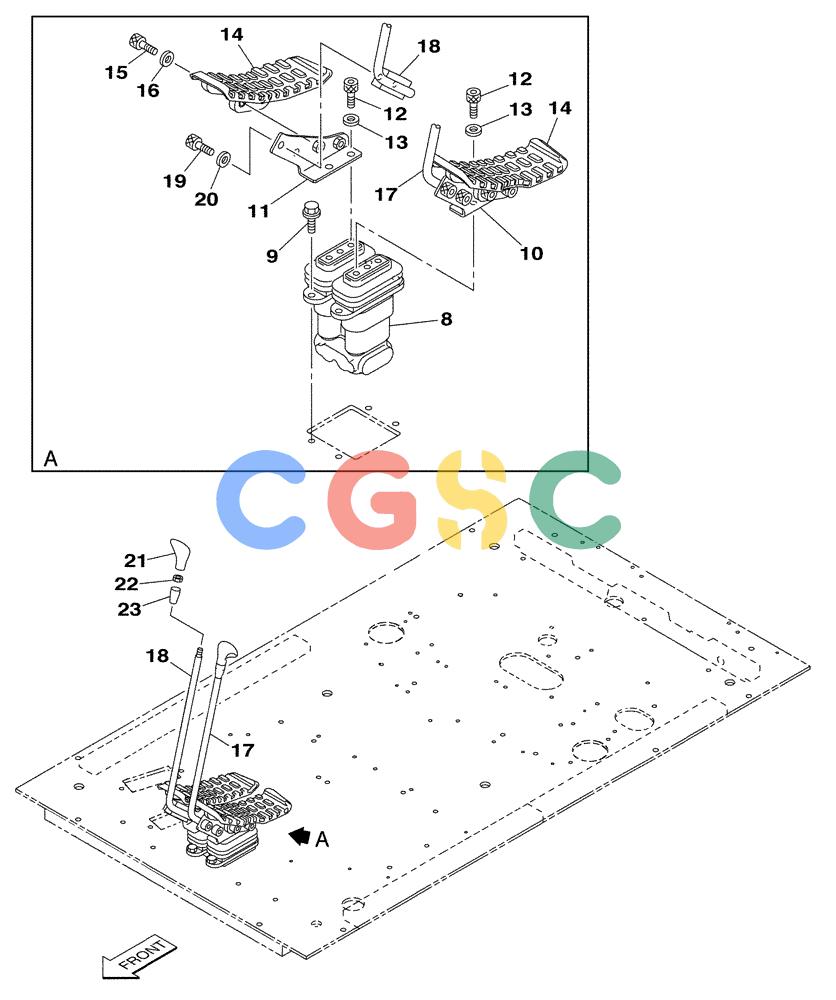

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-037-00[01]) - TRAVEL CONTROL - OPERATORS COMPARTMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
844 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8. | KTJ2034 | [1] | CONTROL BLOCK | SUM Superseded by part number: KHJ19280 |
| 9. | 166052A1 | [4] | BOLT | SUM Superseded by part number: 11106231 |
| 10. | KHJ1625 | [1] | BRACKET | SUM Superseded by part number: KHJ1625B1 |
| 11. | KHJ1626 | [1] | BRACKET | SUM |
| 12. | 165404A1 | [4] | BOLT,Hex Skt, M10 x 20mm | SUM |
| 13. | 150604A1 | [4] | WASHER | SUM |
| 14. | KHJ1629 | [2] | PEDAL | SUM |
| 15. | KHJ1820 | [4] | BOLT,Hex Skt Hd | SUM |
| 17. | KHJ1627 | [1] | LEVER | SUM |
| 18. | KHJ1628 | [1] | LEVER | SUM |
| 21. | KHJ1633 | [2] | KNOB | SUM |
| 22. | 150373A1 | [2] | NUT | SUMM12; 12.9 |
| 23. | KHJ1777 | [2] | CAP | SUM |
