神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-049) - COVER ASSY, UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
126 次

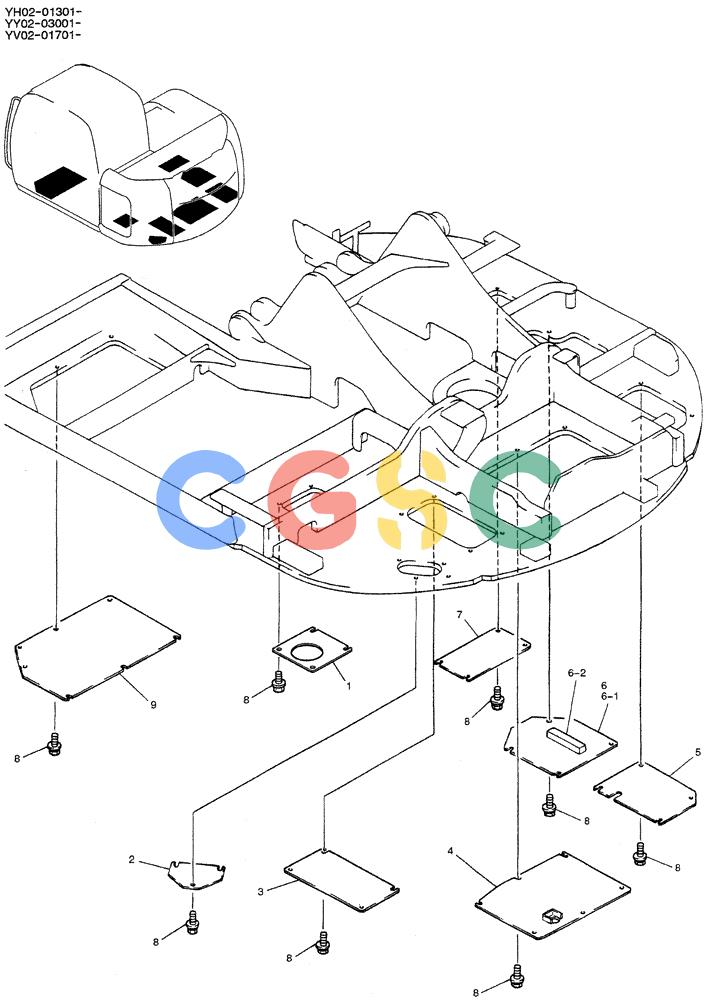

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY24C00005F1 | [1] | COVER ASSY | KOBUNDER |
| 1. | YX24C01017P1 | [1] | COVER | KOB |
| 2. | YX24C01002P1 | [1] | COVER | KOB |
| 3. | YX24C01003P1 | [1] | COVER | KOB |
| 4. | YX24C01016P1 | [1] | COVER | KOB |
| 5. | YX24C01005P1 | [1] | COVER | KOB |
| 6. | YX24C01014F1 | [1] | COVER ASSY | KOB |
| 6-1. | YX24C01006P1 | [1] | COVER | KOB |
| 6-2. | YX24C01013D1 | [1] | RUBBER | KOB |
| 7. | YX24C01007P1 | [1] | COVER | KOB |
| 8. | ZM32C12025 | [37] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| 9. | YT24C01026P1 | [1] | COVER | KOB |
