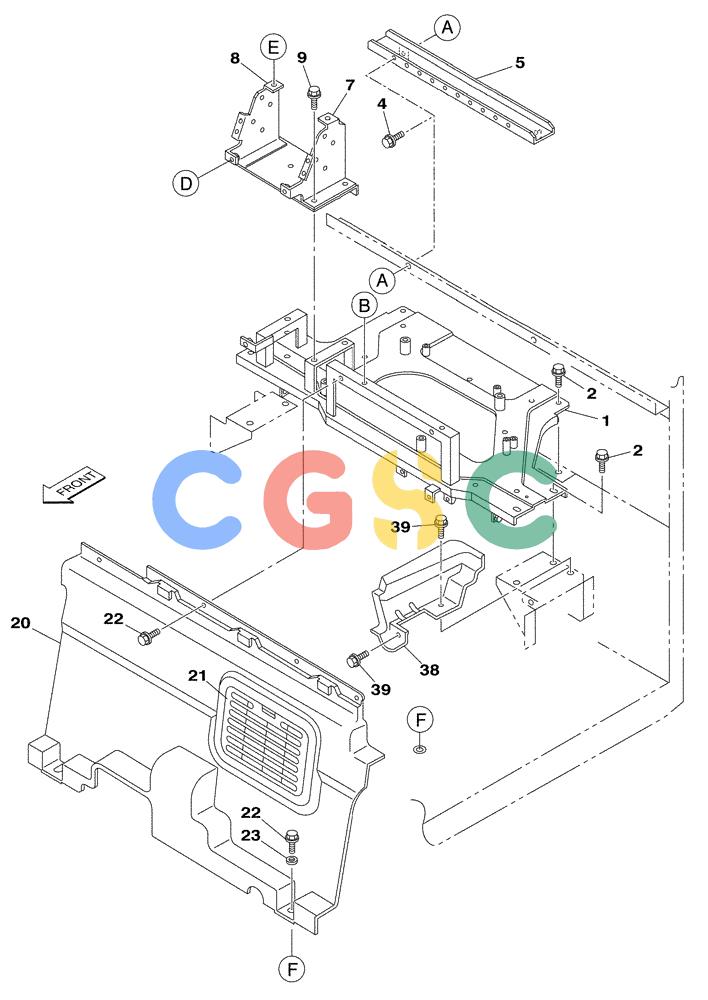

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-041-00[01]) - OPERATORS COMPARTMENT - CAB AIR CONDITIONING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
559 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KHN2227 | [1] | BRACKET | SUM |
| 2. | 166350A1 | [6] | BOLT | SUM |
| 6. | 166345A1 | [2] | BOLT | SUM Superseded by part number: 105R008Y016R |
| 7. | KHN2331 | [1] | BRACKET | SUM |
| 8. | KHN2330 | [1] | BRACKET | SUM |
| 20. | KHN3594 | [1] | PADDING | SUM |
| 21. | KHN2241 | [1] | COVER | SUM |
| 22. | KHN2309 | [5] | BOLT,Spcl | SUM |
| 23. | KHN2312 | [2] | WASHER | SUM |
| 38. | KHN2395 | [1] | PADDING | SUM |
| 39. | KHN2132 | [2] | BOLT,Hex Flg Hd, M6 x 16 | SUM |
