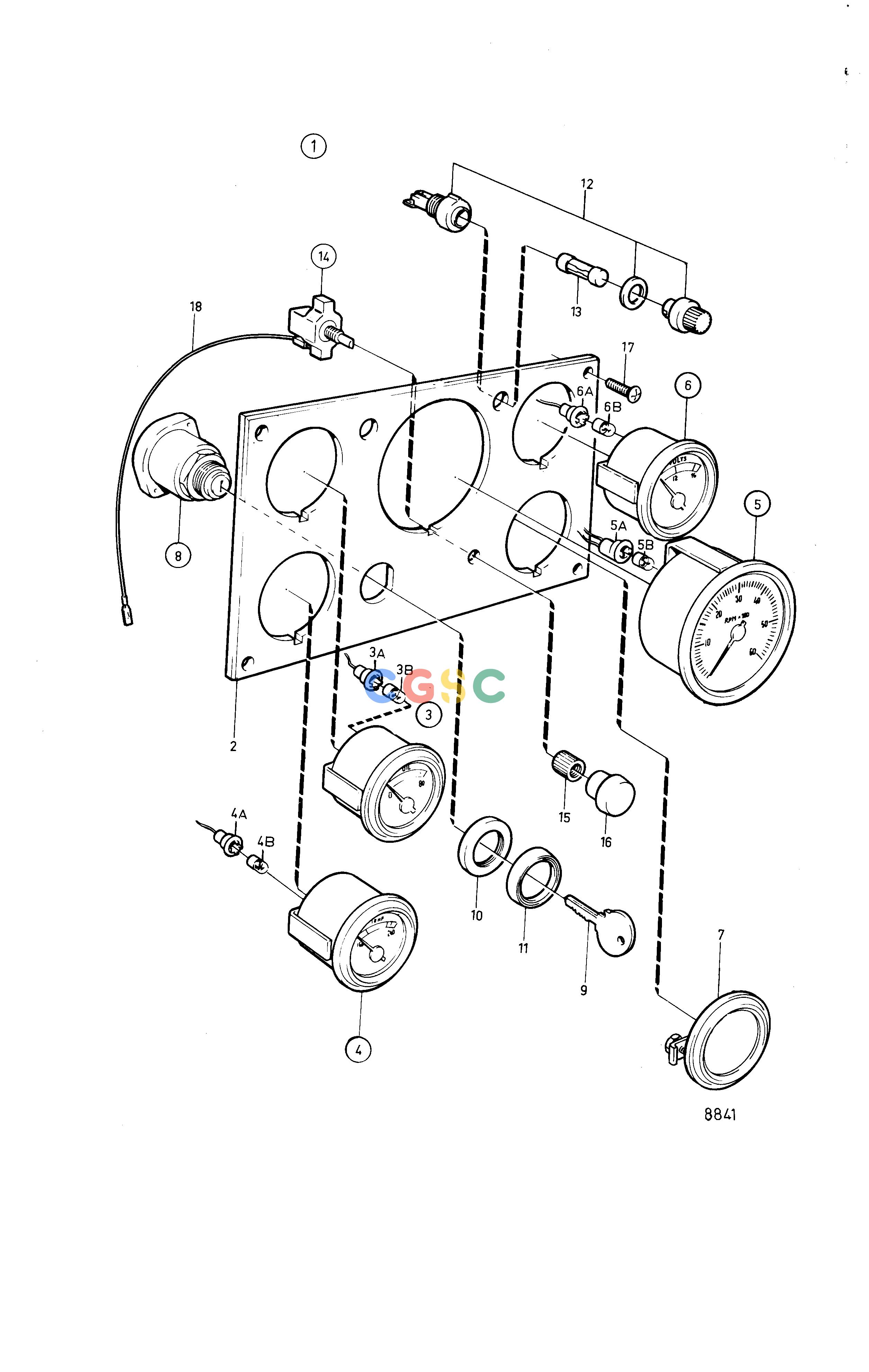

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Electrical SystemInstrument Panel: 856671EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
516 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
856671
|
[1] |
Instrument panel
|
|
| 2. |
841075
|
[1] |
Instrument plate
|
|
| 3. |
835655
|
[1] |
Instrument
|
|
| 3A. |
841954
|
[1] |
Bulb socket
|
|
| 3B. |
942571
|
[1] |
Bulb
|
(192451)
|
| 4. |
835654
|
[1] |
Thermometer
|
|
| 4A. |
841954
|
[1] |
Bulb socket
|
|
| 4B. |
942571
|
[1] |
Bulb
|
(192451)
|
| 5. |
841938
|
[1] |
Tachometer
|
|
| 5A. |
841955
|
[1] |
Bulb socket
|
|
| 5B. |
182055
|
[1] |
Bulb
|
|
| 6. |
835656
|
[1] |
Voltmeter
|
|
| 6A. |
841954
|
[1] |
Bulb socket
|
|
| 6B. |
942571
|
[1] |
Bulb
|
(192451)
|
| 7. |
856348
|
[1] |
Cap
|
|
| 8. |
856659
|
[1] |
Starter switch
|
|
| 9. |
3814511
|
[2] |
Key
|
State key code when ordering
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
841073
|
[2] |
Fuse holder
|
|
| 13. |
841518
|
[2] |
Fuse
|
|
| 14. |
875819
|
[1] |
Switch
|
|
| 15. |
843002
|
[1] |
Nut
|
|
| 16. |
837726
|
[1] |
Knob
|
|
| 17. |
944540
|
[4] |
Screw
|
|
| 18. |
7736260_127
|
|
cables and terminals
|
|
