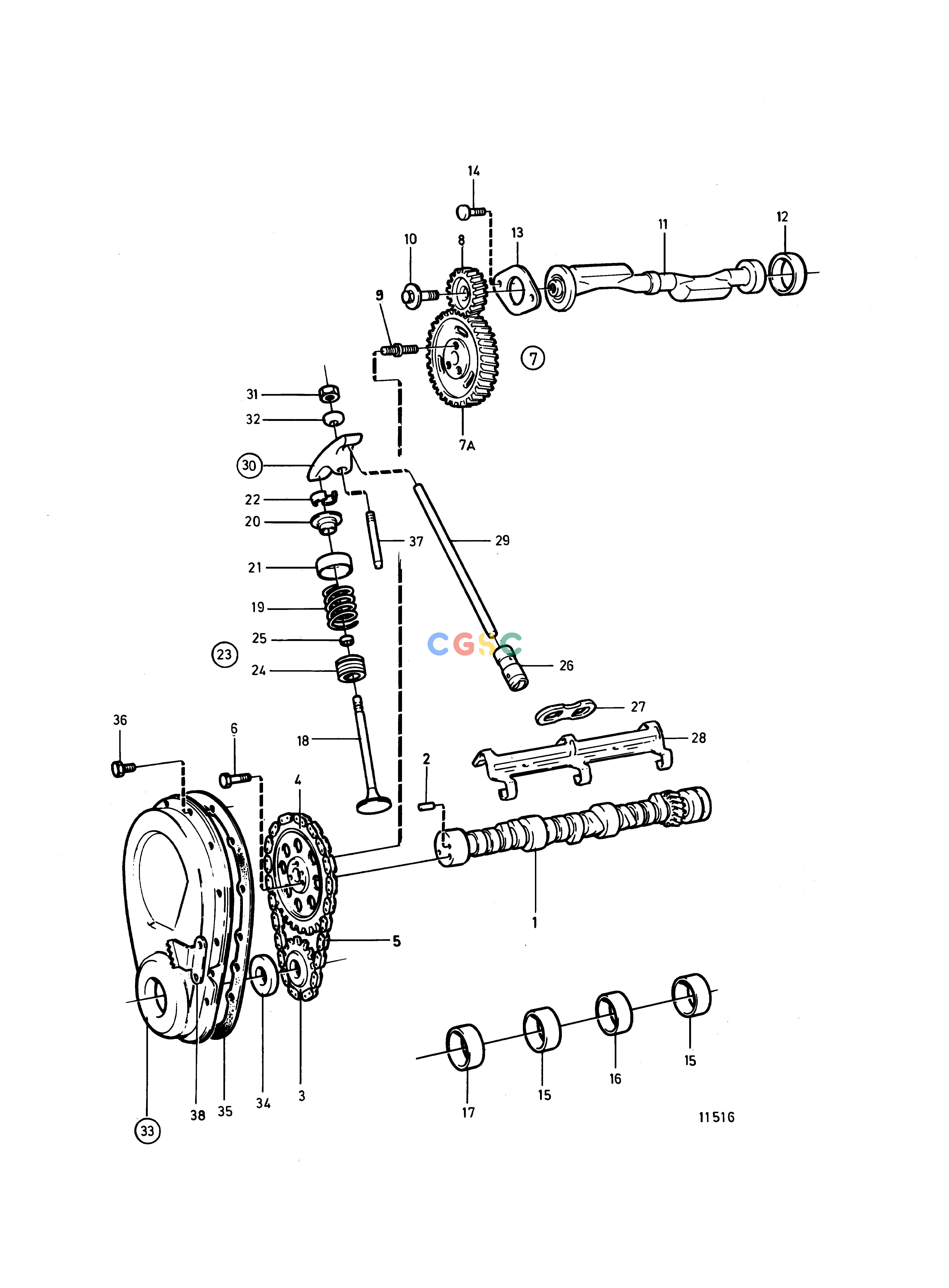

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1EngineCamshaft, Valve Mechanism and Balancer: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
172 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
857576
|
[1] |
Camshaft
|
Included in basic engine, See group 10A
|
| 2. |
835040
|
[1] |
Locating pin
|
|
| 3. |
856069
|
[1] |
Chain gear
|
|
| 4. |
857578
|
[1] |
Chain gear
|
|
| 5. |
856070
|
[1] |
Camshaft chain
|
|
| 6. |
940135
|
[3] |
Hexagon screw
|
|
| 7. |
857585
|
[1] |
Gear
|
|
| 7A. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
857588
|
[1] |
Stud
|
|
| 10. |
857586
|
[1] |
Screw
|
|
| 11. |
857581
|
[1] |
Shaft
|
|
| 12. |
857582
|
[1] |
Bushing
|
|
| 13. |
857583
|
[1] |
Retainer
|
|
| 14. |
856409
|
[2] |
Screw
|
|
| 15. |
841423
|
[2] |
Camshaft bearing
|
|
| 16. |
841424
|
[1] |
Camshaft bearing
|
|
| 17. |
841422
|
[1] |
Camshaft bearing
|
|
| 18. |
856368
|
[6] |
Exhaust valve
|
Std
|
| 18. |
856370
|
[6] |
Exhaust valve
|
Over size 0,015''
|
| 18. |
841882
|
[6] |
Exhaust valve
|
Over size 0,030''
|
| 18. |
841873
|
[6] |
Inlet valve
|
Std
|
| 18. |
841874
|
[6] |
Inlet valve
|
Over size 0,015''
|
| 18. |
841875
|
[6] |
Inlet valve
|
Over size 0,030''
|
| 19. |
835102
|
[12] |
Spring
|
|
| 20. |
855825
|
[6] |
Valve spring washer
|
For exhaust valve.
|
| 20. |
841782
|
[6] |
Valve spring washer
|
|
| 21. |
841781
|
[12] |
Shield
|
|
| 22. |
835401
|
[24] |
Valve collet
|
|
| 23. |
855564
|
[1] |
Sealing kit
|
|
| 24. |
|
|
|
|
| 25. |
|
|
|
|
| 26. |
857237
|
[12] |
Tappet
|
|
| 27. |
857572
|
[6] |
Bracket
|
|
| 28. |
857573
|
[1] |
Retainer
|
|
| 29. |
856396
|
[12] |
Push rod
|
|
| 30. |
856421
|
[12] |
Rocker arm
|
|
| 31. |
857245
|
[12] |
Nut
|
|
| 32. |
841199
|
[12] |
Ball
|
|
| 33. |
857574
|
[1] |
Timing gear casing
|
|
| 34. |
856665
|
[1] |
Sealing ring
|
|
| 35. |
857575
|
[1] |
Gasket
|
|
| 36. |
943629
|
[10] |
Flange screw
|
|
| 37. |
857244
|
[12] |
Stud
|
|
| 37. |
841779
|
[2] |
Stud
|
Over size 0,013''
|
| 38. |
841038
|
[1] |
Setting indicator
|
|
