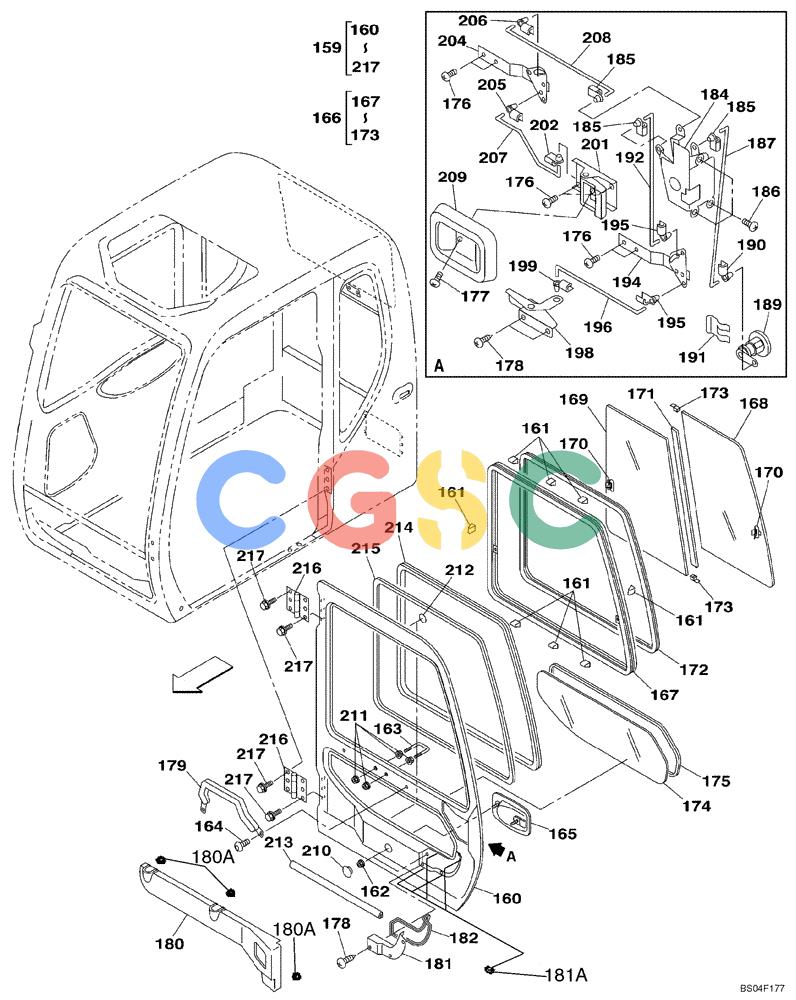

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-069-00[01]) - CAB - CAB DOOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
349 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 159. | KHN3625 | [1] | CABIN DOOR | SUM |
| 161. | KHN3352 | [8] | SPACER | SUM |
| 162. | 161453A1 | [2] | FLANGE NUT | SUM |
| 163. | 159570A1 | [1] | U-BOLT | SUM |
| 164. | 159586A1 | [2] | BOLT,Hex Skt, M10 x 1.5 x 25mm | SUMM10 x 25 x 1,5 |
| 165. | KHN2415 | [1] | HANDLE | SUM |
| 166. | KHN2906 | [1] | WINDOW ASSY | SUM |
| 167. | KHN2815 | [1] | FRAME | SUM |
| 168. | KHN2948 | [1] | GLASS | SUM |
| 169. | KHN2949 | [1] | GLASS | SUM |
| 170. | 162829A1 | [2] | LOCK | SUM |
| 171. | KHN2819 | [1] | SEAL | SUM |
| 172. | KHN2818 | [1] | SEAL, GLASS | SUMSEAL,WINDOW |
| 173. | KHN2820 | [2] | RUBBER BLOCK | SUM |
| 174. | KHN2922 | [1] | GLASS | SUM |
| 175. | KHN2921 | [1] | SEAL | SUMSEAL,WINDOW |
| 176. | KHN2741 | [6] | SCREW,Spcl | SUMM6 x 1 x 16 |
| 177. | KHN2758 | [1] | SCREW,Spcl | SUMM5 x 10 x 0,8 |
| 178. | KHN2773 | [5] | SCREW,Spcl | SUMM6 x 16 |
| 179. | KHN2774 | [1] | HANDLE | SUM |
| 180. | KHN3630 | [1] | PADDING | SUM |
| 180A. | KHN3353 | [1] | COLLAR | SUM |
| 181. | KHN2776 | [1] | PADDING | SUM |
| 181A. | KHN3023 | [5] | SPACER | SUM |
| 182. | KHN2777 | [1] | SEAL | SUM |
| . . | KHN2778 | [1] | LOCK ASSY | SUM |
| 184. | NSS | [1] | NOT SERVICED SEPARATELY | CONLock |
| 186. | KHN2781 | [3] | SCREW,Spcl | SUMM6 x 1 x 16 |
| 187. | KHN2782 | [1] | ROD | SUM |
| . . | KHN2783 | [1] | LOCK ASSY | SUM |
| 190. | KHN2785 | [1] | BALL JOINT | SUMClip Superseded by part number: KHN2783 |
| 191. | KHN2786 | [1] | CLIP,ELECTRICAL | SUMClip Superseded by part number: KHN2783 |
| 192. | KHN2788 | [1] | ROD | SUM |
| . . | KHN2789 | [1] | BRACKET | SUM |
| 196. | KHN2792 | [1] | ROD | SUM |
| . . | KHN2793 | [1] | BRACKET | SUM |
| . . | KHN2796 | [1] | HANDLE | SUM |
| . . | KHN2799 | [1] | BRACKET | SUM |
| 209. | KHN2805 | [1] | DOOR COVER | SUM |
| 210. | KHN2806 | [1] | PLUG | SUM |
| 211. | KHN2808 | [4] | SPECIAL NUT | SUMM10 |
| 212. | KHN2811 | [2] | SEAL | SUM |
| 213. | KHN2812 | [1] | WEATHERSTRIP | SUM |
| 214. | KHN2813 | [1] | SEAL, GLASS | SUMSEAL,WINDOW |
| 215. | KHN2814 | [1] | SEAL | SUMSEAL,WINDOW |
| 216. | KHN2907 | [2] | HINGE | SUM |
| 217. | KHN2850 | [12] | BOLT,Spcl | SUMM10 x 25 |
