纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-079-01[01]) - CAB GUARD - ANTI-VANDALISM - GLASS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
772 次

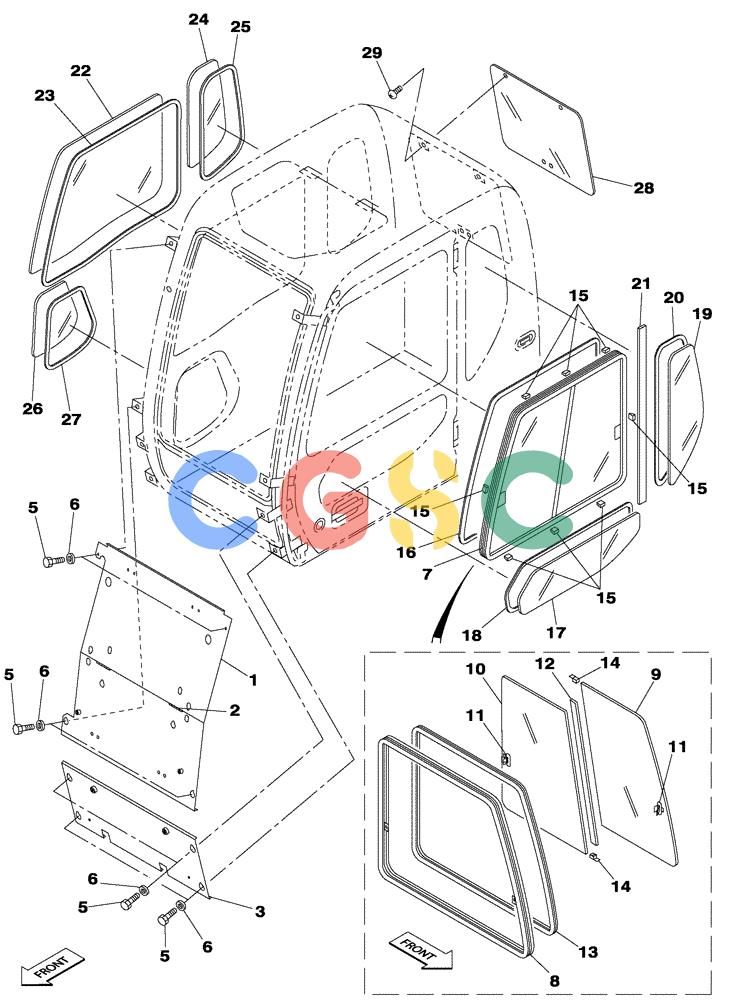

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KHN3414 | [1] | COVER | SUM |
| 2. | NSS | [2] | NOT SERVICED SEPARATELY | CONHinge |
| 3. | KHN2870 | [1] | COVER | SUM |
| 5. | 167472A1 | [8] | BOLT,High Strength, M10 x 20mm, Cl 10.9 | SUM |
| 5. | 162880A1 | [4] | BOLT | SUM |
| 6. | 150409A1 | [8] | WASHER | SUM10,5 x 21 x 3,2 mm |
| 7. | KHN2906 | [1] | WINDOW ASSY | SUM |
| 15. | KHN3352 | [8] | SPACER | SUM |
| 16. | KHN2813 | [1] | SEAL, GLASS | SUMSEAL,WINDOW |
| 17. | KHN2922 | [1] | GLASS | SUM |
| 18. | KHN2921 | [1] | SEAL | SUMSEAL,WINDOW |
| 19. | KHN2938 | [1] | GLASS | SUM |
| 20. | KHN2936 | [1] | SEAL, GLASS | SUMSEAL,WINDOW |
| 21. | KHN3005 | [1] | SEAL PROTECTION | SUMSEAL,WINDOW Superseded by part number: KHN3234 |
| 22. | KHN2939 | [1] | GLASS | SUM |
| 23. | KHN2637 | [1] | WEATHERSTRIP | SUM |
| 24. | KHN2941 | [1] | GLASS | SUM |
| 25. | KHN2639 | [1] | WEATHERSTRIP | SUM |
| 26. | KHN2940 | [1] | GLASS | SUM |
| 27. | KHN2641 | [1] | WEATHERSTRIP | SUM |
| 28. | KHN3006 | [1] | GLASS | SUM |
| 29. | KHN2931 | [4] | SCREW,Spcl | SUM |
