神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-005) - OIL PAN AND LEVEL GAUGE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
754 次

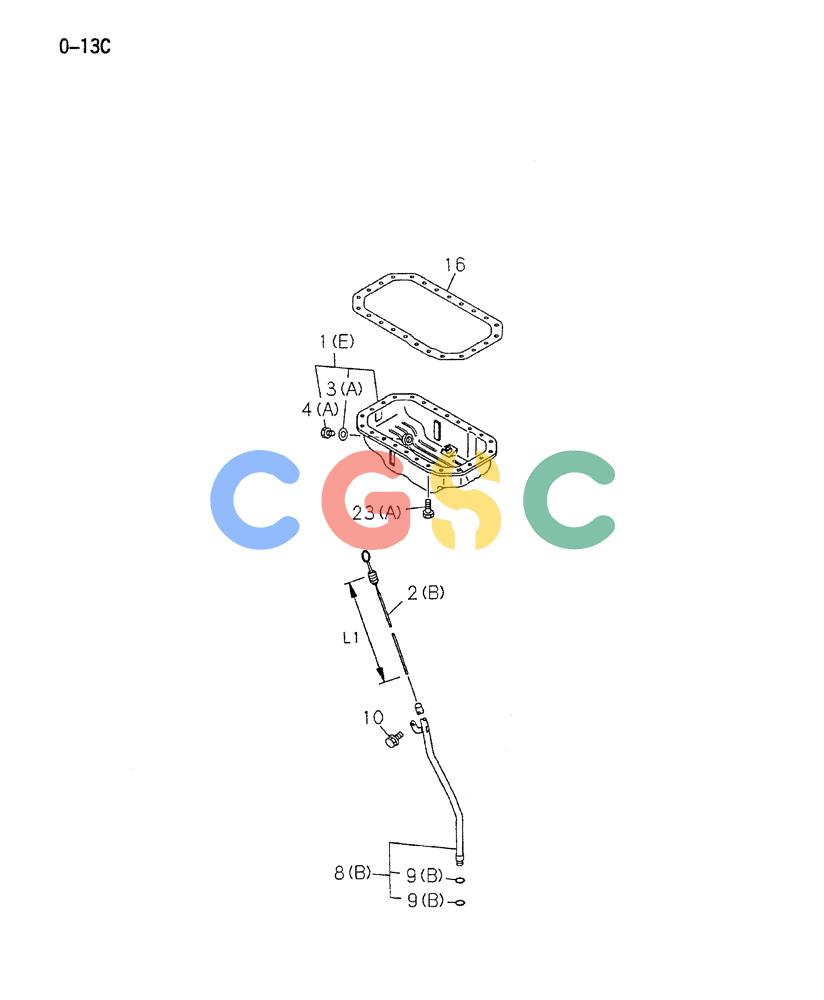

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONOIL PAN AND LEVEL GAUGE |
| 1(E). | VI8972045180 | [1] | PAN | KOBASM, OIL |
| 2(B). | VI8943106780 | [1] | GAUGE | KOBOIL LEVEL |
| 3(A). | VI1096230570 | [1] | O-RING | KOBGASKET, DRAIN PLUG (L1=608) Superseded by part number: 87380148 |
| 4(A). | VI9096620120 | [1] | DRAIN PLUG | KOBOIL |
| 8(B). | VI8970209320 | [1] | TUBE | KOBGUIDE, OIL LEVEL GAUGE |
| 9(B). | VI5096230020 | [2] | O-RING | KOBGASKET, GUIDE TUBE, OIL LEVEL GAUGE |
| 10. | VI0280808120 | [1] | BOLT, GUIDE TUBE (M8X12 FLANGE) | |
| 16. | VI8973524030 | [1] | GASKET | KOBOIL PAN TO C/BL Superseded by part number: 76615708 |
| 23(A). | VI0500408180 | [24] | BOLT | KOBOIL PAN (M8X18 W/LK WASHER) Superseded by part number: VI0505408180 |
