神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-011) - EXHAUST MANIFOLD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
619 次

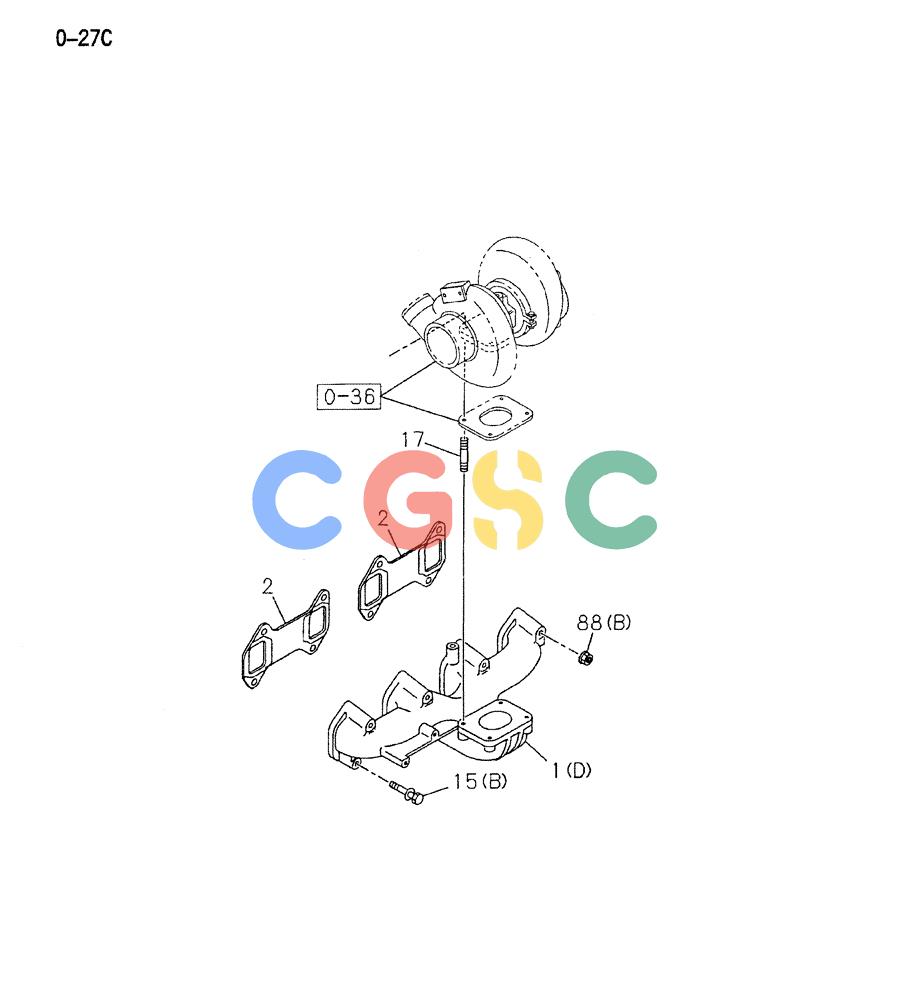

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONEXHAUST MANIFOLD |
| 1(D). | VI8943660210 | [1] | MANIFOLD | KOBEXHAUST |
| 2. | VI8944046100 | [2] | GASKET | KOBEXH MANIF TO HD |
| 15(B). | VI8943185540 | [2] | BOLT | KOBEXH MANIF (M8X63 W/PL WASHER) |
| 15(B). | VI8943185550 | [2] | BOLT | KOBEXH MANIF (M8X75 W/PL WASHER) |
| 17. | VI8941417731 | [4] | STUD | KOBMANIFOLD TURBOCHARGER (M8X22) Superseded by part number: VI8973780610 |
| 88(B). | VI8970614011 | [4] | NUT | KOBEXH PIPE |
