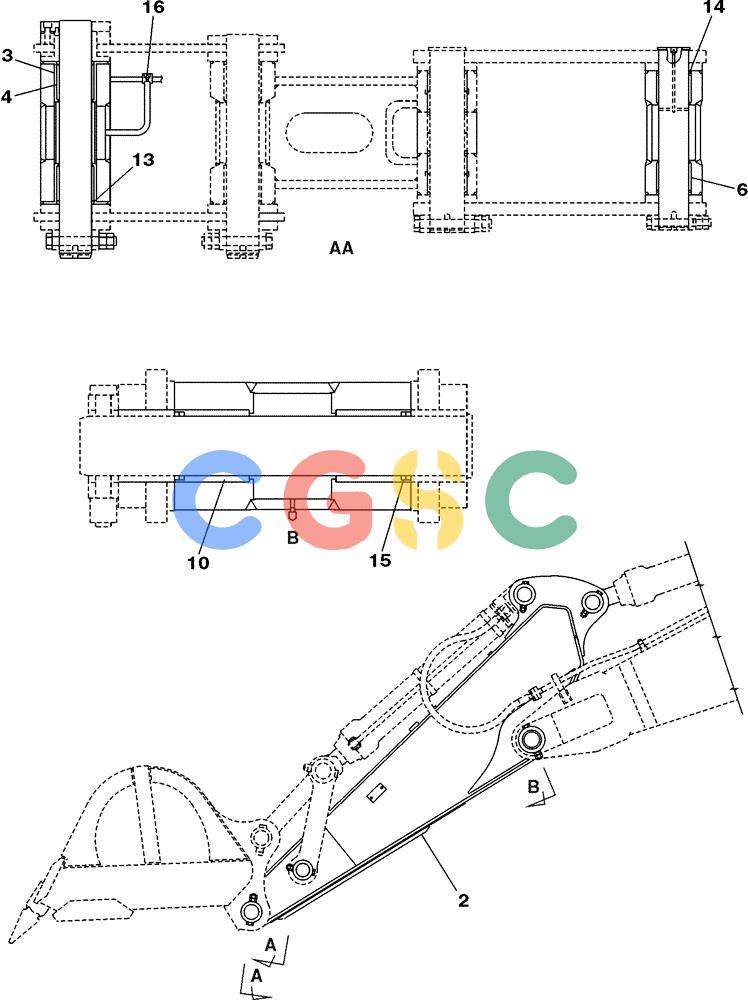

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | KUV0368 | [1] | DIPPER | SUM |
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 3. | KUV0028 | [2] | BUSHING,140mm ID x 264mm OD x 163mm L | SUM |
| 4. | KUV0029 | [2] | BUSHING | SUM |
| 6. | KUV0031 | [2] | BUSHING | SUM |
| 10. | KUV0032 | [2] | BUSHING | SUM |
| 13. | KHV0289 | [2] | SEAL | SUM |
| 14. | 165186A1 | [4] | SEAL | SUM |
| 15. | KHV0290 | [4] | SEAL | SUM |
| 16. | 153630A1 | [1] | LUBE NIPPLE | SUM |
