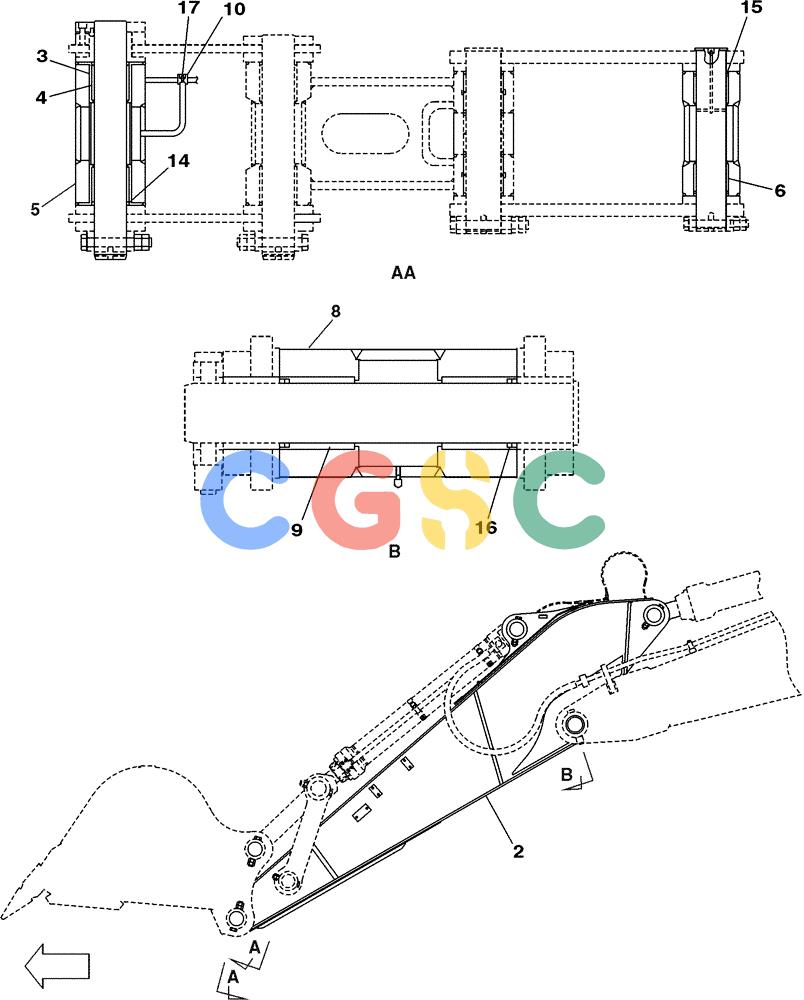

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-101-01[01]) - DIPPER - 3,66 M (12 FT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
560 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KUV0317 | [1] | DIPPER | SUM |
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 3. | KUV0028 | [2] | BUSHING,140mm ID x 264mm OD x 163mm L | SUM |
| 4. | KUV0029 | [2] | BUSHING | SUM |
| 5. | KUV0083 | [2] | BOSS | SUM |
| 6. | KUV0031 | [2] | BUSHING | SUM |
| 8. | KUV0066 | [2] | BOSS | SUM |
| 9. | KUV0032 | [2] | BUSHING | SUM |
| 10. | 151365A1 | [1] | FITTING | SUM |
| 14. | KHV0289 | [2] | SEAL | SUM |
| 15. | 165186A1 | [4] | SEAL | SUM |
| 16. | KHV0290 | [4] | SEAL | SUM |
| 17. | 153630A1 | [1] | LUBE NIPPLE | SUM |
