神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-014) - THERMOSTAT AND HOUSING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
541 次

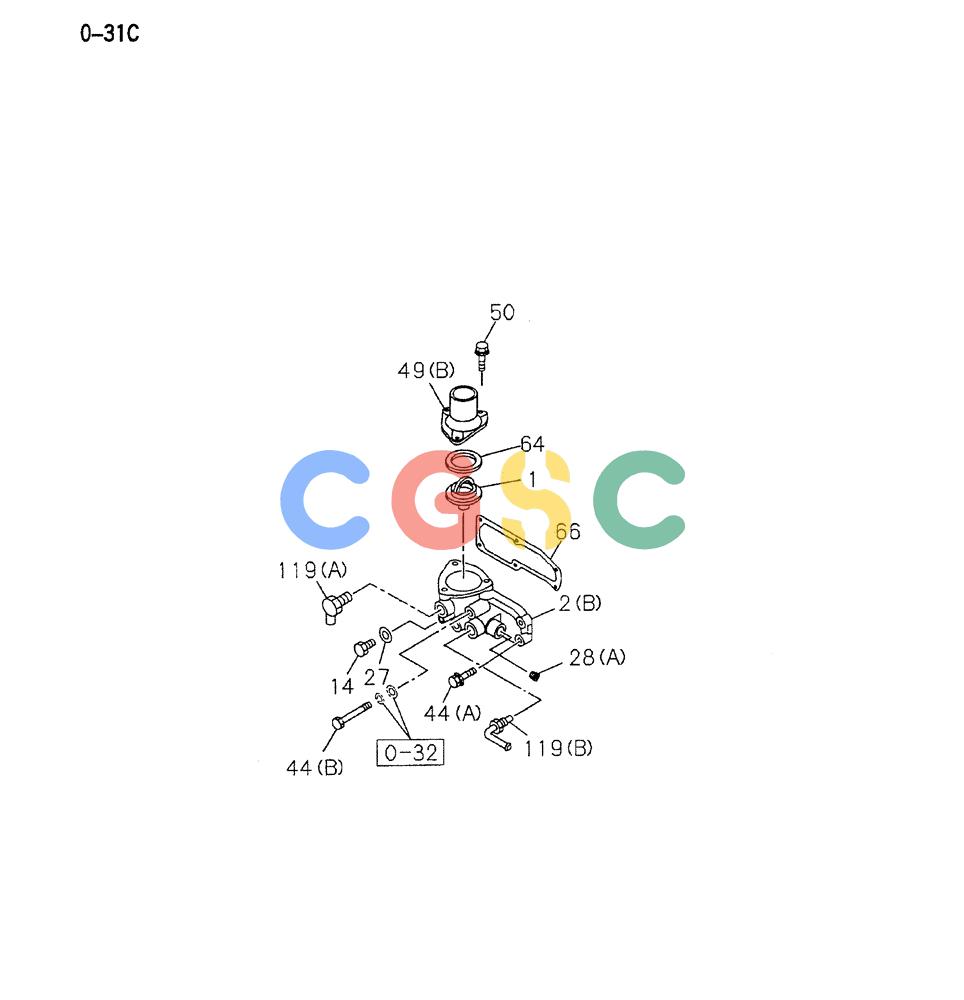

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONTHERMOSTAT AND HOUSING |
| 1. | VI1137700700 | [1] | THERMOSTAT | KOB(82°C) |
| 2(B). | VI1137118042 | [1] | MOTOR HOUSING | KOBTHERMOSTAT |
| 14. | VI9096610050 | [1] | PLUG | KOBSW |
| 27. | VI9095714160 | [1] | SEAL | KOBSW |
| 28(A). | VI5096050050 | [1] | PLUG | KOBHTR (PT3/8) |
| 44(A). | VI0500410400 | [2] | BOLT | KOBHSG TO HD (M10X40 W/LK WASHER) Superseded by part number: VI0505410400 |
| 44(A). | VI0501410350 | [1] | BOLT | KOBHSG TO HD (M10X35 W/LK & PL WASHER) Superseded by part number: VI0505410350 |
| 44(A). | VI0280810300 | [1] | BOLT, HSG TO HD (M10X30 FLANGE) | |
| 44(B). | VI0280810800 | [1] | BOLT, HSG TO HD (M10X80 FLANGE) | |
| 49(B). | VI8971380032 | [1] | PIPE | KOBPIPE, WATER OUTLET |
| 50. | VI0280808220 | [3] | BOLT, OUTLET PIPE (M8X22 FLANGE) | |
| 64. | VI1137430160 | [1] | SEAL | KOBOUTLET P'PE TO HSG Superseded by part number: 289204A1 |
| 66. | VI8972357891 | [1] | GASKET | KOBTHERMOSTAT HSG Superseded by part number: VI8972357892 |
| 119(A). | VI8972045090 | [1] | PIPE | KOBHTR (FEED) |
| 119(B). | VI8972045130 | [1] | PIPE | KOBHTR (RETURN) |
