神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-019[02]) - FUEL INJECTION SYSTEM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
943 次

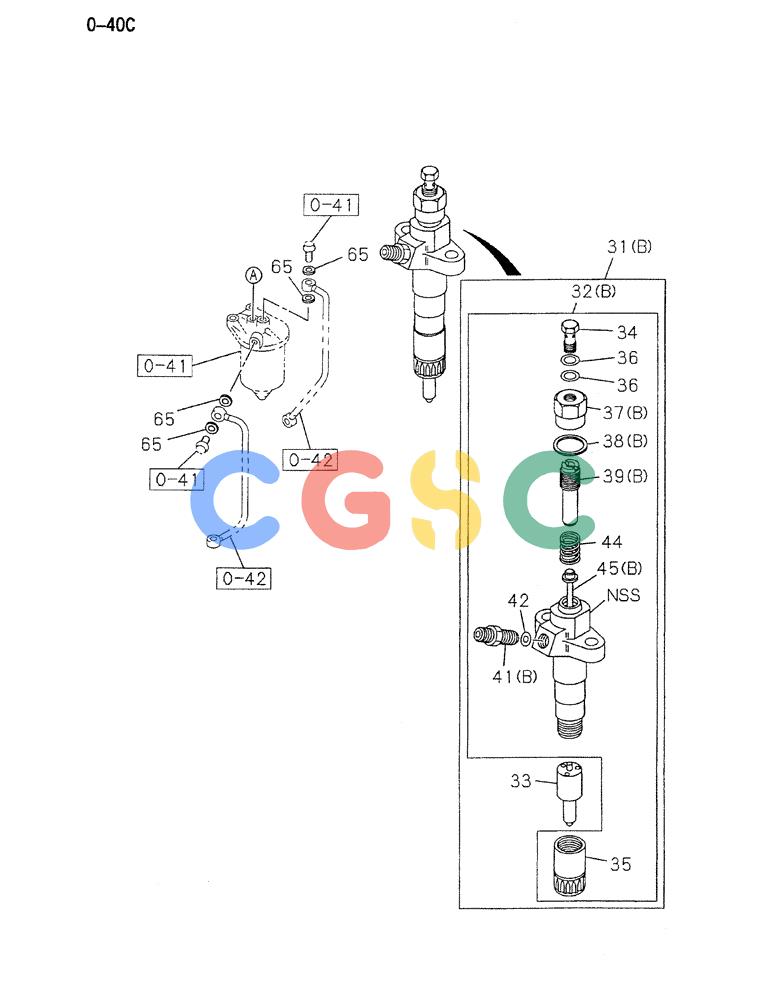

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONFUEL INJECTION SYSTEM |
| 1. | VI8973710430 | [1] | PUMP | KOBASM, INJ |
| 15. | VI8972475920 | [1] | COUPLING ASM, INJ PUMP | |
| 16. | VI8970314672 | [1] | PIPE | KOBINJ NO.1 |
| 17. | VI8972520610 | [1] | INJECTION PIPE | KOBNO.2 |
| 18. | VI8970314692 | [1] | FUEL TUBE | KOBPIPE, INJ NO.3 |
| 19. | VI8970314702 | [1] | FUEL TUBE | KOBPIPE, INJ NO.4 |
| 31(B). | VI8972221700 | [4] | FUEL SYSTEM INJECTOR | KOBASM, INJ |
| 32(B). | VI8971348410 | [4] | HOLDER ASM, NOZZLE | |
| 33. | VI1153113010 | [4] | NOZZLE | KOBINJ Superseded by part number: VIG1050253040 |
| 34. | VI1096750371 | [4] | BOLT | KOBEYE, NOZZLE HOLDER |
| 35. | VI1153320170 | [4] | NUT | KOBNOZZLE RET, NOZZLE HOLDER |
| 36. | VI1096300820 | [8] | GASKET | KOBRETURN PIPE, NOZZLE HOLDER Superseded by part number: 289091A1 |
| 37(B). | VI5153320060 | [4] | CAP | KOBNUT, NOZZLE HOLDER |
| 38(B). | VI5153390600 | [4] | GASKET | KOBCAP NUT, NOZZLE HOLDER |
| 39(B). | VI8941695030 | [4] | SCREW | KOBADJ, NOZZLE SPRING, NOZZLE HOLDER |
| 41(B). | VI8943203080 | [4] | CONNECTOR, 2-POLE | KOBCONNECTOR,2-POLE FUEL INL, NOZZLE HOLDER |
| 42. | VI5513390030 | [4] | GASKET | KOBINL CONNECTOR, NOZZLE HOLDER Superseded by part number: VI5153390030 |
| 44. | VI5153430050 | [4] | SPRING | KOBNOZZLE, NOZZLE HOLDER |
| 45(B). | VI8941695020 | [4] | PUSH ROD | KOBNOZZLE HOLDER |
| 54. | VI9153390510 | [4] | CUP COVER | KOBCOVER, DUST, NOZZLE HOLDER |
| 62. | VI0911501080 | [8] | NUT | KOBNOZZLE HOLDER Superseded by part number: VI0911802080 |
| 63(B). | VI8970209371 | [1] | PIPE | KOBFUEL, NOZZLE LEAK OFF |
| 65. | VI9095720140 | [4] | PACKING | KOBGASKET, FUEL FILTER |
| 66. | VI5153150030 | [4] | PACKING | KOBGASKET, INJ NOZZLE Superseded by part number: 288650A1 |
| 72. | VI0280810220 | [1] | BOLT, BRKT TO INJ PUMP (M10X22 FLANGE) | |
| 80(D). | VI8972410390 | [1] | BRACKET | KOBPUMP |
| 93. | VI9095714080 | [2] | PACKING | KOBGASKET, LEAK OFF PIPE Superseded by part number: 289808A1 |
| 113. | VI5154190131 | [3] | CLIP | KOBINJ PIPE |
| 133(A). | VI8972045151 | [1] | INJECTION PIPE | KOBNOZZLE LEAK OFF |
| 134. | VI1096750371 | [1] | BOLT | KOBJOINT, LEAK OFF PIPE (M8X18 FLANGE) |
| 137(A). | VI5154112231 | [1] | PIPE | KOBASM, LEAK OFF |
| 158. | VI0911502100 | [1] | NUT | KOBINJ PUMP |
