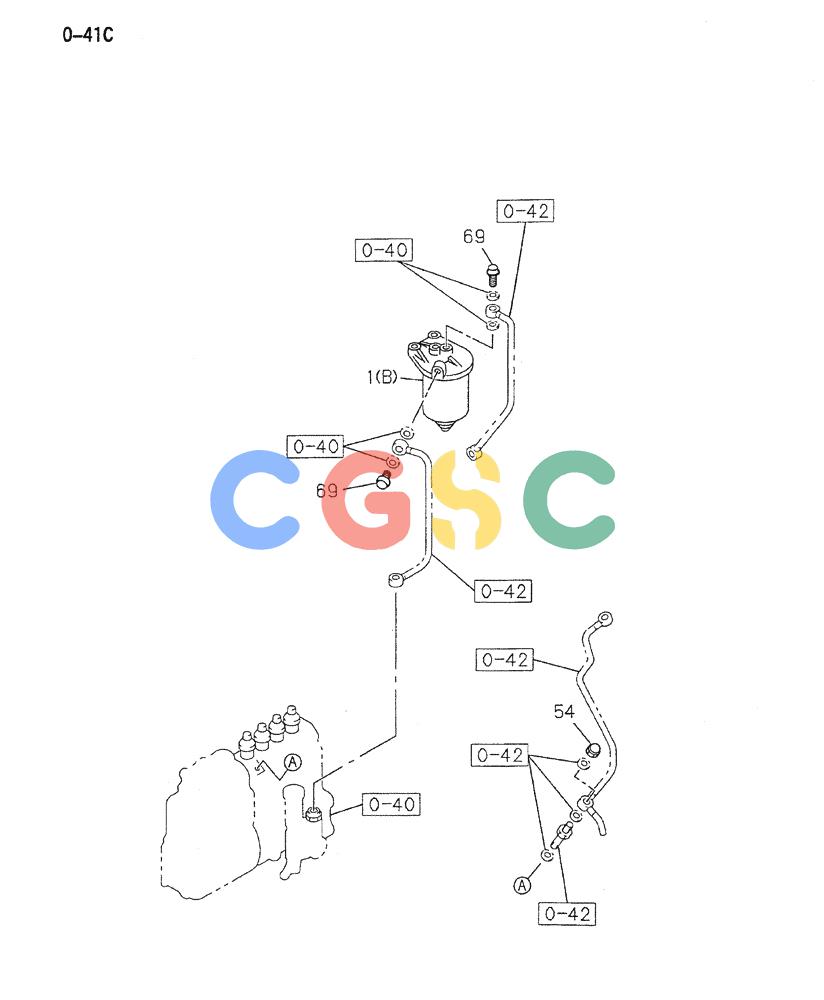

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-020[01]) - FUEL FILTER AND BRACKET Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONFUEL FILTER AND BRACKET |
| 1(B). | VI8971798541 | [1] | FUEL FILTER | KOBFILTER ASM, FUEL |
| 2(B). | VI8971725491 | [1] | ELEMENT | KOBKIT, FUEL FILTER Superseded by part number: YB02P00001-2 |
| 8. | VI8941329480 | [1] | BODY | KOBCOVER, FUEL FILTER |
| 9. | VI1096300850 | [2] | GASKET | KOBEYE JOINT |
| 10. | VI1132600470 | [1] | REDUCER | KOBVALVE, OVERFLOW, FUEL FILTER |
| 40(B). | VI5197550010 | [1] | BRACKET | KOBFUEL FILTER Superseded by part number: 289568A1 |
| 45. | VI0286810300 | [2] | BOLT | KOBFUEL FILTER (M10X30 FLANGE) |
| 54. | VI1094680021 | [1] | NUT | KOBCAP, OVERFLOW VLV |
| 69. | VI9099063251 | [2] | BOLT | KOBEYE, FUEL FILTER (M14X29) Superseded by part number: 87596570 |
| 88. | VI0280810200 | [2] | BOLT | KOBBOLT, BRKT, FUEL FILTER (M10X20 FLANGE) |
