纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-001-00[01]) - ENGINE MOUNTING - ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
898 次

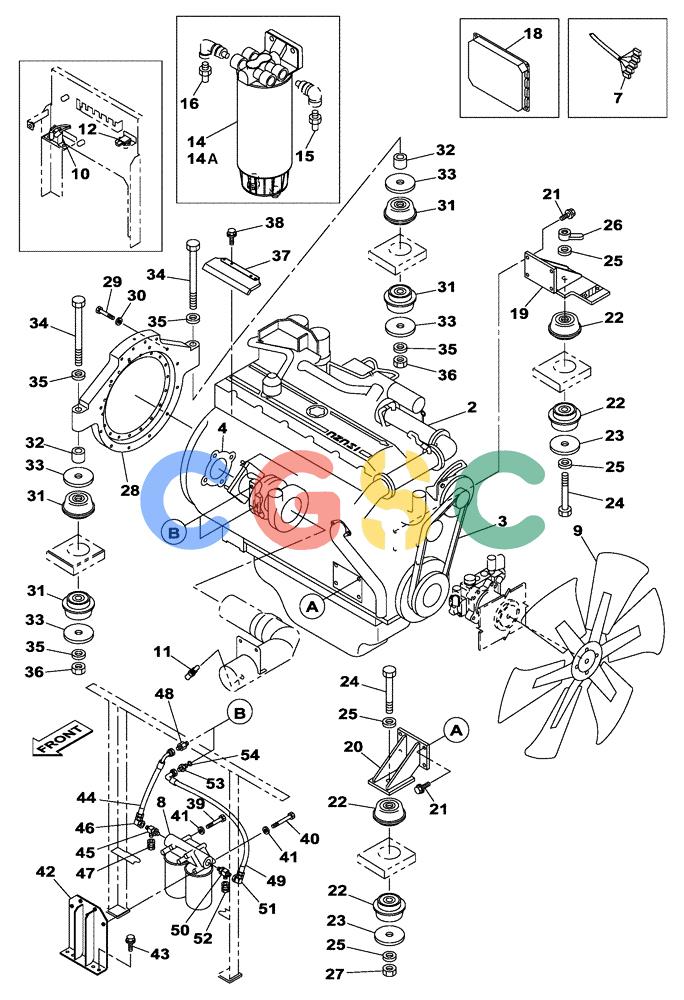

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | KUH10100 | [1] | ENGINE ASSEMBLY | ISUENGINE ASSY |
| 14. | KHH10630 | [1] | FILTER ASSY | SUMFilter Assy Superseded by part number: 87361332 |
| 14A. | KHH10640 | [1] | FUEL FILTER | SUMElement Filter Superseded by part number: 87336446 |
| 15. | KHH10660 | [1] | FITTING | SUM |
| 16. | KHH10670 | [1] | FITTING | SUM |
| 19. | KWH0030 | [1] | ENGINE MOUNT | SUM |
| 20. | KUH0150 | [1] | ENGINE MOUNT | SUM |
| 21. | 166470A1 | [8] | BOLT,M14, W/ Wshr | SUMM14 x 40 |
| 22. | KUH0115 | [4] | SILENTBLOC | SUM |
| 23. | KUH0013 | [2] | PLATE | SUM |
| 24. | 102R024Y200R | [2] | BOLT | SUMM24 x 200 |
| 25. | 150822A1 | [4] | WASHER,25mm ID x 48mm OD x 6mm Thk | SUMW24 |
| 26. | KWH0033 | [1] | SPECIAL NUT | SUM |
| 27. | 829-1424 | [1] | NUT,M24, Cl 10 | CAS Superseded by part number: 9848973, 87778058 |
| 29. | 827-12085 | [12] | BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9 | SUMM12 x 85 Superseded by part number: 86979023 |
| 30. | 150811A1 | [12] | WASHER | SUMW12 Superseded by part number: 86625255 |
| 31. | KUH0114 | [4] | SILENTBLOC | SUM Superseded by part number: KUH10370 |
| 32. | KUH0152 | [2] | SPACER | SUM |
| 34. | KUH0151 | [2] | BOLT | SUMM24 x 330 |
| 37. | KWH10070 | [1] | PROTECTION PLATE | SUM |
| 38. | 167182A1 | [4] | BOLT,Sems, M8 x 25mm | SUMM8 x 25 |
| 39. | 102R010Y110R | [2] | BOLT | SUMM10 x 110 |
| 40. | 102R010Y140R | [3] | BOLT | SUMM10 x 140 |
| 41. | 150409A1 | [5] | WASHER | SUMW M10 |
| 42. | KUH10140 | [1] | SUPPORT | SUM |
| 43. | 152718A1 | [4] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 44. | KUH10120 | [1] | HYDRAULIC HOSE,25.40 mm ID x 540.00 mm | SUM |
| 45. | ABV0829 | [1] | TEE | SUM |
| 46. | BHA1110 | [1] | GASKET | SUM |
| 47. | 153683A1 | [1] | PLUG | SUM |
| 48. | KMJ0187 | [1] | ADAPTER | SUM |
| 49. | KUH10130 | [1] | HYDRAULIC HOSE,25.40 mm ID x 820.00 mm | SUM |
| 53. | 151655A1 | [1] | HYD CONNECTOR,1" NPT O-Ring x 1" NPT | SUM |
| 54. | 154523A1 | [1] | O-RING | SUM |
