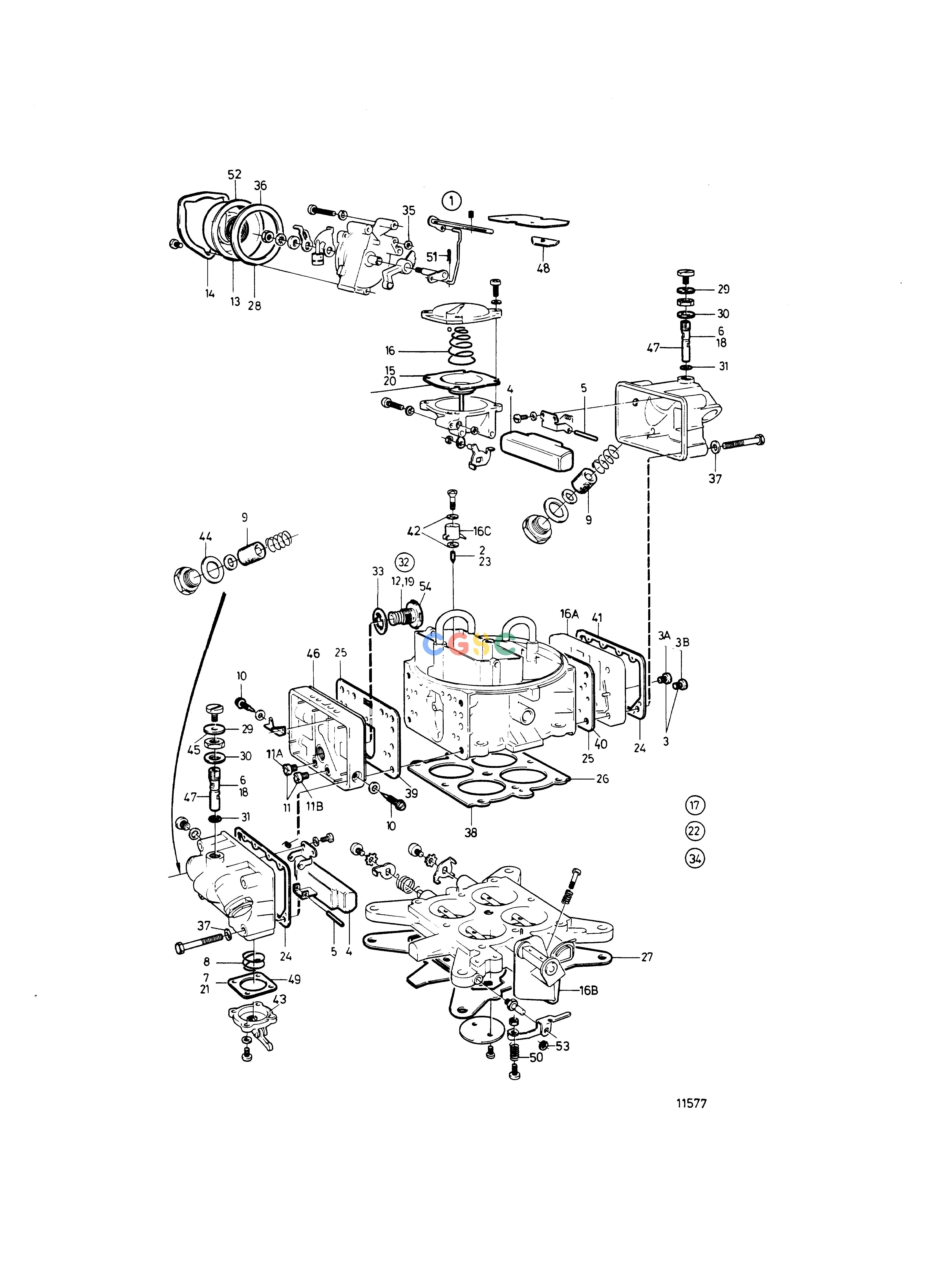

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Fuel SystemCarburetor: 857382EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
425 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
857382
|
[1] |
Carburettor
|
|
| 2. |
856189
|
[1] |
Valve
|
|
| 11A. |
856947
|
[1] |
Nozzle
|
Level side
|
| 11B. |
857609
|
[1] |
Nozzle
|
Choke side
|
| 12. |
856712
|
[1] |
Valve
|
|
| 13. |
856200
|
[1] |
Choke
|
|
| 15. |
856202
|
[1] |
Diaphragm
|
|
| 16A. |
857610
|
[1] |
Plate
|
Secondary
|
| 16B. |
857611
|
[1] |
Cam
|
|
| 16C. |
857612
|
[1] |
Nozzle
|
|
| 34. |
857607
|
[1] |
Gasket kit
|
For 857382
|
| 35. |
|
|
|
|
| 36. |
|
|
|
|
| 37. |
|
|
|
|
| 38. |
|
|
|
|
| 39. |
|
|
|
Primary
|
| 40. |
|
|
|
Secondary
|
| 41. |
|
|
|
Secondary
|
| 42. |
|
|
|
|
| 43. |
|
|
|
|
| 44. |
|
|
|
|
| 45. |
|
|
|
|
| 46. |
|
|
|
|
| 47. |
|
|
|
|
| 48. |
|
|
|
|
| 49. |
|
|
|
|
| 50. |
|
|
|
|
| 51. |
|
|
|
|
| 52. |
|
|
|
|
| 53. |
|
|
|
|
| 54. |
856712
|
[1] |
Valve
|
|
| 54. |
|
|
|
|
