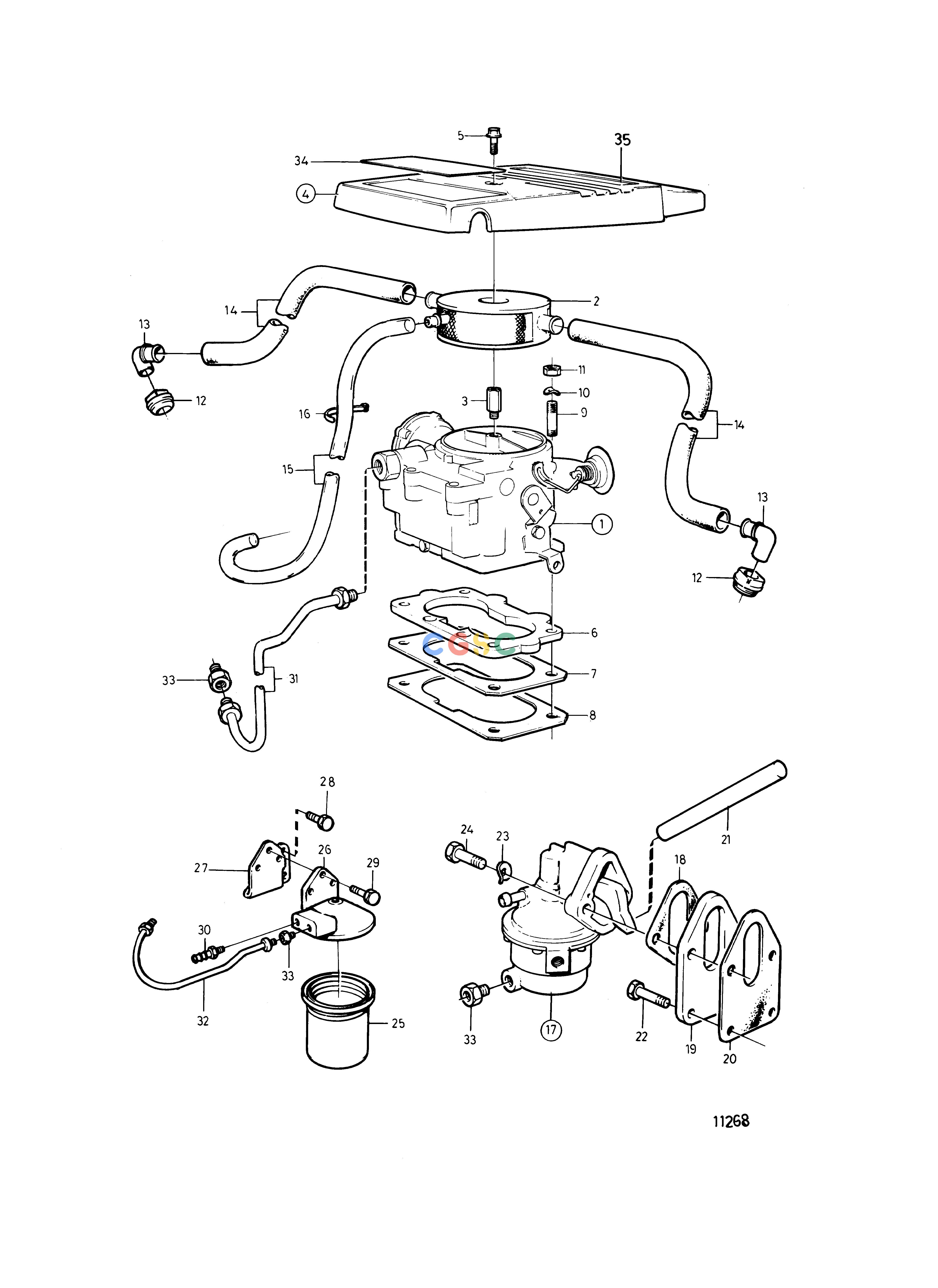

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Fuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
856845
|
[1] |
Carburettor
|
|
| 2. |
855956
|
[1] |
Flame shield
|
|
| 3. |
856967
|
[1] |
Shoulder screw
|
|
| 4. |
856944
|
[1] |
Cover
|
|
| 5. |
946544
|
[1] |
Flange screw
|
|
| 6. |
841031
|
[1] |
Gasket
|
|
| 7. |
856960
|
[1] |
Plate
|
|
| 8. |
856906
|
[1] |
Gasket
|
|
| 9. |
835455
|
[4] |
Stud
|
|
| 10. |
941907
|
[4] |
Spring washer
|
|
| 11. |
950373
|
[4] |
Lock nut
|
|
| 12. |
835415
|
[2] |
Rubber bushing
|
See group 2A
|
| 13. |
855902
|
[2] |
Hose attachment
|
|
| 14. |
941522
|
[1] |
Hose
|
L=2X315mm
|
| 15. |
941149
|
[1] |
Hose
|
L=700mm
|
| 16. |
948210
|
[2] |
Cable tie
|
|
| 17. |
855297
|
[1] |
Fuel pump
|
|
| 17. |
|
|
|
|
| 18. |
856031
|
[1] |
Gasket
|
|
| 19. |
841673
|
[1] |
Insulating flange
|
|
| 20. |
856676
|
[1] |
Gasket
|
|
| 21. |
856447
|
[1] |
Push rod
|
|
| 22. |
841426
|
[2] |
Screw
|
(943629)
|
| 23. |
941907
|
[2] |
Spring washer
|
|
| 24. |
940186
|
[2] |
Hexagon screw
|
|
| 25. |
855686
|
[1] |
Fuel filter
|
|
| 26. |
855569
|
[1] |
Cap
|
|
| 27. |
856292
|
[1] |
Bracket
|
|
| 28. |
955534
|
[2] |
Hexagon screw
|
|
| 29. |
955295
|
[3] |
Hexagon screw
|
|
| 30. |
834781
|
[1] |
Nipple
|
|
| 31. |
856129
|
[1] |
Fuel pipe
|
|
| 32. |
856130
|
[1] |
Fuel pipe
|
|
| 33. |
180303
|
[3] |
Nipple
|
|
| 34. |
856945
|
[1] |
Decal
|
430
|
| 35. |
856698
|
[1] |
Decal
|
Logo Volvo Penta
|
