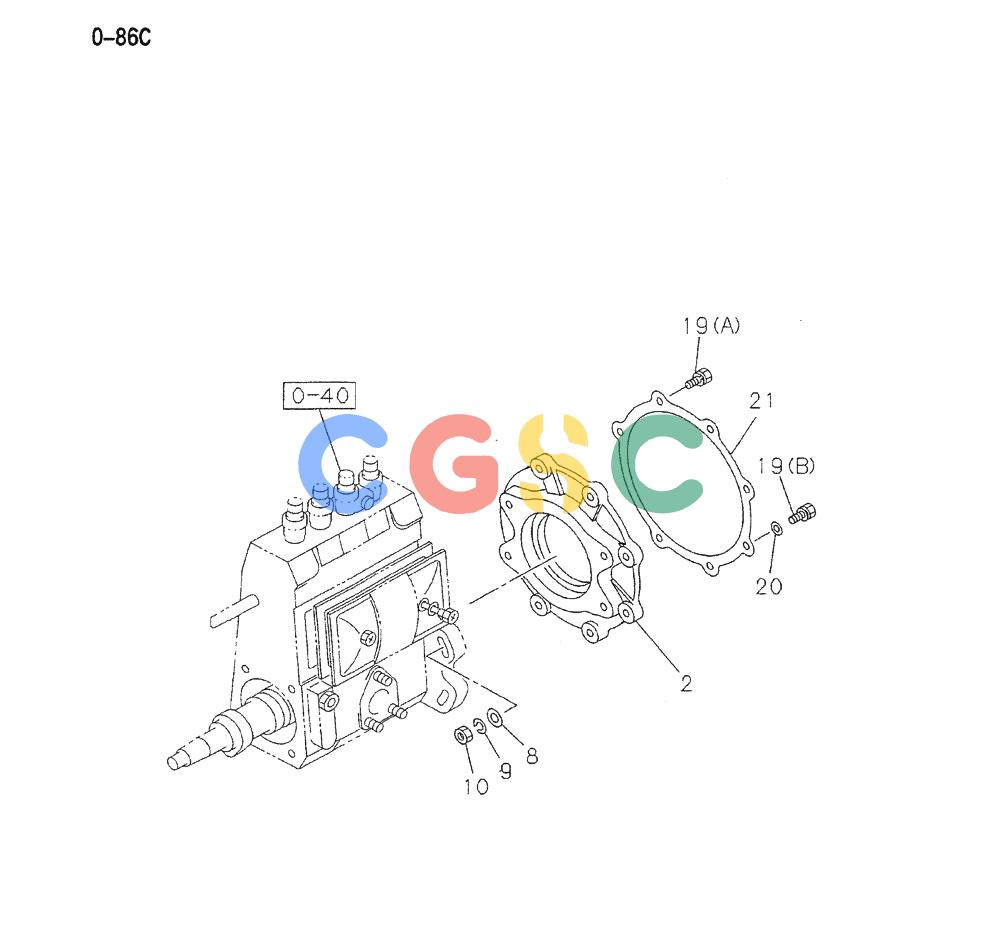

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-027) - MISCELLANEOUS PARTS; INJECTION PUMP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
438 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONMISCELLANEOUS PARTS; INJECTION PUMP |
| 2. | VI5197510500 | [1] | BRACKET | KOBHSG & TIMER, INJ PUMP |
| 8. | VI9091645100 | [4] | WASHER | KOBPL, HSG BRKT, INJ PUMP |
| 9. | VI9091506100 | [4] | WASHER | KOBLK, HSG BRKT, INJ PUMP |
| 10. | VI5156390020 | [4] | NUT | KOBHSG BRKT, INJ PUMP |
| 19(A). | VI5090000841 | [6] | BOLT | KOBINJ PUMP (M8X55 W/LK WASHER) Superseded by part number: VI8941500451 |
| 19(B). | VI5090002221 | [1] | BOLT | KOBINJ PUMP (M8X22) |
| 20. | VI9095720080 | [1] | GASKET | KOBINJ PUMP |
| 21. | VI8943706750 | [1] | GASKET | KOBINJ PUMP Superseded by part number: VI8943706751 |
