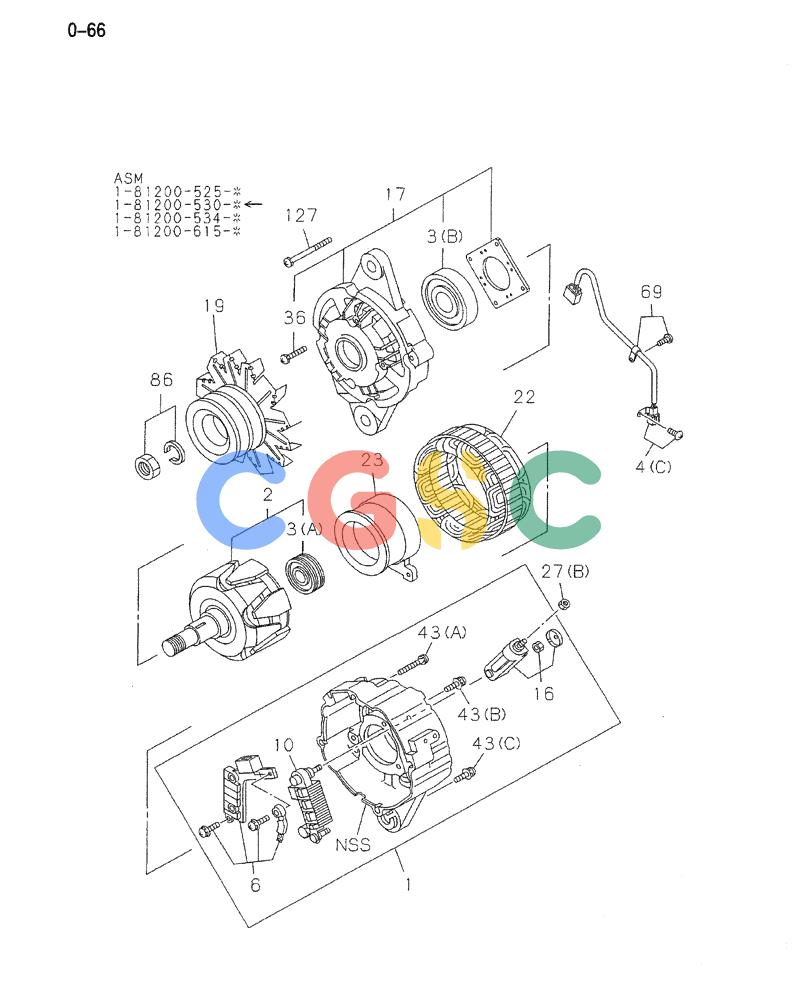

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-026) - GENERATOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI1812005303 | [1] | GENERATOR | KOBASM (24V-50A MITSUBISHI) Superseded by part number: VI1812005306 |
| 1. | VI1812143670 | [1] | COVER ASM, RR, GEN | |
| 2. | VI1812211020 | [1] | ROTOR, GEN | |
| 3(A). | VI1812297690 | [1] | BEARING, ROTOR, GEN | |
| 3(B). | VI1812297700 | [1] | BEARING, ROTOR, GEN | |
| 4(C). | VI1812298390 | [1] | TERMINAL, BRUSH, GEN | |
| 6. | VI1812600170 | [1] | REGULATOR ASM, VOLTAGE, GEN | |
| 10. | VI1812298330 | [1] | RECTIFIER, GEN | |
| 16. | VI1812297710 | [1] | TERMINAL ASM, RECTIFIER, GEN | |
| 17. | VI1812131010 | [1] | COVER ASM, FRT, GEN | |
| 19. | VI1812221301 | [1] | PULLEY, GEN | |
| 22. | VI1812111290 | [1] | STATOR, GEN | |
| 23. | VI1812120160 | [1] | COIL, ROTOR GEN | |
| 27(B). | VI1812297720 | [1] | NUT, RECTIFIER, GEN | |
| 36. | VI1812297680 | [1] | SCREW, FRT COVER | |
| 43(B). | VI1812298320 | [1] | SCREW, RR END COVER SET | |
| 43(A). | VI1812297740 | [1] | SCREW, RR END COVER SET | |
| 43(C). | VI1812297730 | [1] | SCREW, RR END COVER SET | |
| 69. | VI1812298360 | [1] | CLIP, WIRE, GEN | |
| 86. | VI8971781340 | [1] | NUT SET, PULLEY, GEN | |
| 127. | VI1812297670 | [1] | BOLT SET, GEN | |
