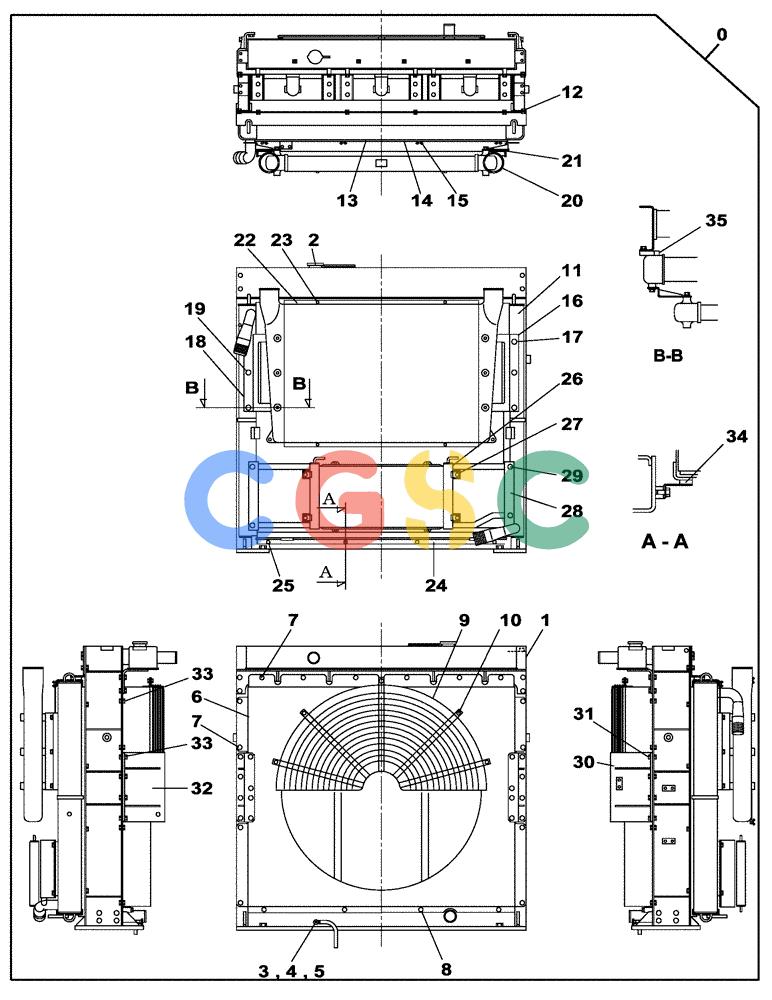

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-005-01[01]) - RADIATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
772 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | KUH10040 | [1] | RADIATOR | SUM Superseded by part number: LW005880, LG005910, LA011260, LS004220, LA012760, KUH10470, LH004680 |
| 1. | LN001620 | [1] | RADIATOR | SUM Superseded by part number: LN002530 |
| 2. | LR00650 | [1] | FILLER CAP | SUM |
| 3. | LJ00849 | [1] | COCK, DRAIN | SUM |
| 4. | LK00342 | [1] | HOSE | SUM700.0 mm |
| 5. | LA00602 | [1] | CLIP,ELECTRICAL | SUM |
| 6. | LW004670 | [1] | SHROUD | SUM |
| 7. | LA00784 | [14] | BOLT | SUMM10 x 1.5 |
| 8. | 158870A1 | [4] | BOLT | SUM |
| 9. | LG005570 | [1] | RADIATOR GRILLE | SUM |
| 10. | LA00781 | [5] | BOLT | SUMM12 x 1.75 x 25 Superseded by part number: LA00792 |
| 11. | LN001510 | [1] | OIL COOLER | SUM |
| 12. | LA00780 | [8] | BOLT | SUMM12 x 1.75 x 30 |
| 13. | LG005560 | [1] | SHIELD | SUM |
| 14. | LG005550 | [1] | SHIELD | SUM |
| 15. | 156606A1 | [4] | BOLT,Wing, M6 | SUMM6 x 1.0 |
| 16. | LR013940 | [1] | RETAINING PLATE | SUM |
| 17. | 158869A1 | [3] | BOLT | SUM |
| 18. | LS002950 | [1] | BRACKET | SUM |
| 20. | LN001630 | [1] | CONDENSER | SUM |
| 22. | LG005700 | [1] | RADIATOR GRILLE | SUM |
| 24. | LR012960 | [1] | PLATE | SUM |
| 25. | LUG0003 | [4] | BOLT | SUM |
| 26. | LN001490 | [1] | FUEL COOLER | SUM Superseded by part number: LN001690 |
| 27. | LA00677 | [4] | BOLT,Spcl | SUM |
| 28. | LS002680 | [1] | BRACKET | SUM |
| 30. | LS002670 | [1] | SUPPORT | SUM |
| 32. | LS002660 | [1] | SUPPORT | SUM |
| 34. | LE00916 | [1] | PACKING | SUM |
| 35. | LE00917 | [2] | PACKING | SUM |
