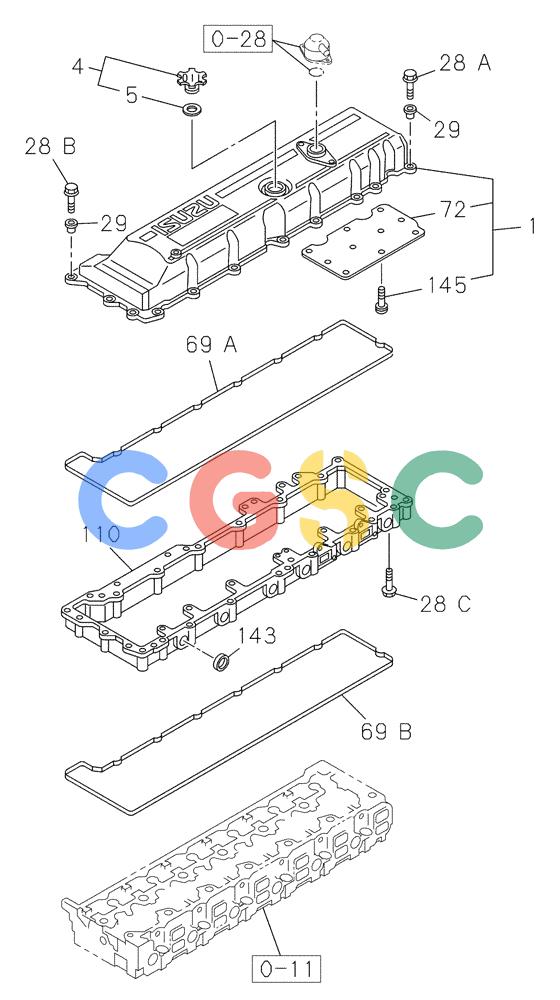

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-010-01[01]) - COVER - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
149 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87384320 | [1] | COVER | ISU |
| 4. | 288798A1 | [1] | FILLER CAP | ISU |
| 5. | 288797A1 | [1] | GASKET | ISU Superseded by part number: 72109500 |
| 28A. | 288696A1 | [12] | BOLT | ISUM8 x 80 Superseded by part number: 87597729 |
| 28B. | 355272A1 | [8] | BOLT | ISUM8 x 30 Superseded by part number: 87596042 |
| 28C. | 355273A1 | [7] | BOLT | CASM8 x 60 |
| 29. | 87384321 | [20] | RUBBER SEAL | ISU |
| 69A. | 87384322 | [1] | GASKET | ISU |
| 69B. | 87384323 | [1] | GASKET | ISU |
| 72. | 87384324 | [1] | PLATE | ISU |
| 110. | 87384325 | [1] | COVER | ISU |
| 143. | 437881A1 | [6] | GASKET | ISU Superseded by part number: 72109532 |
| 145. | 87531034 | [1] | BOLT | ISU |
