神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (03-017[00]) - HYDRAULIC LINES, ARM CYLINDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
223 次

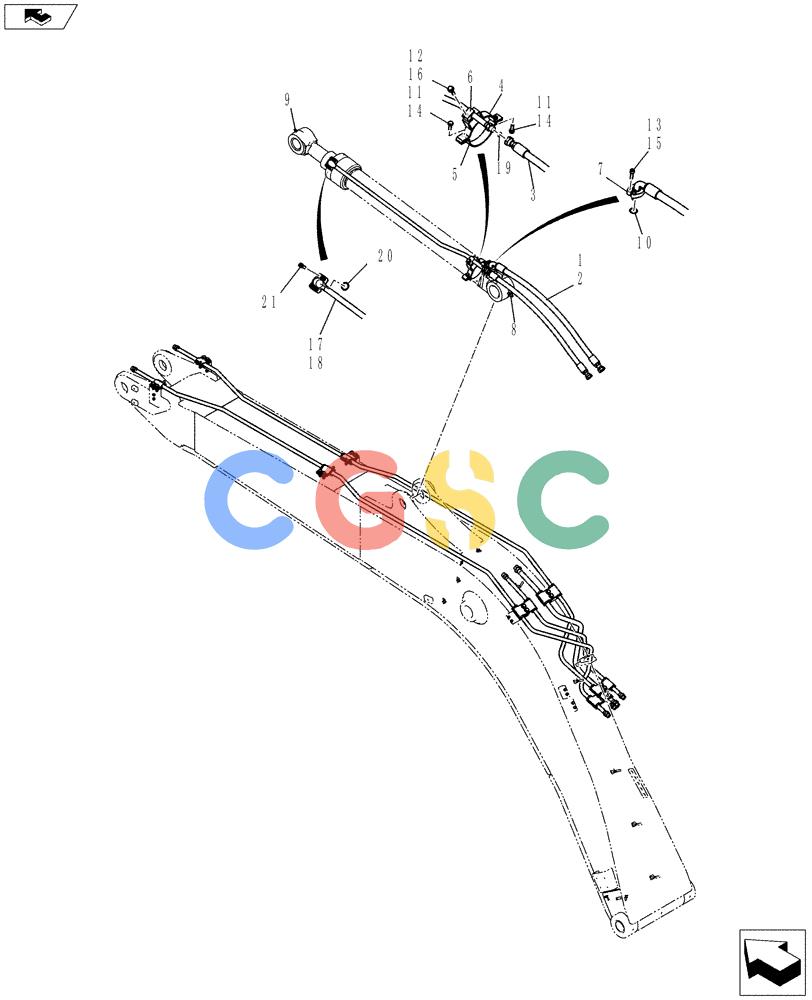

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY42H00141F1 | [1] | Cylinder, Arm | |
| 1. | YY42H00142F1 | [1] | Cylinder | |
| 2. | ZX30U12098 | [1] | FLEXIBLE HOSE | KOB |
| 3. | ZX20H10094 | [1] | FLEXIBLE HOSE | KOB |
| 4. | YY42H01787P1 | [1] | BAND | KOB |
| 5. | YY42H01788P1 | [1] | BAND | KOB |
| 6. | YW43H01049P1 | [1] | CLAMP | KOB |
| 7. | ZE13X12000 | [2] | CLAMP | KOBHalf |
| 8. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB |
| 9. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 10. | ZD12P02600 | [1] | O-RING | KOB |
| 11. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBCap |
| 12. | ZS18C10050 | [1] | SCREW,Hex, M10 x 50mm | KOBCap |
| 13. | ZS28C10035 | [4] | SCREW,Hex Socket Head, M10 x 35mm | KOBScrew |
| 14. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| 15. | ZW26K10000 | [4] | LOCK WASHER | KOBLock Superseded by part number: 12581679 |
| 16. | ZW16H10000 | [1] | WASHER | KOB |
| 17. | YY42H00143F1 | [1] | Cylinder | |
| 18. | YY42H01523P1 | [1] | TUBE | KOB |
| 19. | ZD12A01600 | [1] | O-RING | KOB |
| 20. | ZD12P02600 | [1] | O-RING | KOB |
| 21. | ZS28C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBCap |
