神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (03-018[00]) - HYDRAULIC LINES, BUCKET CYLINDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
610 次

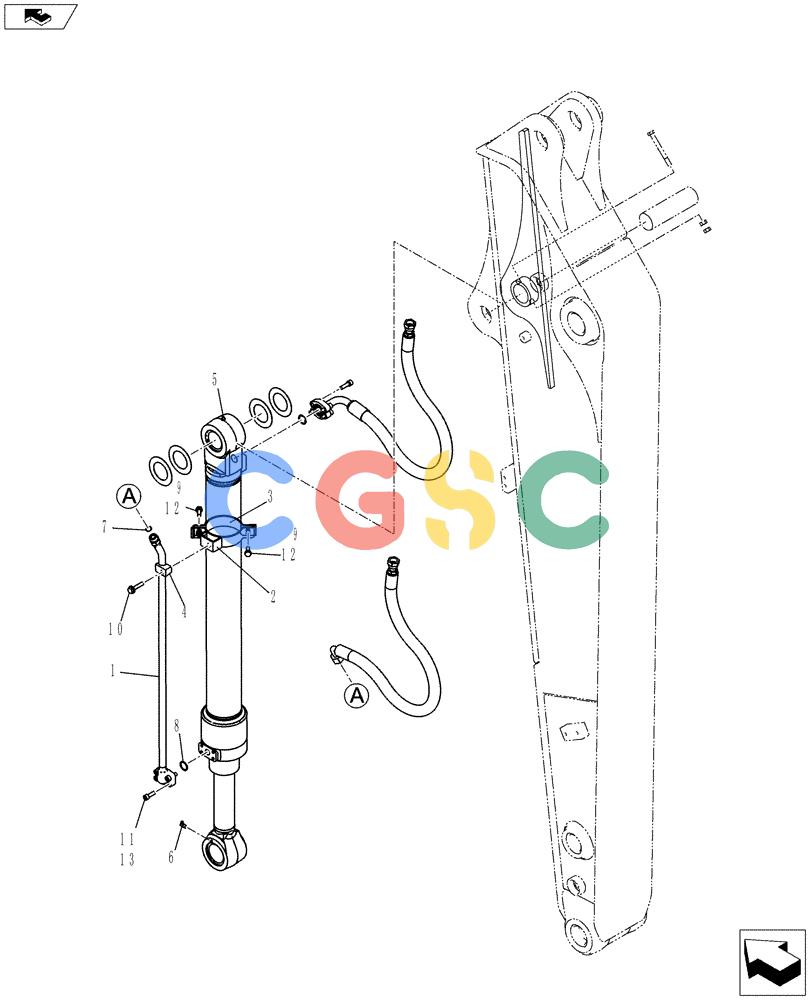

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY43H00082F1 | [1] | Cylinder, Bucket | |
| 1. | YY43H01290P1 | [1] | TUBE | KOB |
| 2. | YY43H01373P1 | [1] | BAND | KOB |
| 3. | YY43H01374P1 | [1] | BAND | KOB |
| 4. | YW43H01049P1 | [1] | CLAMP | KOB |
| 5. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 6. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 7. | ZD12A01600 | [1] | O-RING | KOB |
| 8. | ZD12P02600 | [1] | O-RING | KOB |
| 9. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBCap |
| 10. | ZS18C10050 | [1] | SCREW,Hex, M10 x 50mm | KOBCap |
| 11. | ZS28C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBCap |
| 12. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| 13. | ZW16H10000 | [1] | WASHER | KOB |
