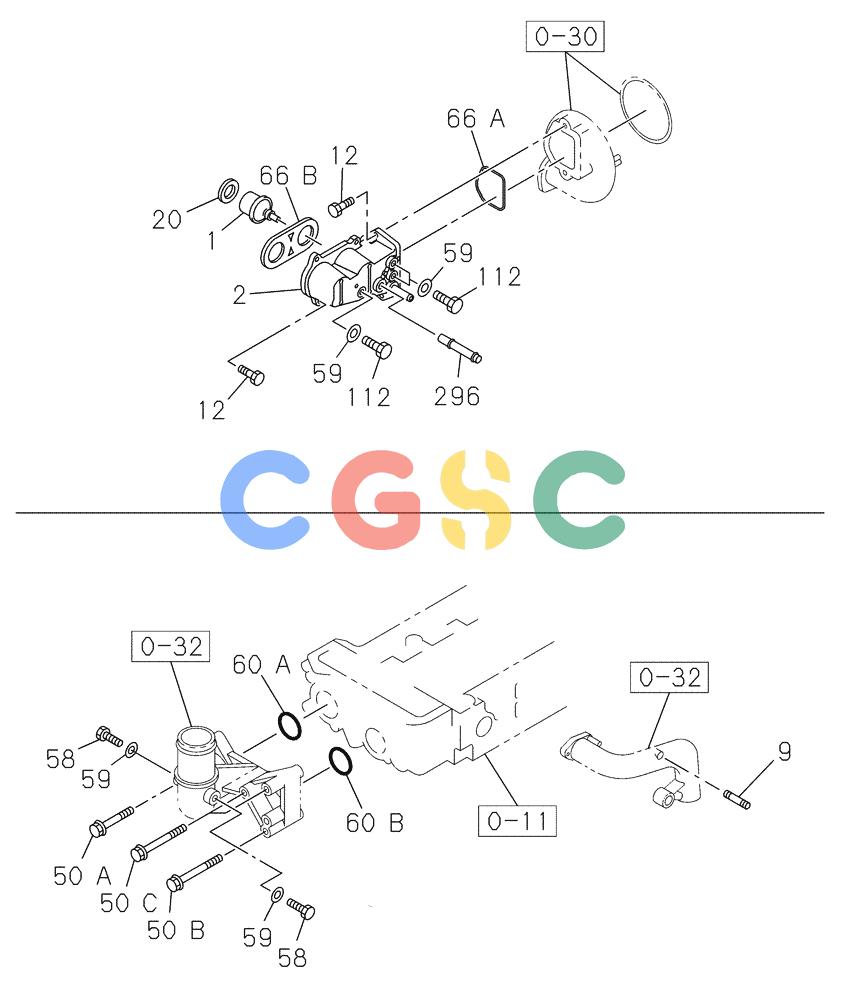

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-031-01[01]) - ENGINE WATER CIRCUIT - THERMOSTAT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
809 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 426196A1 | [2] | THERMOSTAT | ISU Superseded by part number: 47848257 |
| 2. | 87384798 | [1] | BOX | ISU |
| 9. | 87523894 | [1] | STUD | ISU |
| 12. | 419915A1 | [5] | BOLT | ISUM12 x 25 |
| 20. | 426198A1 | [2] | O-RING | ISU |
| 50A. | 288635A1 | [2] | BOLT | ISUM10 x 60 Superseded by part number: 87601343 |
| 50B. | 426199A1 | [2] | BOLT | ISUM10 x 85 |
| 50C. | 426102A1 | [2] | BOLT | ISUM10 x 90 Superseded by part number: 87597043 |
| 58. | 355157A1 | [2] | PLUG | ISU Superseded by part number: 84387716 |
| 59. | 87384800 | [5] | GASKET | ISUID 16.2 - OD 26 |
| 60A. | 438058A1 | [1] | GASKET | ISU |
| 60B. | 426202A1 | [1] | GASKET | ISUID 62.6 |
| 66A. | 438021A1 | [1] | GASKET | ISU |
| 66B. | 426204A1 | [1] | GASKET | ISU Superseded by part number: 72110353 |
| 296. | 87384796 | [1] | FERRULE | ISU Superseded by part number: 71455271 |
