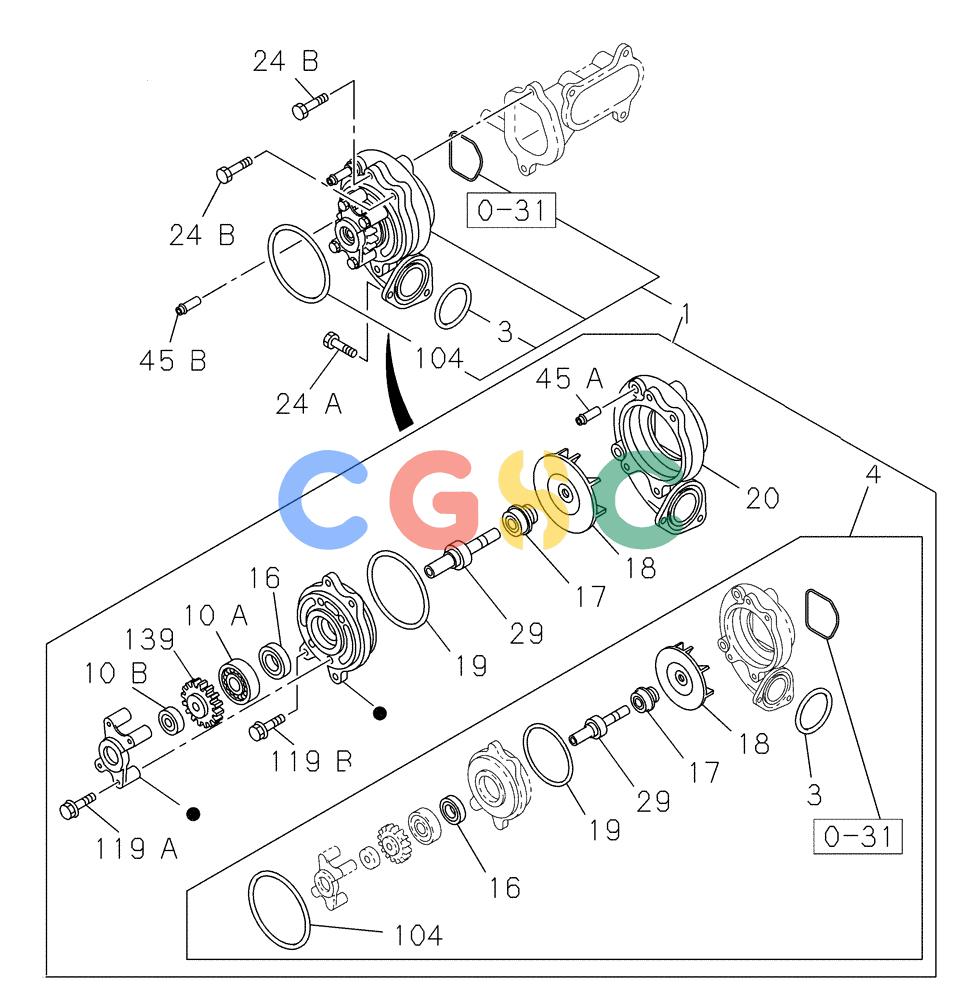

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-030-01[01]) - WATER PUMP SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0-31. | 438021A1 | [1] | GASKET | ISU |
| 1. | 87384788 | [1] | WATER PUMP | ISU Superseded by part number: 87480915 |
| 3. | 426093A1 | [1] | GASKET | ISU Superseded by part number: 72110333 |
| 4. | 426094A1 | [1] | KIT | ISU Superseded by part number: 87707411 |
| 10A. | 426095A1 | [1] | BEARING, BALL | ISU Superseded by part number: 72110335 |
| 10B. | 426096A1 | [1] | BEARING, BALL | ISU Superseded by part number: 72110336 |
| 16. | 426097A1 | [1] | OIL SEAL | ISU |
| 17. | 426098A1 | [1] | SEAL | ISU Superseded by part number: 72109680 |
| 18. | 426099A1 | [1] | IMPELLER | ISU Superseded by part number: 87705741 |
| 19. | 87384793 | [1] | GASKET | ISU |
| 20. | 87384794 | [1] | COVER | ISU |
| 24A. | 419915A1 | [2] | BOLT | ISUM10 x 25 |
| 24B. | 426102A1 | [4] | BOLT | ISUM10 x 90 Superseded by part number: 87597043 |
| 29. | 426103A1 | [1] | BALL BEARING | ISU |
| 45A. | 87384795 | [1] | FERRULE | ISU |
| 45B. | 87384796 | [1] | FERRULE | ISU Superseded by part number: 71455271 |
| 104. | 426105A1 | [1] | GASKET | ISU |
| 119A. | 288984A1 | [4] | BOLT | ISUM8 x 40 |
| 119B. | 288993A1 | [1] | FLANGE BOLT | ISUM10 x 20 |
| 139. | 87384797 | [1] | GEAR | ISU |
