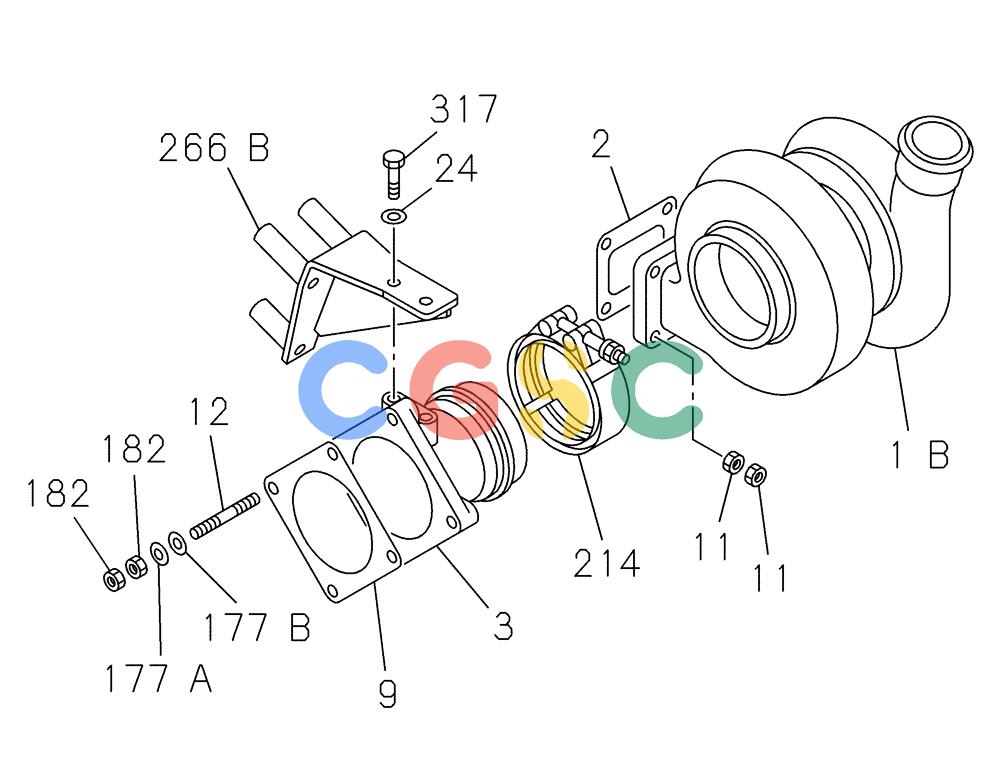

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-036-01[01]) - TURBOCHARGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
471 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1B. | 87361318 | [1] | TURBOCHARGER | ISU Superseded by part number: 84593946 |
| 2. | 87376877 | [1] | GASKET | ISU |
| 3. | 87385605 | [1] | EXHAUST SYSTEM PIPE | ISU |
| 9. | 87385606 | [1] | GASKET | ISU |
| 11. | 426260A1 | [8] | NUT | ISUM10 Superseded by part number: 71455342 |
| 12. | 87385607 | [4] | STUD | ISU |
| 24. | 426259A1 | [2] | WASHER | ISU |
| 177A. | 87385608 | [4] | WASHER | ISU |
| 177B. | 87385609 | [4] | WASHER | ISU |
| 182. | 87385610 | [8] | NUT | ISU |
| 214. | 76550160 | [1] | COLLAR | ISU Superseded by part number: 84164742 |
| 266B. | 87385623 | [1] | BRACKET | ISU |
| 317. | 87385625 | [2] | BOLT | ISU |
