纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (02-033-01[01]) - BELT AND VENTILATOR - FAN GUARD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
615 次

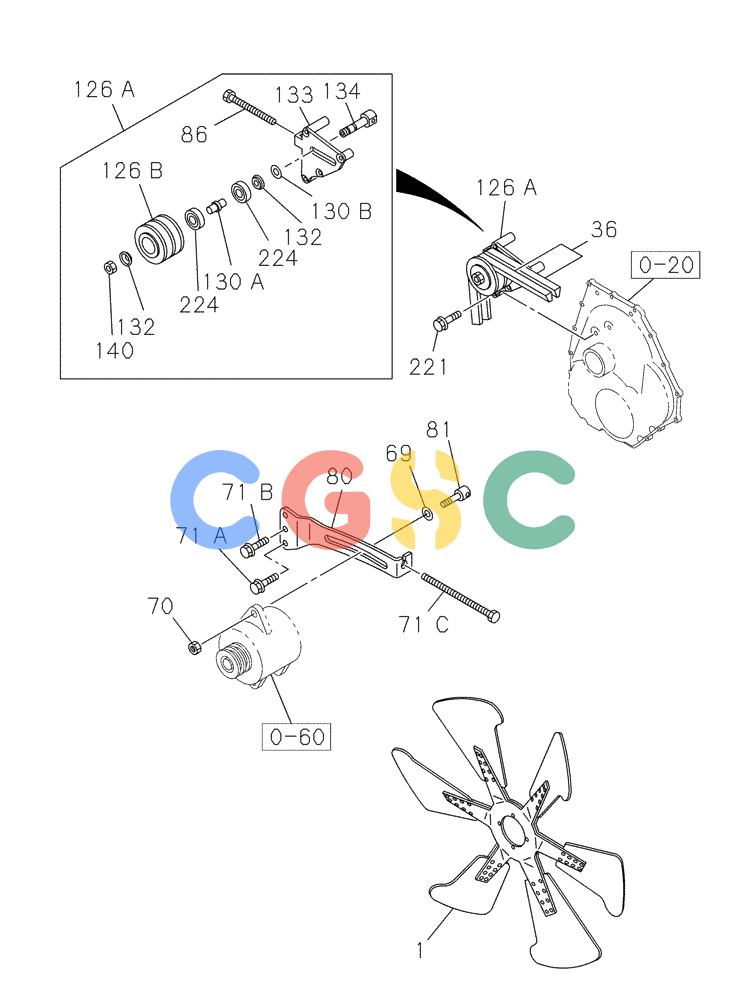

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 443709A1 | [1] | FAN | ISU |
| 36. | 87365588 | [1] | V-BELT | ISU |
| 69. | 289793A1 | [2] | WASHER | ISUID 12 |
| 71A. | 419915A1 | [1] | BOLT | ISUM10 x 25 |
| 71B. | 426465A1 | [1] | BOLT | ISUM10 x 110 |
| 71C. | 289049A1 | [1] | BOLT | ISUM10 x 135 |
| 80. | 443678A1 | [1] | TENSIONER | ISU |
| 81. | 288759A1 | [1] | SCREW | ISUM12 x 59 |
| 126A. | 87384840 | [1] | PULLEY | ISU |
| 126B. | 87523892 | [1] | PULLEY | ISU |
| 130A. | 87384842 | [1] | SPACER | ISU |
| 130B. | 87384843 | [1] | SPACER | ISU |
| 132. | 87385601 | [2] | DUST CAP | ISU |
| 133. | 87385602 | [1] | BRACKET | ISU |
| 134. | 87385603 | [1] | SPINDLE | ISU |
| 140. | 443703A1 | [1] | NUT | ISUM18 Superseded by part number: 84187994 |
| 221. | 437852A1 | [4] | BOLT | ISUM10 x 80 |
| 224. | 87385604 | [2] | BALL BEARING | ISU |
