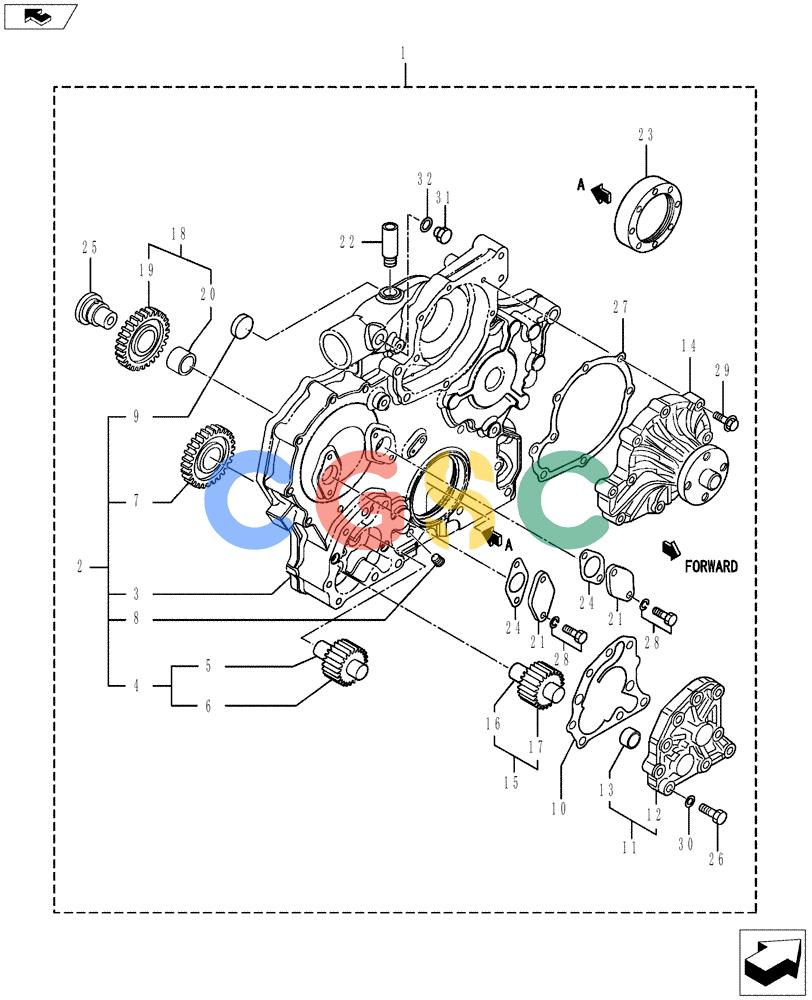

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-008[01]) - TIMING GEAR CASE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA32G1120012 | [1] | CASE | KOBGear |
| 2. | VA32G1121012 | [1] | BODY | KOB Superseded by part number: VAF251510000, VA32G1120020, VA32G4501400, VAMF241271 |
| 3. | VA32G1100020 | [1] | HOUSING | KOBCase, Timing Gear Superseded by part number: VA32G1120020 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONGear Assy., Drive |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONShaft |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONGear, Oil Pump |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONGear, O/P Drive |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 9. | VAMF665537 | [1] | CAP | KOBSealing |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONGasket, Oil Pump |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONCover, Assy. |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONCover, Oil Pump |
| 13. | NSS | [2] | NOT SOLD SEPARAT | CONPin, Dowel |
| 14. | VA32G4511010 | [1] | WATER PUMP | KOBAssy. Superseded by part number: VA32G4521010 |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONGear Assy, Driven |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONShaft |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONGear, Oil Pump |
| 18. | NSS | [1] | NOT SOLD SEPARAT | CONGear Assy., Oil Pump |
| 19. | NSS | [1] | NOT SOLD SEPARAT | CONGear, Oil Pump Idler |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONBushing |
| 21. | VA3040705600 | [2] | COVER | KOB |
| 22. | VA3164509801 | [1] | JOINT | KOB |
| 23. | VA3431100800 | [1] | GASKET | KOBSeal, Oil |
| 24. | VA3431104400 | [2] | GASKET | KOBCover Timing |
| 25. | NSS | [1] | NOT SOLD SEPARAT | CONSpindle, O/P Idler |
| 26. | VAF115510040 | [5] | BOLT | KOB |
| 27. | VA32G4500300 | [1] | GASKET | KOBWater Pump |
| 28. | VAF180508020 | [4] | BOLT | KOBW/Washer |
| 29. | VAMF140433 | [4] | FLANGE BOLT | KOB |
| 30. | VAF250010000 | [5] | SPRING WASHER | KOBPlain |
| 31. | VAF500016000 | [1] | DRAIN PLUG | KOB |
| 32. | VA0594601601 | [1] | WASHER, SEALING | KOBSEAL WASHER |
