神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-016[00]) - TIMING GEAR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
740 次

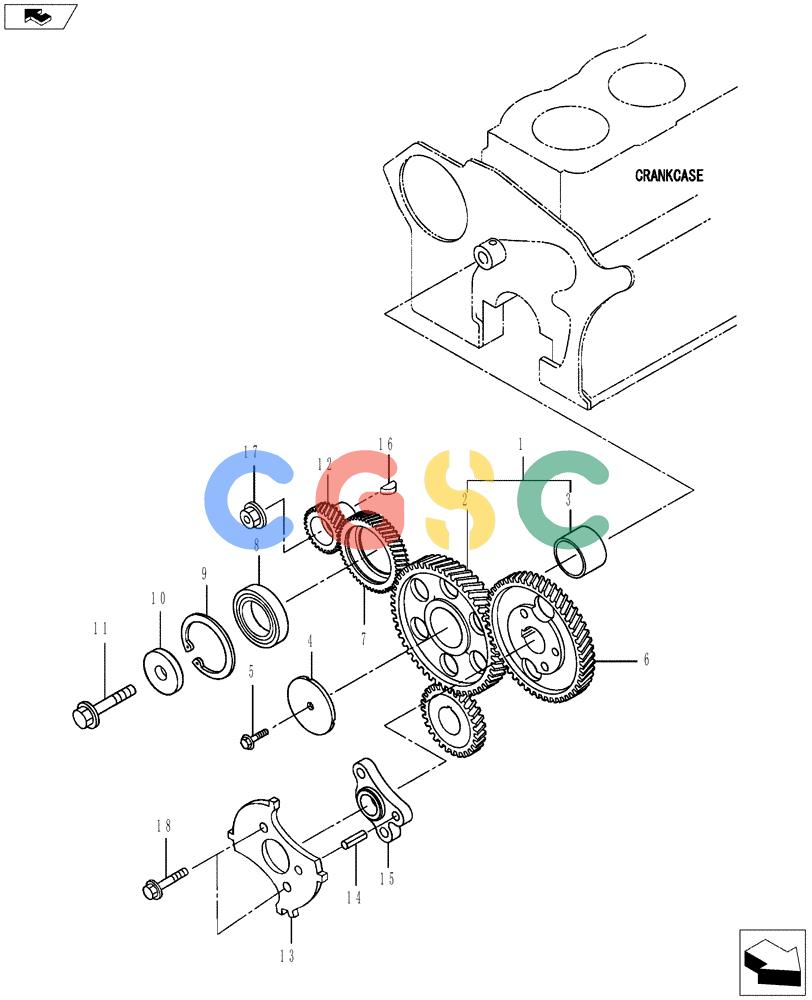

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA32G2302011 | [1] | Idler Gear | |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONGear, Idler |
| 3. | VA3432300601 | [1] | BUSHING | KOBIdler |
| 4. | VA32F2303200 | [1] | THRUST PLATE | KOB |
| 5. | VA3432301601 | [1] | Flange | |
| 6. | VA32G2301101 | [1] | GEAR | KOBCamshaft |
| 7. | VA32G2300301 | [1] | GEAR | KOBInj. Pump Idler |
| 8. | VA32G2304300 | [1] | BALL BEARING | KOB |
| 9. | VAF320206200 | [1] | SNAP RING | KOB |
| 10. | VA3434805800 | [1] | WASHER | KOB |
| 11. | VAMF140460 | [1] | FLANGE BOLT | KOB |
| 12. | VA32G2300401 | [1] | GEAR | KOBInj. Pump |
| 13. | VA32G2311300 | [1] | PLATE | KOBTiming |
| 14. | VAF285008022 | [1] | Spring | |
| 15. | VA32G2311200 | [1] | SPACER | KOBTiming Plate |
| 16. | VAF287004016 | [1] | WOODRUFF KEY | KOB |
| 17. | VA41A0500400 | [1] | FLANGE NUT | KOB |
| 18. | VAMF140229 | [2] | BOLT | KOBFlange |
