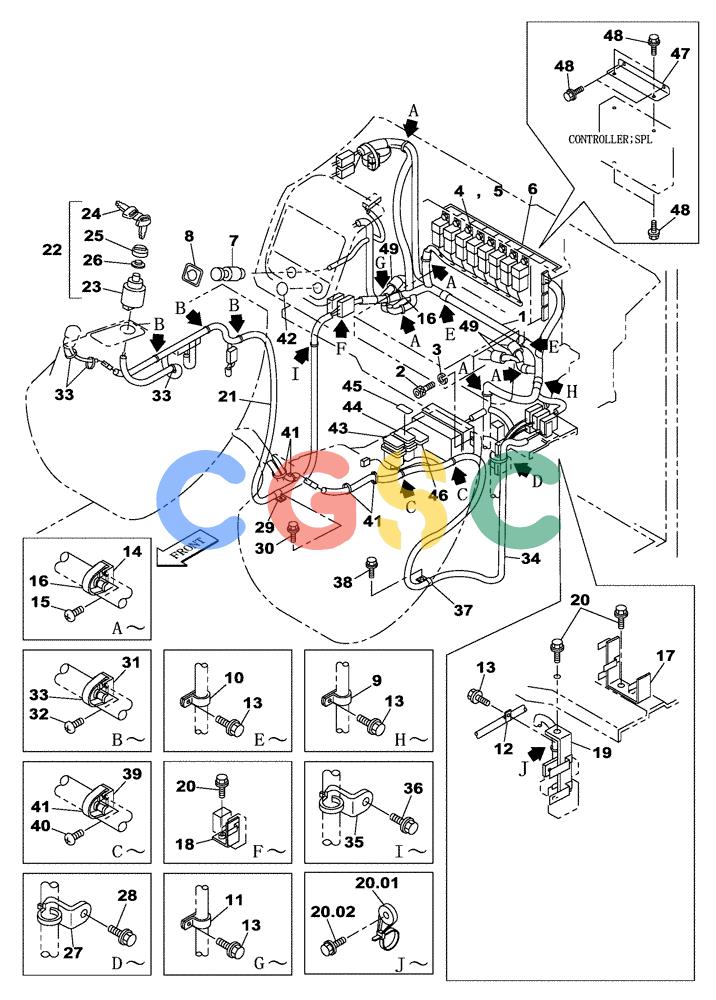

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (04-004-00[01]) - OPERATORS COMPARTMENT ELECTRIC CIRCUIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
817 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KHR13130 | [1] | WIRE HARNESS | SUM |
| 2. | 108R006Y020R | [2] | BOLT | SUMM6 x 20 |
| 3. | 892-11006 | [2] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 4. | 159919A1 | [8] | RELAY | SUM |
| 5. | 159602A1 | [8] | BOLT,Sems, Hex, M6 x 16mm | SUMM6 x 16 |
| 6. | KHP1937 | [1] | DECAL | SUM |
| 7. | KHR2488 | [1] | LIGHTER, CIGARETTE | SUM |
| 8. | KHR3141 | [1] | PROTECTOR | SUM |
| 9. | 159149A1 | [1] | COLLAR | SUM |
| 10. | 157807A1 | [2] | COLLAR | SUM |
| 11. | 157806A1 | [1] | COLLAR | SUM |
| 12. | 159150A1 | [1] | COLLAR | SUM |
| 14. | 150860A1 | [5] | COLLAR | SUM |
| 15. | 840-168 | [5] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 16. | 150067A1 | [6] | MOUNTING CLIP | SUM150 mm |
| 17. | KHR4304 | [1] | BRACKET | SUM |
| 18. | KHR2747 | [1] | BRACKET | SUM |
| 19. | KHR13420 | [1] | SUPPORT | SUM |
| 20. | 166345A1 | [3] | BOLT | SUMM8 x 16 Superseded by part number: 105R008Y016R |
| 20.01. | KHR2583 | [1] | CLAMP | SUM |
| 21. | KHR4306 | [1] | HARNESS | SUM |
| 22. | KHR3270 | [1] | IGNITION SWITCH | SUM |
| 23. | KHR3078 | [1] | IGNITION SWITCH | SUM |
| 24. | 150979A1 | [2] | IGNITION KEY | SUM Superseded by part number: KHR20070 |
| 25. | KHR3080 | [1] | CAP | SUM |
| 26. | KHR3081 | [1] | WASHER | SUM |
| 27. | KHR2580 | [1] | CLAMP | SUM Superseded by part number: KHR2583 |
| 28. | 159905A1 | [1] | BOLT,Sems, Hex, M6 x 25mm, Spcl | SUMM6 x 25 |
| 30. | 156559A1 | [1] | BOLT,High Strength, Hex, M6 x 12mm, W/ LW | SUMM6 x 12 |
| 34. | KHR4302 | [1] | HARNESS | SUM |
| 42. | KHR2743 | [1] | CAP COVER | SUM |
| 43. | KHR3718 | [1] | SWITCH | SUM |
| 44. | KHR4247 | [1] | SWITCH | SUM Superseded by part number: KHR15280 |
| 45. | KHP10850 | [1] | DECAL | SUM |
| 46. | KHR2913 | [1] | CAP | SUM |
| 47. | KHR4303 | [1] | BRACKET | SUM |
| 49. | KHR13870 | [3] | COLLAR | SUM |
