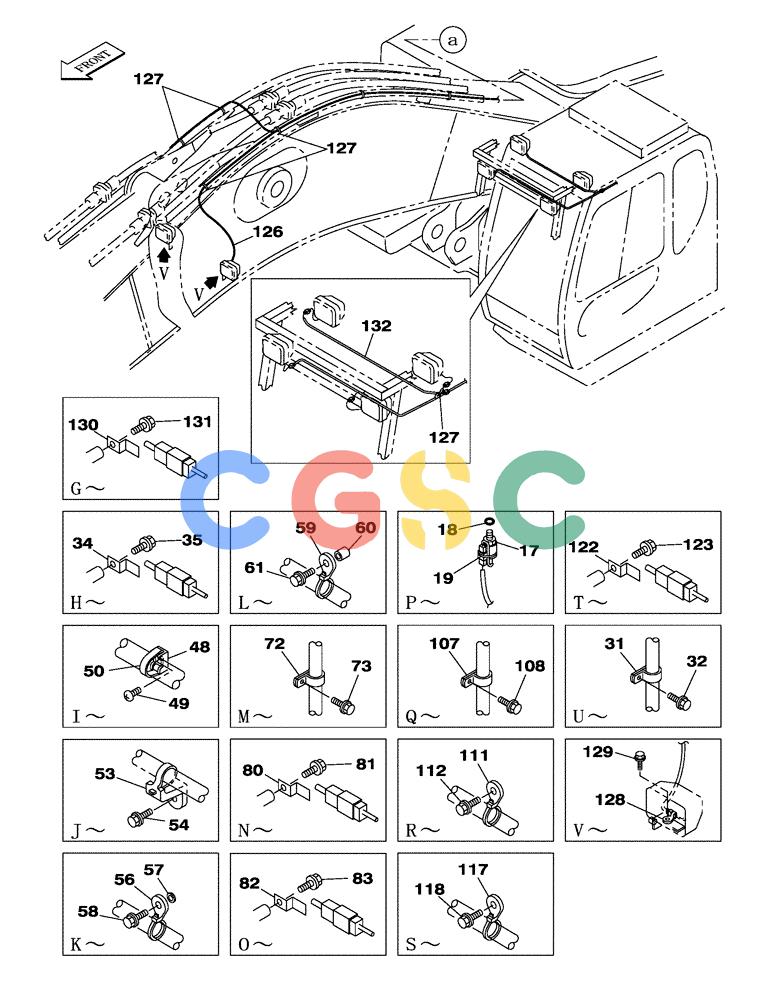

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (04-003-00[01]) - CHASSIS ELECTRICAL CIRCUIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
372 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 17. | KHR10790 | [2] | PRESSURE SWITCH | SUM Superseded by part number: KHR24000 |
| 18. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 19. | 150067A1 | [2] | MOUNTING CLIP | SUM |
| 31. | 162150A1 | [1] | CLAMP | SUM |
| 32. | 167518A1 | [1] | BOLT | SUMM6 x 16 |
| 34. | 158962A1 | [1] | CLIP | SUM |
| 48. | 150860A1 | [3] | COLLAR | SUM |
| 49. | 840-168 | [3] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 50. | 150496A1 | [2] | MOUNTING CLIP | SUM250 mm |
| 53. | KHR2581 | [4] | CLAMP | SUM |
| 54. | KHJ1215 | [4] | BOLT,Spcl | SUMM8 x 25 |
| 56. | KHR2584 | [1] | CLAMP | SUM |
| 57. | 153081A1 | [1] | WASHER | SUMW M8 |
| 59. | KHR2583 | [1] | CLAMP | SUM |
| 60. | 152158A1 | [1] | SPACER | SUM |
| 61. | KHR1832 | [1] | SPECIAL BOLT | SUMM5 x 25 |
| 80. | 158963A1 | [1] | CLIP | SUM |
| 122. | 165405A1 | [1] | CLIP | SUM |
| 123. | 156559A1 | [1] | BOLT,High Strength, Hex, M6 x 12mm, W/ LW | SUMM6 x 12 |
| 126. | KHR3731 | [1] | HARNESS | SUM |
| 129. | 159906A1 | [2] | BOLT,Sems, Hex, M6 x 20mm, Spcl | SUMM6 x 20 |
| 132. | KHR3732 | [1] | HARNESS | SUM |
