沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentFresh-water CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1014 次

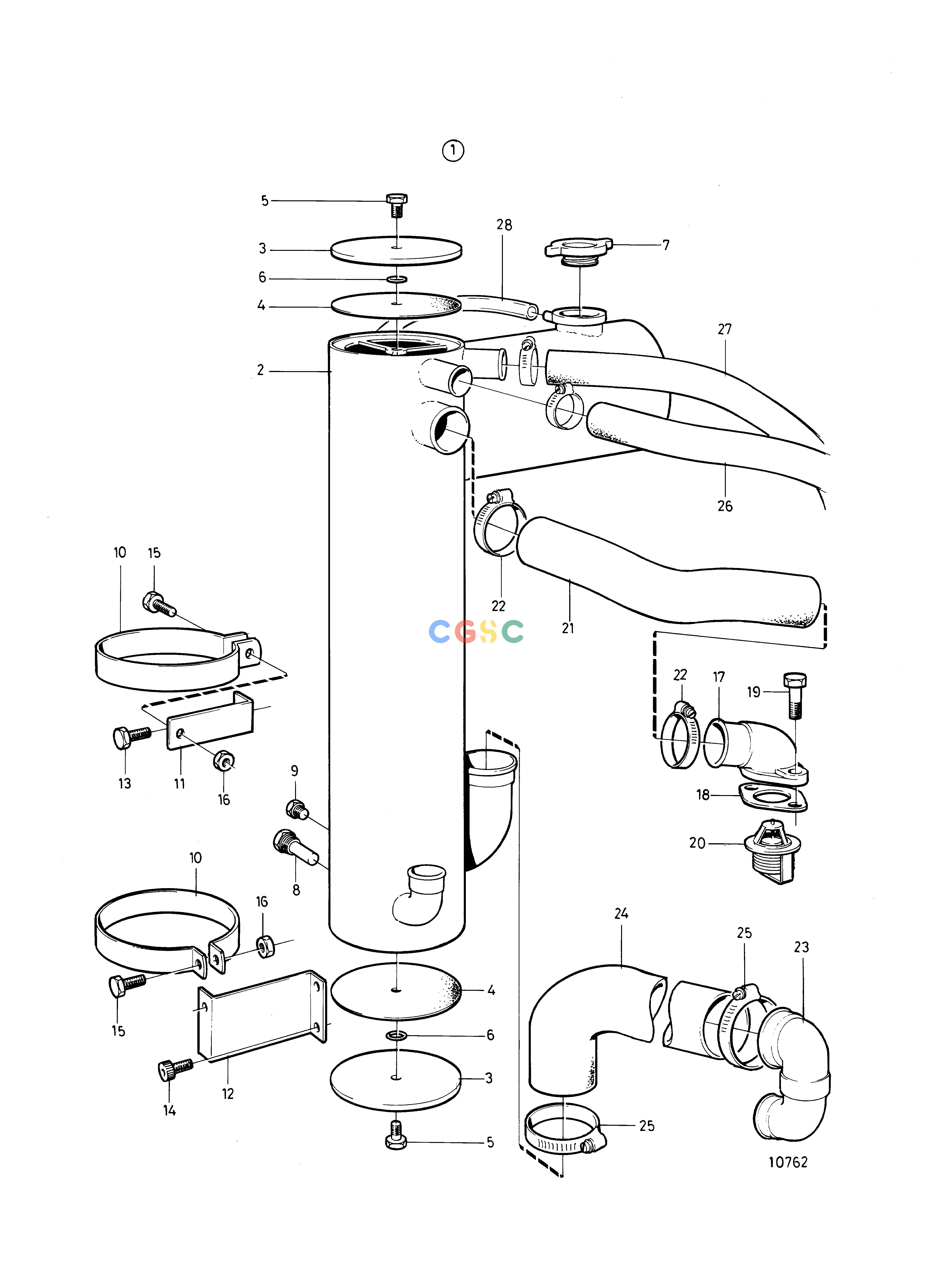

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
855641
|
[1] |
Freshwater cooling k
|
|
| 2. |
855695
|
[1] |
Heat exchanger
|
Repl by 855641
|
| 3. |
841911
|
[2] |
Cap
|
|
| 4. |
841912
|
[2] |
Gasket
|
|
| 5. |
841068
|
[2] |
Bolt
|
|
| 6. |
925054
|
[2] |
O-ring
|
|
| 7. |
841917
|
[1] |
Pressure cap
|
|
| 8. |
841063
|
[1] |
Zinc anode
|
|
| 9. |
180759
|
[1] |
Plug
|
|
| 10. |
855696
|
[2] |
Clamp
|
|
| 11. |
855697
|
[1] |
Bracket
|
Upper
|
| 12. |
855698
|
[1] |
Bracket
|
Lower
|
| 13. |
955534
|
[1] |
Hexagon screw
|
|
| 14. |
956582
|
[2] |
Hex. socket screw
|
|
| 15. |
940115
|
[2] |
Hexagon screw
|
|
| 16. |
955827
|
[2] |
Hexagon nut
|
|
| 17. |
834890
|
[1] |
Water outlet pipe
|
|
| 18. |
835417
|
[1] |
Gasket
|
|
| 19. |
940115
|
[2] |
Hexagon screw
|
|
| 20. |
418991
|
[1] |
Thermostat
|
71°C
|
| 21. |
855699
|
[1] |
Hose
|
|
| 22. |
961672
|
[2] |
Hose clamp
|
|
| 23. |
841059
|
[1] |
Pipe elbow
|
|
| 24. |
952972
|
[1] |
Hose
|
L=300mm
|
| 25. |
853548
|
[2] |
Hose clamp
|
|
| 26. |
952970
|
[1] |
Hose
|
L=720mm
|
| 27. |
952970
|
[1] |
Hose
|
|
| 28. |
941149
|
[1] |
Hose
|
L=600mm
|
