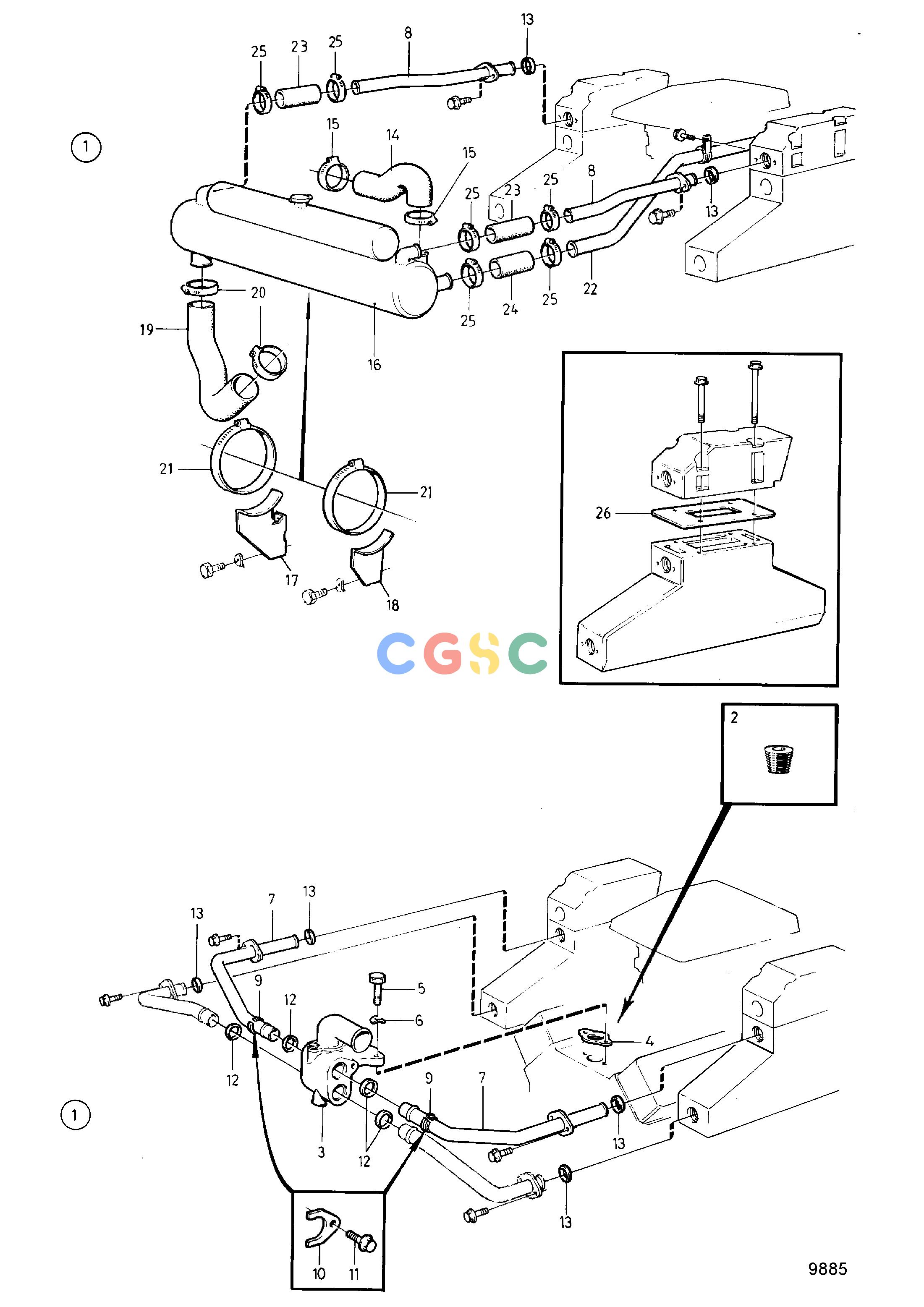

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentFreshwater CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
856480
|
[1] |
Freshwater cooling k
|
|
| 2. |
952077
|
[1] |
Plug
|
|
| 3. |
|
|
|
|
| 4. |
835417
|
[1] |
Gasket
|
|
| 5. |
955538
|
[2] |
Hexagon screw
|
|
| 6. |
942336
|
[2] |
Spring washer
|
|
| 7. |
855983
|
[2] |
Coolant pipe
|
|
| 8. |
855984
|
[2] |
Coolant pipe
|
|
| 9. |
847108
|
[2] |
Pipe retainer
|
|
| 10. |
856452
|
[2] |
Brace
|
|
| 11. |
965175
|
[4] |
Flange screw
|
|
| 12. |
858986
|
[4] |
Sealing ring
|
|
| 13. |
842913
|
[6] |
Sealing ring
|
|
| 14. |
856529
|
[1] |
Hose
|
|
| 15. |
943479
|
[2] |
Hose clamp
|
|
| 16. |
856675
|
[1] |
Heat exchanger
|
|
| 16. |
|
|
|
See group 2B
|
| 17. |
856661
|
[1] |
Bracket
|
|
| 18. |
856662
|
[1] |
Bracket
|
|
| 19. |
856227
|
[1] |
Hose
|
|
| 20. |
961671
|
[2] |
Hose clamp
|
|
| 21. |
853012
|
[2] |
Hose clamp
|
|
| 22. |
856311
|
[1] |
Coolant pipe
|
|
| 23. |
944386
|
[1] |
Rubber hose
|
L=2X100mm
|
| 24. |
969149
|
[1] |
Rubber hose
|
L=100mm
|
| 25. |
853548
|
[6] |
Hose clamp
|
(961668)
|
| 26. |
855997
|
[2] |
Gasket
|
|
