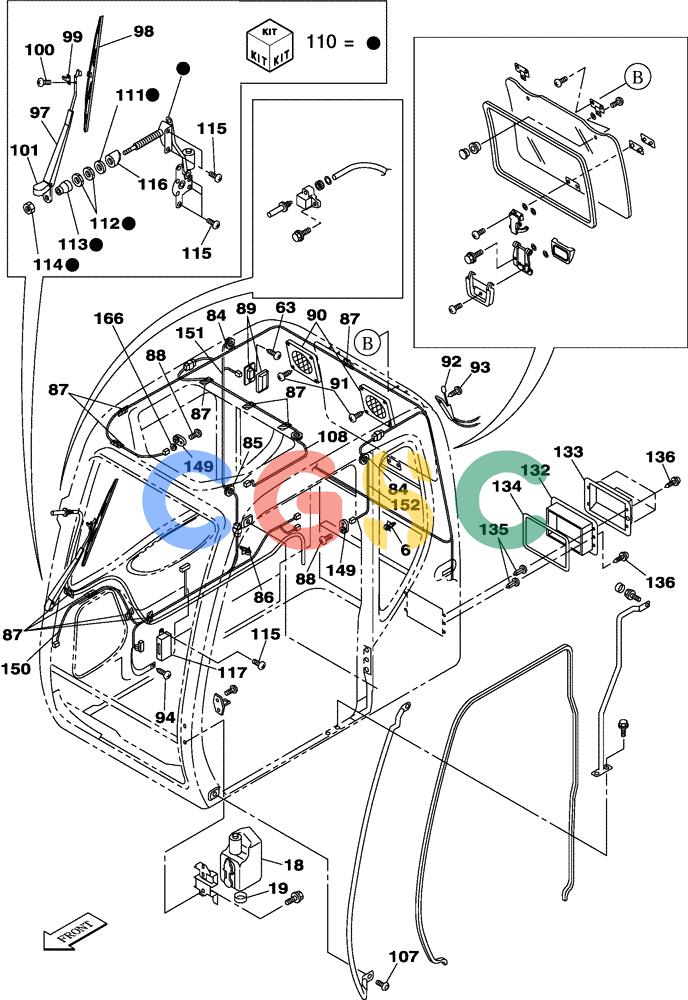

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (04-012-00[01]) - CAB - ELECTRICAL CIRCUIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
328 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 6. | 161381A1 | [4] | COLLAR | SUM |
| 18. | 161374A1 | [1] | RESERVOIR ASSY. | SUM |
| 19. | KHN2506 | [1] | PLUG | SUM |
| 63. | KHN2687 | [4] | SCREW,Spcl | SUMM5 x 14 |
| 84. | KHN2709 | [2] | GROMMET | SUM |
| 85. | KHN2710 | [1] | GROMMET | SUM |
| 86. | KHN2711 | [1] | CABLE CLIP | SUM |
| 87. | KHN2712 | [7] | FASTENER | SUM |
| 88. | KHN2713 | [2] | SCREW,Spcl | SUMM5 x 16 |
| 89. | KHN2714 | [1] | COURTESY LIGHT | SUMDOME LIGHT |
| 90. | KHN2935 | [2] | SIEVE | SUM |
| 91. | KHN2716 | [8] | SCREW,Spcl | SUMM4 x 12 |
| 92. | KHN2717 | [1] | ANTENNA | SUM |
| 93. | KHN2718 | [1] | SCREW,Spcl | SUMM3,5 x 16 |
| 94. | KHN2719 | [1] | SCREW,Spcl | SUMM6 x 12 |
| 97. | KHN2730 | [1] | WIPER ARM | SUM |
| 98. | KHN2731 | [1] | WIPER BLADE | SUM Superseded by part number: 47669099 |
| 99. | KHN2732 | [1] | ADAPTER | SUM |
| 100. | KHN2733 | [2] | SCREW,Spcl | SUM |
| 101. | KHN2734 | [1] | CAP ASSY. | SUM |
| 108. | KHR3349 | [1] | HARNESS | SUM |
| 110. | KHN3544 | [1] | WIPER MOTOR | SUM |
| 111. | KHN2737 | [1] | WASHER | SUM |
| 112. | KHN2738 | [2] | SPECIAL NUT | SUM |
| 113. | KHN2739 | [1] | CAP | SUM |
| 114. | KHN2740 | [1] | SPECIAL NUT | SUM Superseded by part number: KBH0446 |
| 115. | KHN2741 | [8] | SCREW,Spcl | SUMM6 x 1 x 16 |
| 116. | KHN2742 | [1] | SPACER | SUM |
| 117. | KHN3392 | [1] | ECU | SUM |
| 117. | KHN3392R | [1] | REMAN-ELECTRONIC CONTROL UNIT | RACE805 CRAWLER EXCAVATOR TIER 3 (7/06-) |
| 117. | KHN3392C | [1] | CORE-ELECTRONIC CONTROL UNIT | RACReturn Number |
| 132. | KHN2769 | [1] | COVER | SUM |
| 133. | KHN2770 | [1] | HOUSING | SUM |
| 134. | KHN2771 | [1] | SEAL | SUM |
| 135. | KHN2772 | [5] | GROMMET | SUM |
| 136. | KHN2773 | [5] | SCREW,Spcl | SUM |
| 149. | KHR2950 | [2] | LIMIT SWITCH | SUM |
| 150. | KHR4121 | [1] | HARNESS | SUM |
| 151. | KHR3190 | [1] | HARNESS | SUM |
| 152. | KHR3191 | [1] | HARNESS | SUM |
| 166. | KHN3681 | [1] | SPACER | SUM |
