神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-029[00]) - FUEL SYSTEM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
332 次

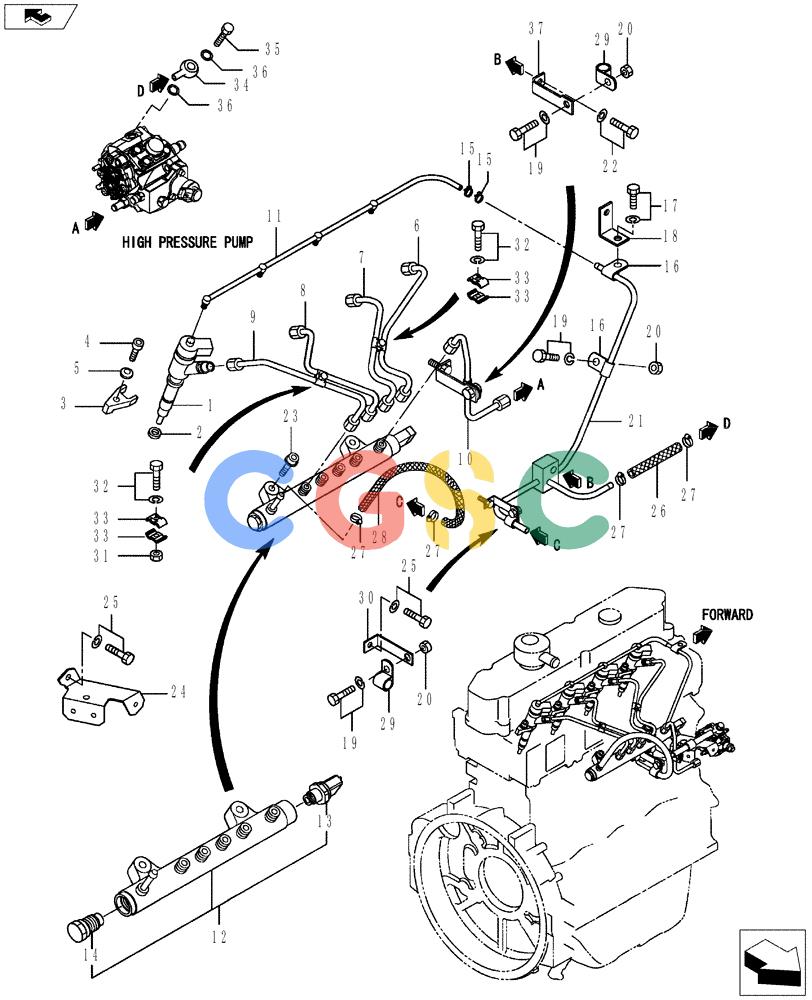

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA32G6100010 | [4] | FUEL SYSTEM INJECTOR | KOBAssy. Superseded by part number: |
| . . | VA32G6100010R | [4] | REMAN-INJECT NOZZLE | KOBED150-2 Blade Runner ASN LH01-01001 |
| . . | VA32G6100010C | [1] | CORE-NOZZLE, INJECT | KOBReturn Number |
| 2. | VA3436100700 | [4] | SEAL | KOBNozzle |
| 3. | VA32G6100100 | [4] | GLAND | KOBNozzle |
| 4. | VAF121008030 | [4] | BOLT | KOBHexagon Socket |
| 5. | VA32F6101800 | [4] | SPECIAL WASHER | KOBSpherical |
| 6. | VA32G6103400 | [1] | INJECTION PIPE | KOBNo.1 |
| 7. | VA32G6103500 | [1] | INJECTION PIPE | KOBNo.2 |
| 8. | VA32G6103600 | [1] | INJECTION PIPE | KOBNo.3 |
| 9. | VA32G6103700 | [1] | INJECTION PIPE | KOBNo.4 |
| 10. | VA32G6103900 | [1] | PIPE | KOBFuel |
| 11. | VA32G6112100 | [1] | HOSE | KOBLeak Off |
| 12. | VA32G6100900 | [1] | RAIL ASSY. | KOBCommon Superseded by part number: VA32G6100901 |
| 12A. | VA32G6109100 | [1] | SENSOR | KOB(Not Shown) Common Rail Pressure Sensor Superseded by part number: VA32G6109101 |
| 12B. | VA32G6109200 | [1] | VALVE | KOB(Not Shown) Common Rail Pressure Limiting Valve |
| 13. | VA32G6109100 | [1] | SENSOR | KOBRail, Press Superseded by part number: VA32G6109101 |
| 14. | VA32G6109200 | [1] | VALVE | KOBRail, Press |
| 15. | VAF430000800 | [2] | CLAMP | KOBHose |
| 16. | VAMH020428 | [2] | CLIP | KOB |
| 17. | VAF180508020 | [1] | BOLT | KOBW/Washer |
| 18. | VA32G8708101 | [1] | BRACKET | KOBHarness |
| 19. | VAF180510020 | [3] | BOLT | KOBW/Washer |
| 20. | VAF230510000 | [3] | NUT | KOB |
| 21. | VA32G6114200 | [1] | PIPE | KOBFuel Return |
| 22. | VAMF241261 | [1] | BOLT | KOBW/Washer |
| 23. | VAMF140231 | [2] | BOLT | KOBFlange |
| 24. | VA32G8708501 | [1] | BRACKET | KOBHarness |
| 25. | VAMF241252 | [2] | BOLT | KOBW/Washer |
| 26. | VAMS603004 | [1] | FLEXIBLE HOSE | KOBFuel Superseded by part number: VAMS603006 |
| 27. | VA0531750161 | [4] | CLAMP | KOB |
| 28. | VAMS602023 | [1] | FLEXIBLE HOSE | KOBFuel |
| 29. | VAMH020429 | [2] | CLIP | KOB Superseded by part number: VAMH020801 |
| 30. | VA32G6105301 | [1] | BRACKET | KOB |
| 31. | VAF230006000 | [1] | NUT | KOB |
| 32. | VAF180506025 | [2] | BOLT | KOBW/Washer |
| 33. | VAMM430703 | [4] | CLAMP | KOB Superseded by part number: VAMM43070301 |
| 34. | VAMM413206 | [1] | UNION | KOBColor |
| 35. | VA3406106200 | [1] | EYEBOLT | KOBJoint |
| 36. | VAMD070717 | [2] | SEAL | KOBHolder |
| 37. | VA32G6105101 | [1] | BRACKET | KOBFuel Pipe |
