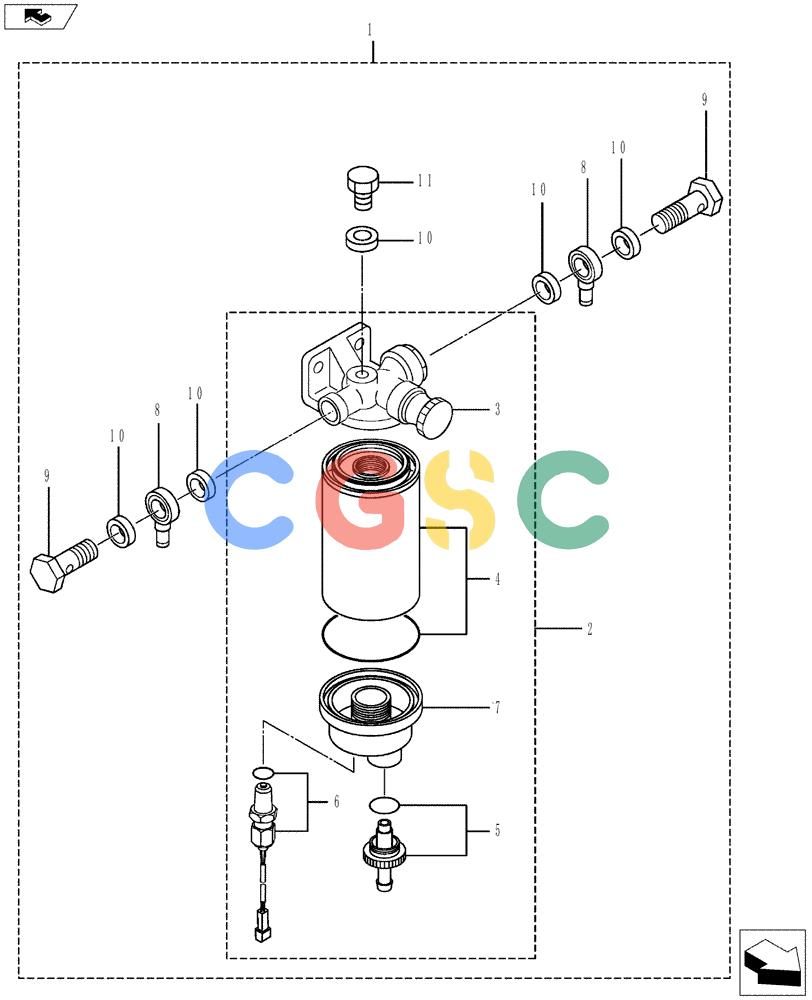

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (08-030[00]) - FUEL FILTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONFilter Assy., Fuel |
| 2. | VA32G6211010 | [1] | FUEL FILTER | KOBFilter Assy., Fuel Superseded by part number: VA32G6221010 |
| 3. | VA32G6202010 | [1] | HEAD | KOBAssy. |
| 4. | VA32G6200100 | [1] | ELEMENT | KOBF/F Superseded by part number: 47555456 |
| 5. | VA32G6202020 | [1] | SCREW | KOBAssy., Valve |
| 6. | VA32G9000300 | [1] | SENSOR | KOBWater Superseded by part number: VA32G9010300 |
| 7. | VA32G6202100 | [1] | CUP | KOBF/F |
| 8. | VA32A6102900 | [2] | LUBE NIPPLE | KOBNIPPLE, LUBE Swiveling |
| 9. | VAF461014000 | [2] | EYEBOLT | KOB |
| 10. | VA0594601401 | [5] | WASHER | KOBSealing |
| 11. | VAF500014000 | [1] | PLUG | KOB |
