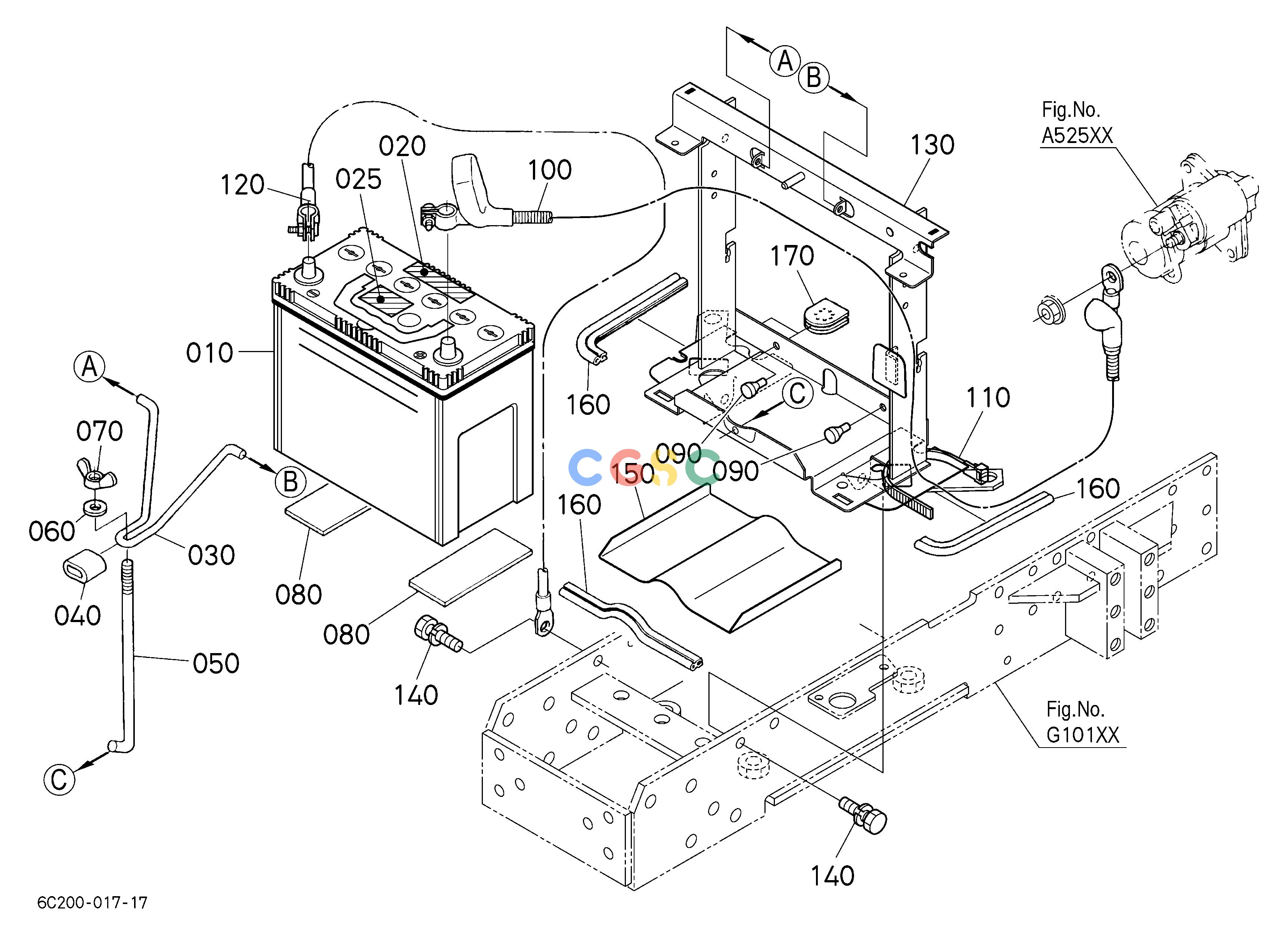

久保田零件查询A53502 BATTERY ## S.No.>=59477 S.No.;>=59477 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
428 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
99999-99999
|
[1] |
ASSY BATTERY
|
0.0000(lbs); 0.000
|
| 020. |
6C39230140
|
[1] |
LABEL(CAUTION)
|
0.0022(lbs); 0.001
|
| 025. |
6C22230150
|
[1] |
LABEL(TYPE)
|
0.0022(lbs); 0.001
|
| 030. |
6C04055553
|
[1] |
RETAINER,BATTERY
|
0.1650(lbs); 0.075
|
| 040. |
6C04055580
|
[1] |
CUSHION
|
0.0044(lbs); 0.002
|
| 050. |
6C04055560
|
[1] |
BOLT,HOOK
|
0.0836(lbs); 0.038
|
| 060. |
0401550060
|
[1] |
WASHER,PLAIN
|
0.0132(lbs); 0.006
|
| 070. |
0281050060
|
[1] |
NUT,WING
|
0.0198(lbs); 0.009
|
| 080. |
3415033220
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 090. |
6C04042342
|
[2] |
CUSHION
|
0.0110(lbs); 0.005
|
| 100. |
6C07055533
|
[1] |
CORD,BATTERY(+)
|
0.5060(lbs); 0.230
|
| 110. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 120. |
6C04055540
|
[1] |
CORD,BATTERY(-)
|
0.2420(lbs); 0.110
|
| 130. |
6C20051228
|
[1] |
BRACKET,BATTERY
|
6.1600(lbs); 2.800
|
| 140. |
0113551025
|
[2] |
BOLT,W SEMS
|
0.0506(lbs); 0.023
|
| 150. |
6C20051260
|
[1] |
COVER
|
0.6072(lbs); 0.276
|
| 160. |
7665042520
|
[3] |
TRIM,DUSTPROOF
|
0.0660(lbs); 0.030
|
| 170. |
6C04051290
|
[2] |
RUBBER
|
0.0066(lbs); 0.003
|
