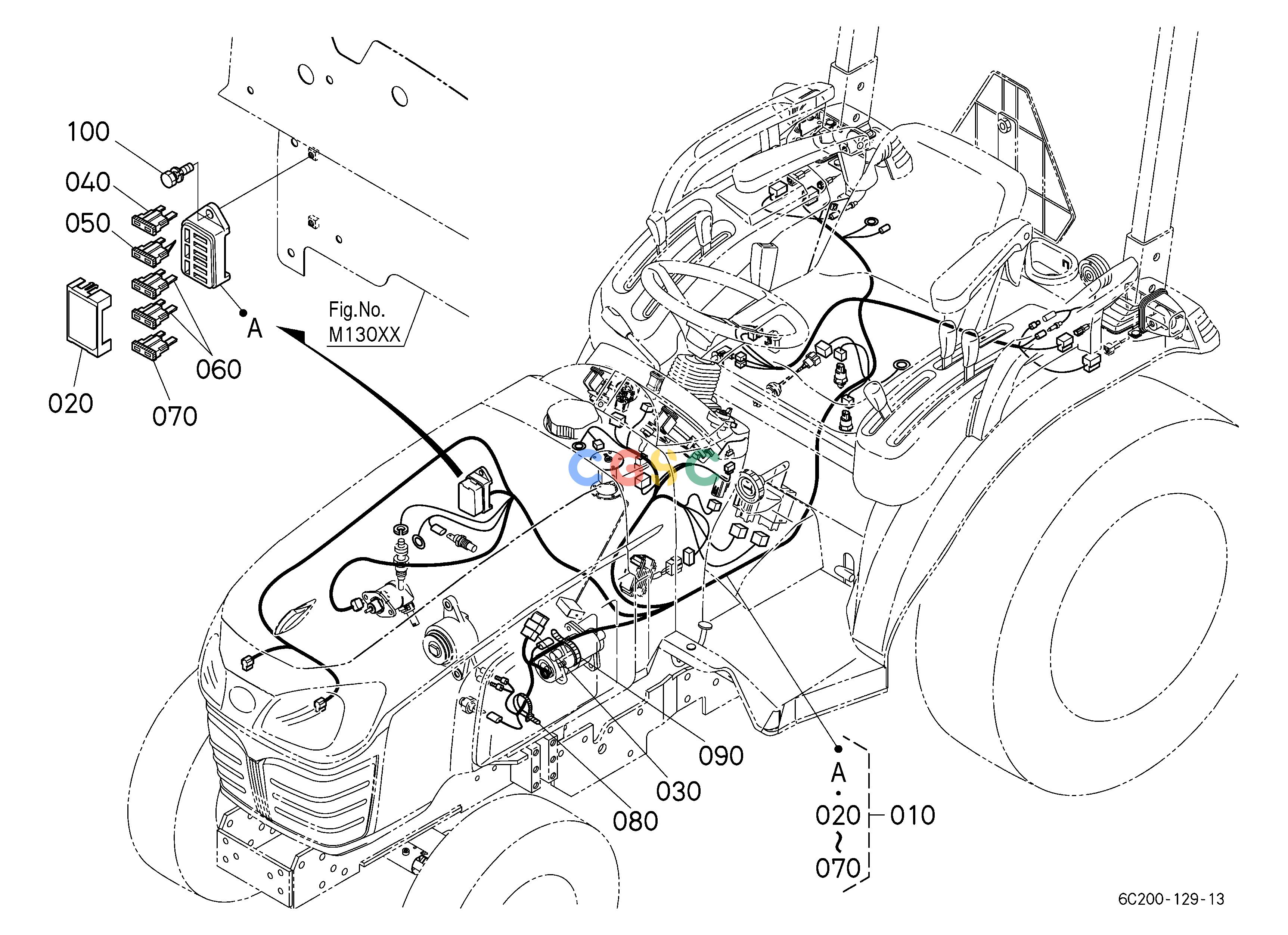

久保田零件查询B50102 ELECTRICAL WIRING ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20030402
|
[1] |
ASSY WIRE HARNESS
|
2.9700(lbs); 1.350
|
| 020. |
6C20030430
|
[1] |
COVER,FUSE CASE
|
0.0176(lbs); 0.008
|
| 030. |
1G11165720
|
[1] |
FUSE
|
0.0198(lbs); 0.009
|
| 040. |
6642680010
|
[2] |
FUSE,AUTO
|
0.0220(lbs); 0.010
|
| 050. |
4810055880
|
[2] |
FUSE,AUTO
|
0.0220(lbs); 0.010
|
| 060. |
3691956650
|
[3] |
FUSE
|
0.0044(lbs); 0.002
|
| 070. |
5230041630
|
[1] |
FUSE,AUTO
|
0.0220(lbs); 0.010
|
| 080. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 090. |
5531141260
|
[1] |
BAND,CORD
|
0.0154(lbs); 0.007
|
| 100. |
0120250620
|
[2] |
BOLT,SEMS(PHILLIPS)
|
0.0154(lbs); 0.007
|
