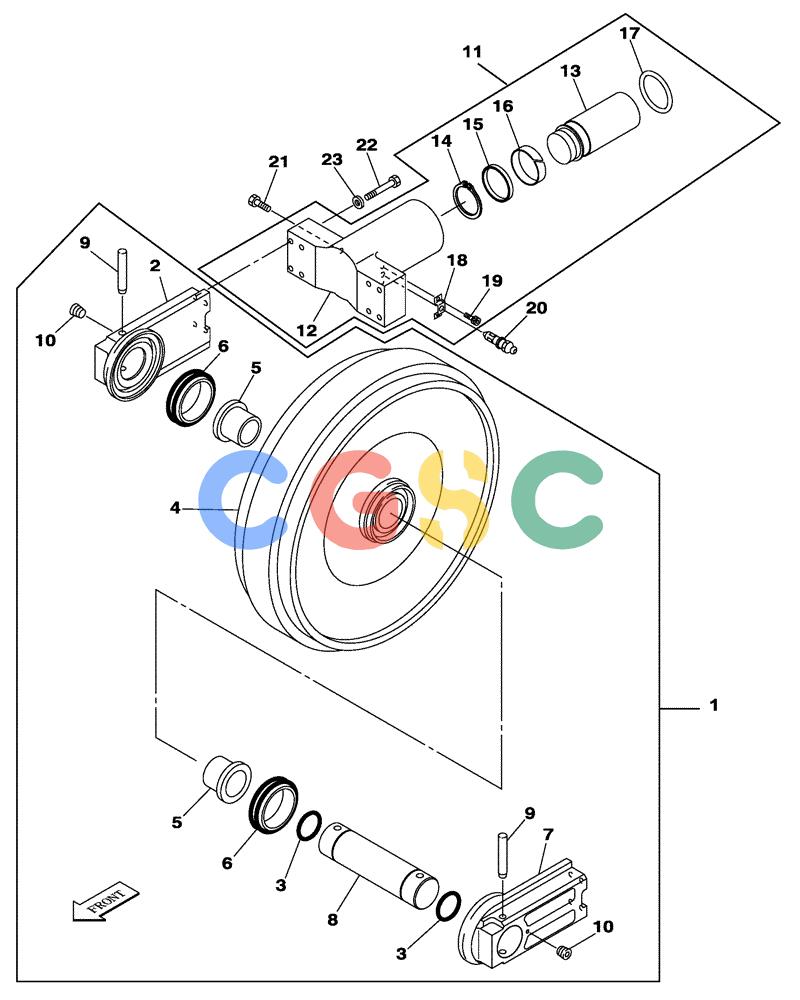

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (05-004-00[01]) - GUIDE PULLEY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
919 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUA10110 | [2] | FLEETING PULLEY | SUM |
| 2. | KUA10130 | [1] | SUPPORT | SUM |
| 3. | CAD0064 | [2] | O-RING | SUM Superseded by part number: 154759A1 |
| 4. | KUA10120 | [1] | FLEETING PULLEY | SUM |
| 5. | KUA0341 | [2] | BUSHING | SUM |
| 6. | KUA0342 | [2] | SEAL | SUM |
| 7. | KUA10140 | [1] | SUPPORT | SUM |
| 8. | KWA0033 | [1] | PIN | SUM |
| 9. | KWA0034 | [2.] | PIN | SUM |
| 10. | 150821A1 | [2] | PLUG | SUM |
| 11. | KUA0275 | [2] | CYLINDER ASSY. | SUM |
| 12. | KUA0201 | [1] | YOKE | SUM |
| 13. | KUA0202 | [1] | PISTON ROD | SUM |
| 14. | KUA0203 | [1] | CIRCLIP,Ext | SUM |
| 15. | KUA0204 | [1] | SEAL | SUM |
| 16. | KUA0205 | [1] | RING | SUM |
| 17. | KUA0206 | [1] | RING | SUM |
| 18. | KUA0219 | [1] | COVER PLATE | SUM |
| 19. | KUA0220 | [2] | BOLT | SUM |
| 20. | 150107A1 | [2] | LUBE NIPPLE | SUM |
| 21. | KUA0111 | [2] | BOLT | SUM |
| 22. | 102R020Y140R | [16] | BOLT | SUMM20 x 140 |
| 23. | 150817A1 | [16] | WASHER,21mm ID x 40mm OD x 4.5mm Thk | SUMW20 |
