纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (05-003-00[01]) - ROLLER LOWER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
183 次

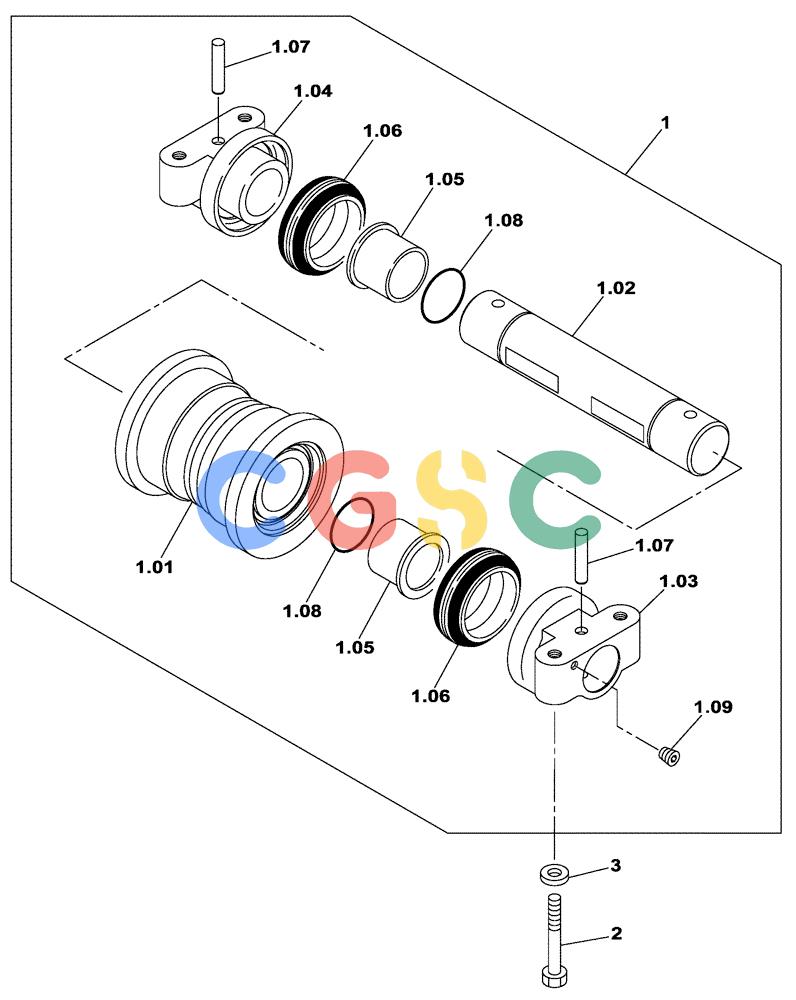

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUA0283 | [18] | ROLLER ASSY. | SUM |
| 1.01. | KUA0300 | [1] | TRACK ROLLER | SUM |
| 1.02. | KUA0301 | [1] | SHAFT | SUM |
| 1.03. | KUA0302 | [1] | BEARING ROLLER CASING | SUM |
| 1.04. | KUA0303 | [1] | BEARING ROLLER CASING | SUM |
| 1.05. | KUA0304 | [2] | SUPPORT | SUM |
| 1.06. | KUA0305 | [2] | ELASTIC JOINT | SUM |
| 1.07. | KUA0306 | [2] | PIN | SUM |
| 1.08. | BLA1265 | [2] | O-RING | SUM Superseded by part number: 154741A1 |
| 1.09. | KUA0311 | [1] | PLUG | SUM |
| 2. | 102R027Y170N | [72] | BOLT | SUMM27 x 170 |
| 3. | 157544A1 | [72] | WASHER | SUMW 27 |
