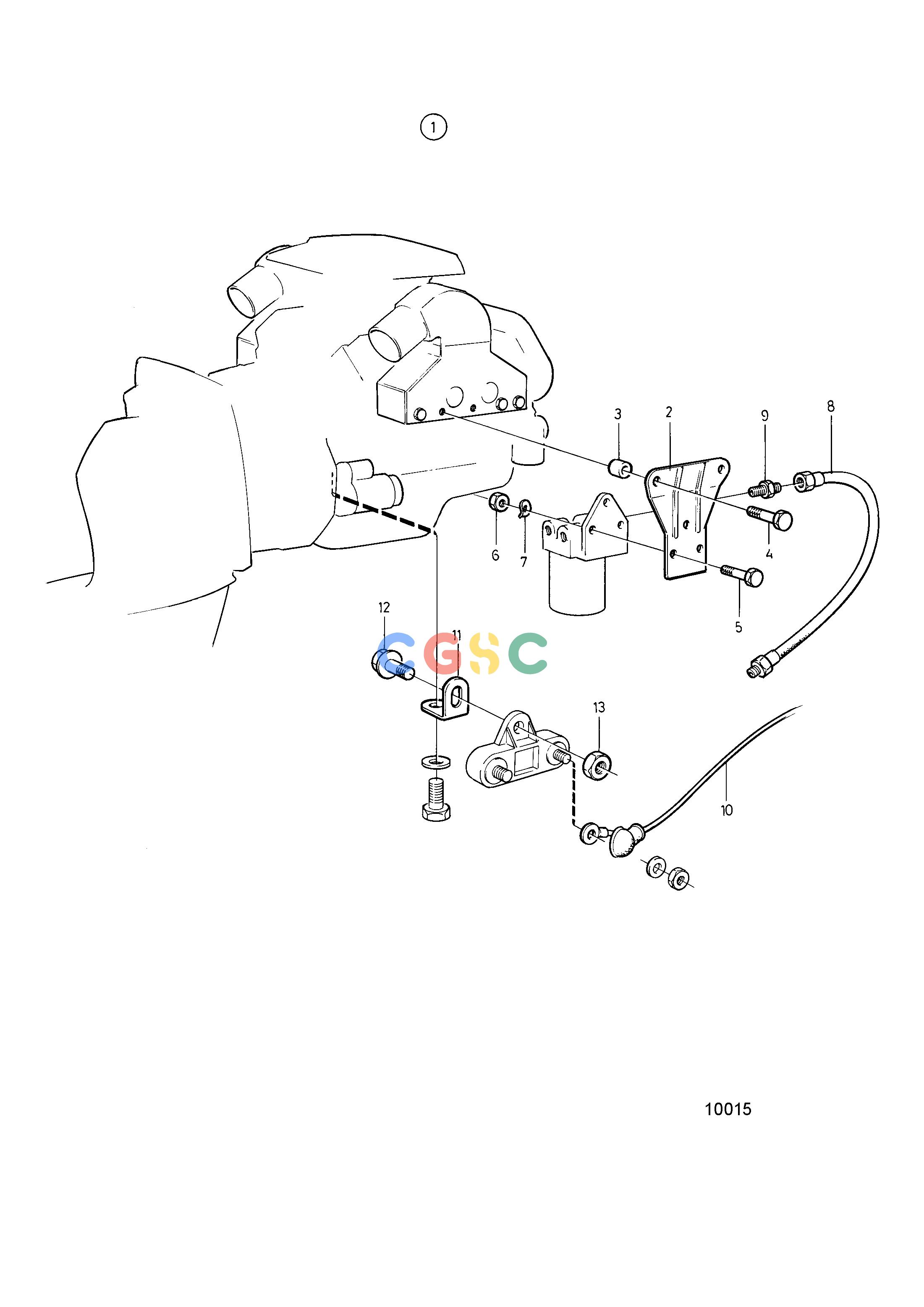

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentMounting Kit, Fresh Water CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
152 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
856763
|
[1] |
Mounting kit
|
|
| 2. |
855570
|
[1] |
Bracket
|
|
| 3. |
821539
|
[2] |
Spacer sleeve
|
|
| 4. |
191652
|
[2] |
Hexagon screw
|
|
| 5. |
955295
|
[3] |
Hexagon screw
|
|
| 6. |
955782
|
[3] |
Hexagon nut
|
|
| 7. |
941907
|
[3] |
Spring washer
|
|
| 8. |
|
|
|
|
| 9. |
954337
|
[1] |
Nipple
|
|
| 10. |
856815
|
[1] |
Cable
|
|
| 11. |
965556
|
[1] |
Bracket
|
|
| 12. |
946544
|
[1] |
Flange screw
|
|
| 13. |
945407
|
[1] |
Flange nut
|
|
