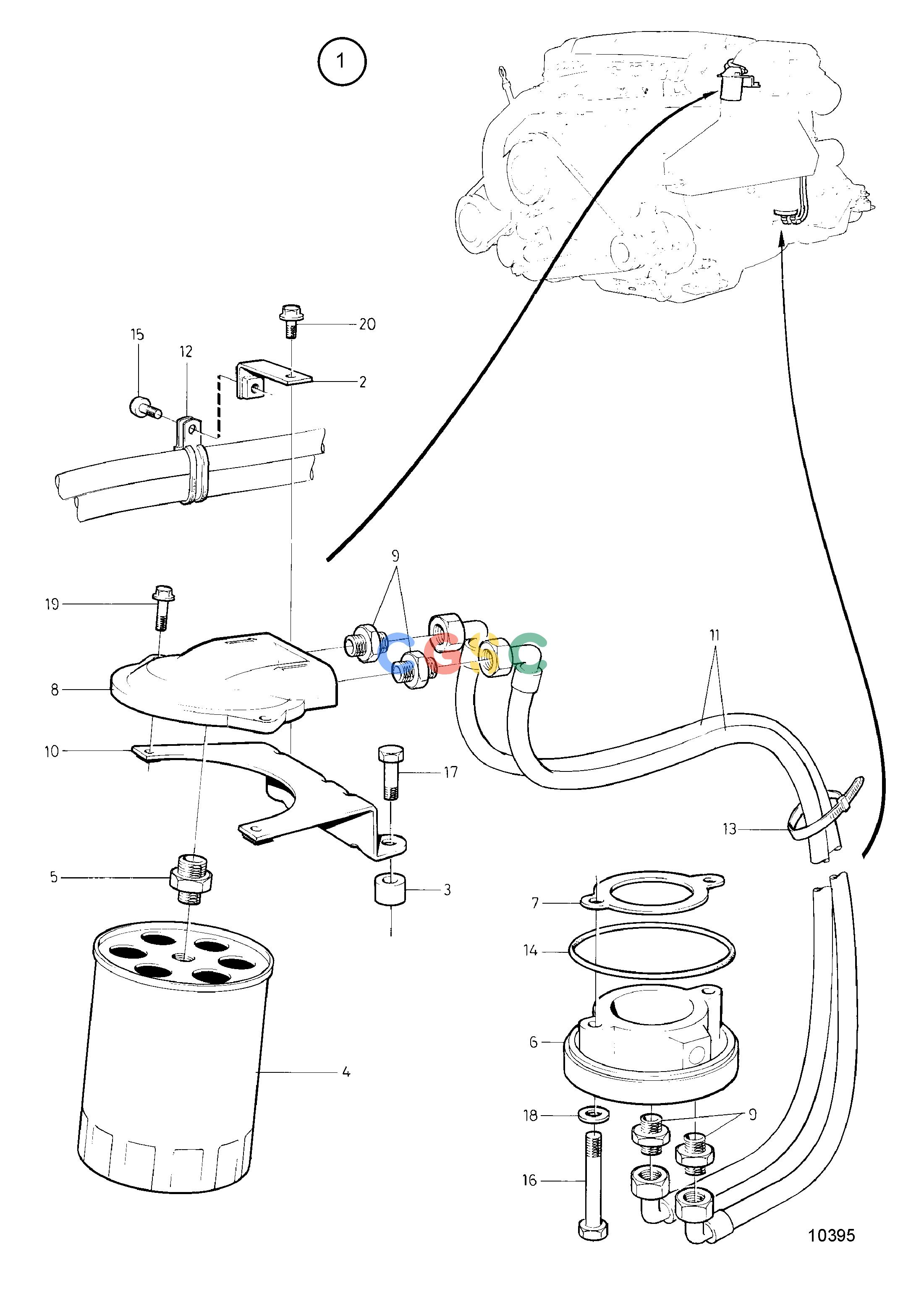

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Miscellaneous EquipmentOil Filter Kit Mounted On Exhaust RiserEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
856929
|
[1] |
Kit
|
|
| 2. |
424288
|
[1] |
Bracket
|
|
| 3. |
807184
|
[2] |
Spacer sleeve
|
|
| 4. |
835440
|
[1] |
Oil filter
|
|
| 5. |
841174
|
[1] |
Filter retainer
|
|
| 6. |
841339
|
[1] |
Connector
|
|
| 7. |
856007
|
[1] |
Gasket
|
|
| 8. |
856265
|
[1] |
Cap
|
|
| 9. |
856793
|
[4] |
Nipple
|
|
| 10. |
856919
|
[1] |
Bracket
|
|
| 11. |
856923
|
[2] |
Oil hose
|
|
| 12. |
941772
|
[1] |
Clamp
|
|
| 13. |
948211
|
[2] |
Cable tie
|
|
| 14. |
948882
|
[1] |
O-ring
|
|
| 15. |
950021
|
[1] |
Cross recessed screw
|
|
| 16. |
955527
|
[2] |
Hexagon screw
|
|
| 17. |
955528
|
[2] |
Hexagon screw
|
|
| 18. |
955894
|
[2] |
Washer
|
|
| 19. |
968886
|
[2] |
Flange screw
|
|
| 20. |
974676
|
[1] |
Flange screw
|
|
